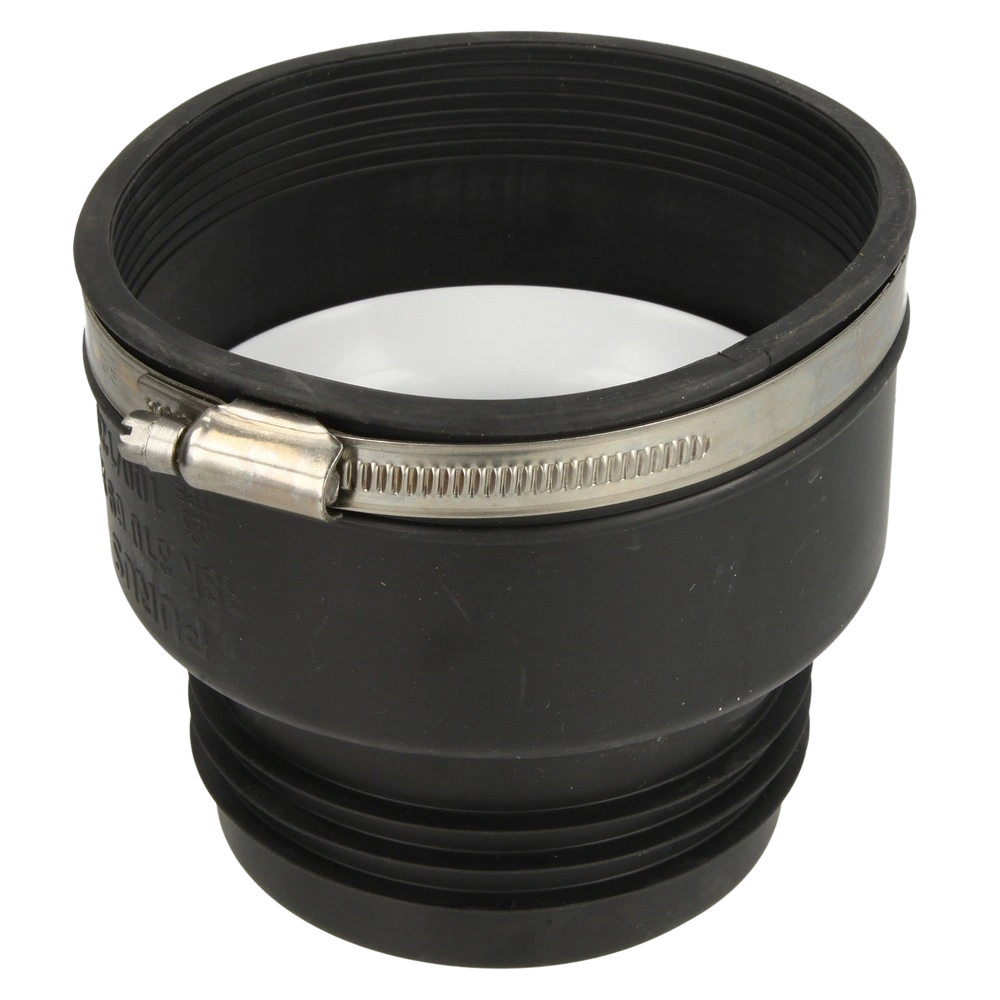

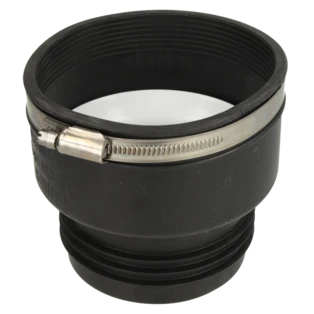

Plug adaptor for riser pipes 100 to 105 and 110 to 116 mm
OEG no.: 805000873
Plug adaptor designed to connect vertical wastewater pipes with the same pipe dimensions but different materials. The adaptor is suitable for all types of wastewater pipes and cleverly compensates for different wall thickness...
All product information Scope of delivery
CE
UV-resistant
Plug adaptor designed to connect vertical wastewater pipes with the same pipe dimensions but different materials. The adaptor is suitable for all types of wastewater pipes and cleverly compensates for different wall thickness. An extended application in the pipe dimensions is achieved by folding up or tearing off the top lip seal.
The seal is suitable for concealed installation and in soil.
| Scope of delivery: | |||
| 1 x | Plug-in adapter | ||
| 1 x | Clamping bracket V2A | ||
For more information see Downloads
| OEG no. | 805000873 |
| Connection size: | 100 .. 105 mm, 110 .. 116 mm |
| Total length [mm]: | 115 |
| Temperature range [°C]: | -60 .. 140 |
| Mounting type: | Flush-mounted, Ground, Vertical |
| Vacuum max. [mbar]: | 300 |
| Operating pressure [bar]: | 0.5 |
| Seal: | EPDM, TPE |
| Standard: | DIN EN 681-1, DIN EN 681-2 |
| Type: | CSA 100 |
| Manufacturer | Crassus |
| EAN | 4260182340202 |
| Weight [kg] | 0.3 |
| Notes |
CE
UV-resistant
|
| Customs tariff number | 40169300 (GB) |
