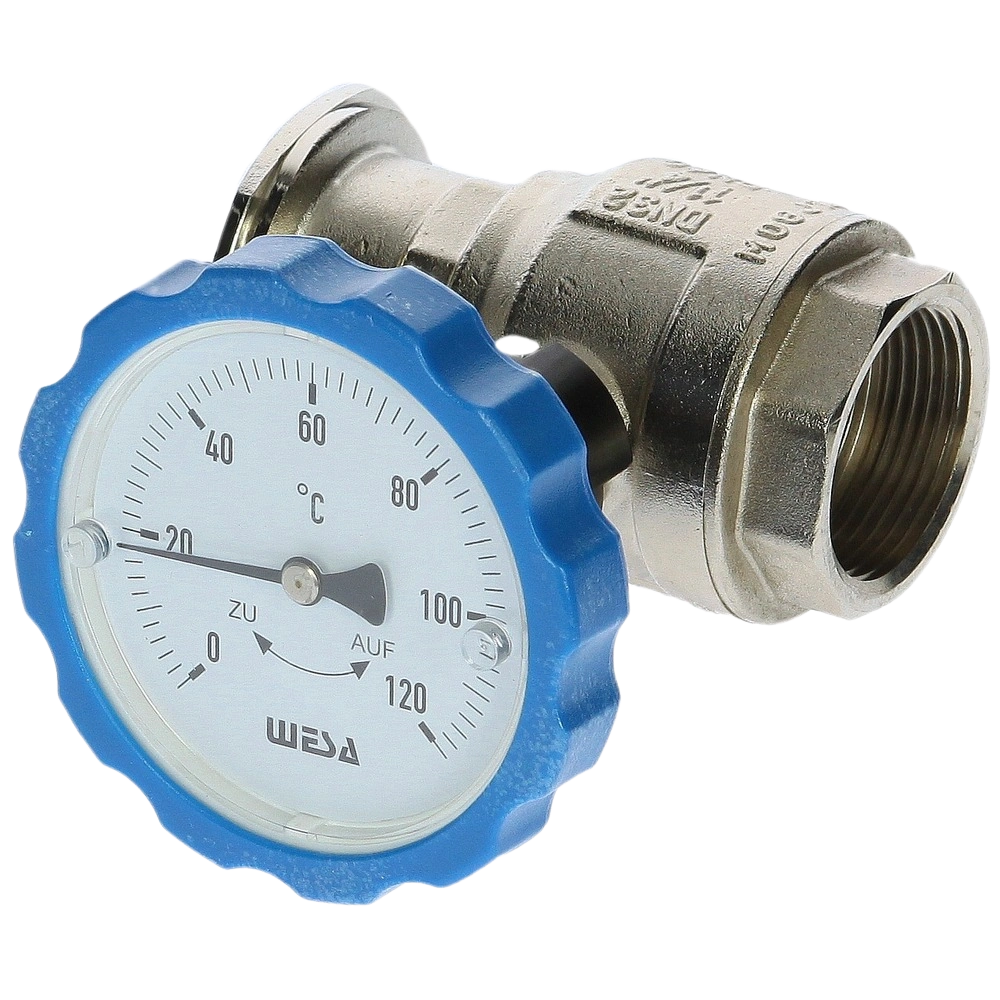

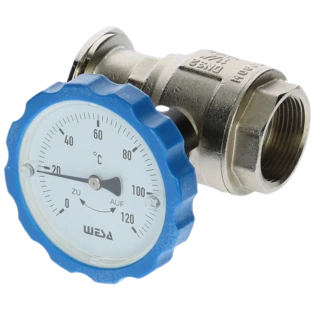

Pump ball valve 1 1/4" with thermometer handle 1092B
OEG no.: 512270573
Pump ball valve for 2" union nut with thermometer for the connection of a DN32 circulation pump.
Note: Union nut not included.
All product informationPump ball valve for 2" union nut with thermometer for the connection of a DN32 circulation pump.
Note: Union nut not included.
| OEG no. | 512270573 |
| Type: | ISO-Therm |
| Colour: |
 Blue
|
| Type of connection: | Female thread | flange |
| Connection size: | 1¼" IT |
| Suitable for screw connection: | 2" union nut |
| Design: | With thermometer handle |
| Temperature range [°C]: | -20 .. 120 |
| Nominal pressure PN [bar]: | 40 |
| Material: | Nickel-plated brass |
| Manufacturer | Wesa-Armaturen |
| Manufacturer number | 1092B |
| Weight [kg] | 1.17 |
| Customs tariff number | 84818081 (CN) |
Question
(Connection size: 1" IT | Colour: Red | Design: With thermometer handle)
Bonjour, Quelle est la longueur de cette vanne en 1" s'il vous plaît? Cordialement
Answer OEG:
86 mm
Question
(Connection size: 1" IT | Colour: Red | Design: With thermometer handle and gravity brake)
Bonjour, quelles sont les dimensions de la vanne
Answer OEG:
Les dimensions sont les suivantes : Longueur x hauteur x diamètre de la poignée du thermomètre
86 mm x 120 mm x 90 mm
