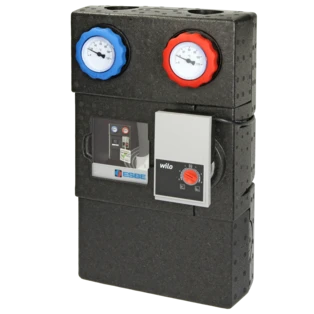

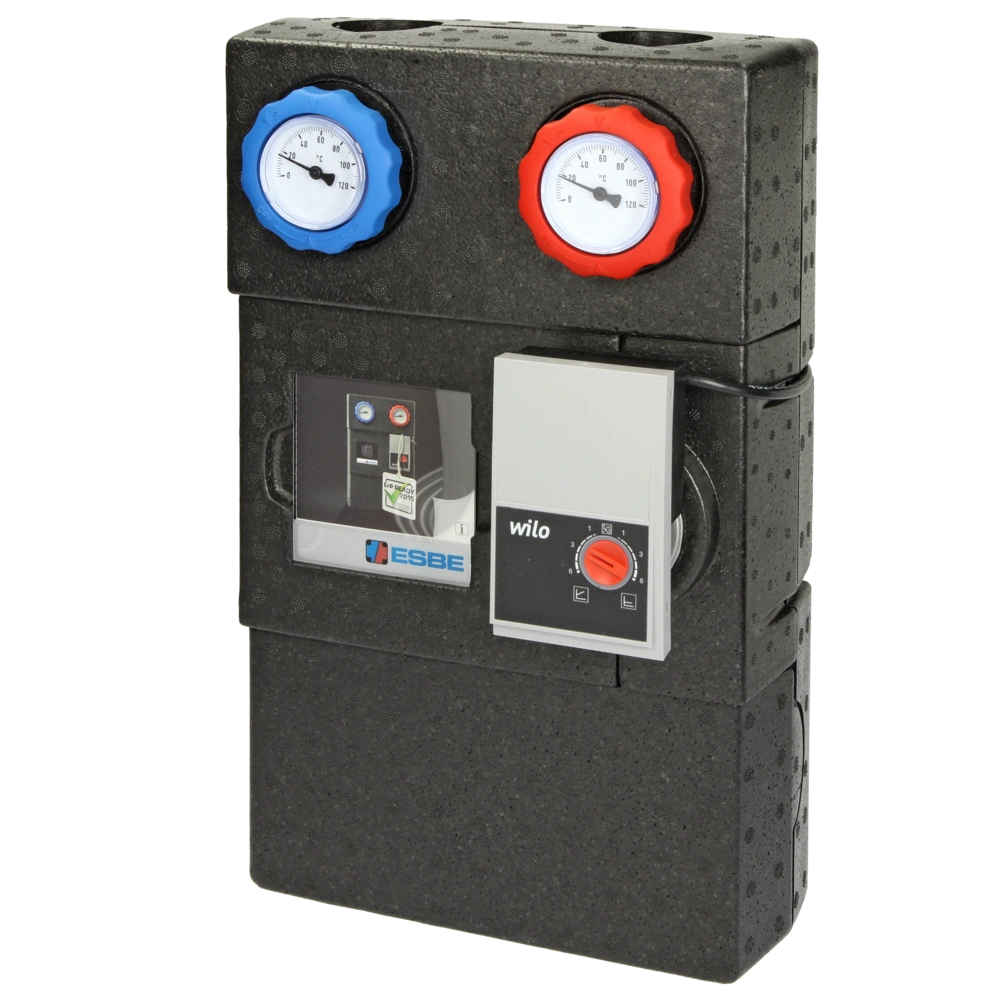

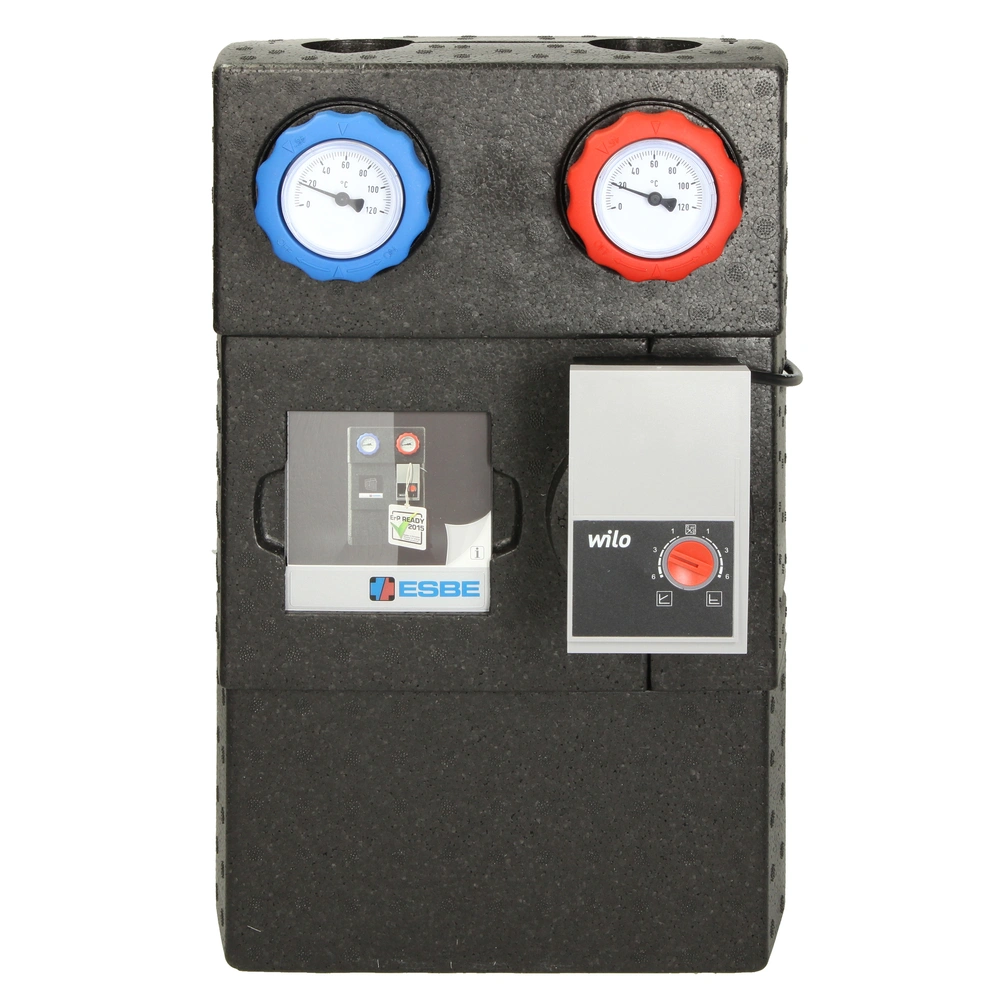

Unmixed pump group for direct supply of a heating or cooling circuit. The powerful ErP-Ready circulation pump and the insulation without ventilation slots ensure the energy is transferred as efficiently as possible...
All product information Scope of delivery
CE
EAC
Unmixed pump group for direct supply of a heating or cooling circuit. The powerful ErP-Ready circulation pump and the insulation without ventilation slots ensure the energy is transferred as efficiently as possible. The Wilo pump can be set to constant speed and to variable or constant pressure.
The group also contains two shut-off valves with thermometers and a check valve.
| Scope of delivery: | |||
| 1 x | circulation pump | ||
For more information see Downloads
| OEG no. | 512245114 |
| Connection heating circuit: | 1" IT |
| Connection boiler circuit: | 1 1/2" ET |
| Nominal size [DN]: | 25 |
| Pressure stage PN [bar]: | 10 |
| Media temperature [°C]: | 5 .. 110 |
| Ambient temperature [°C]: | 0 .. 50 |
| Voltage [V]: | 230 |
| Power consumption [W]: | 3 .. 45 |
| Axial dimension: | 125 |
| Length x Width x Height [mm]: | 379 x 250 x 146 |
| Protection type [IP]: | X4D |
| Suitable for overall pump length [mm]: | 130 |
| Type: | GDA 211 |
| Manufacturer | ESBE |
| Manufacturer number | 61001100 |
| Weight [kg] | 0.5 |
| Notes |
CE
EAC
|
| Customs tariff number | 84136080 (SE) |
