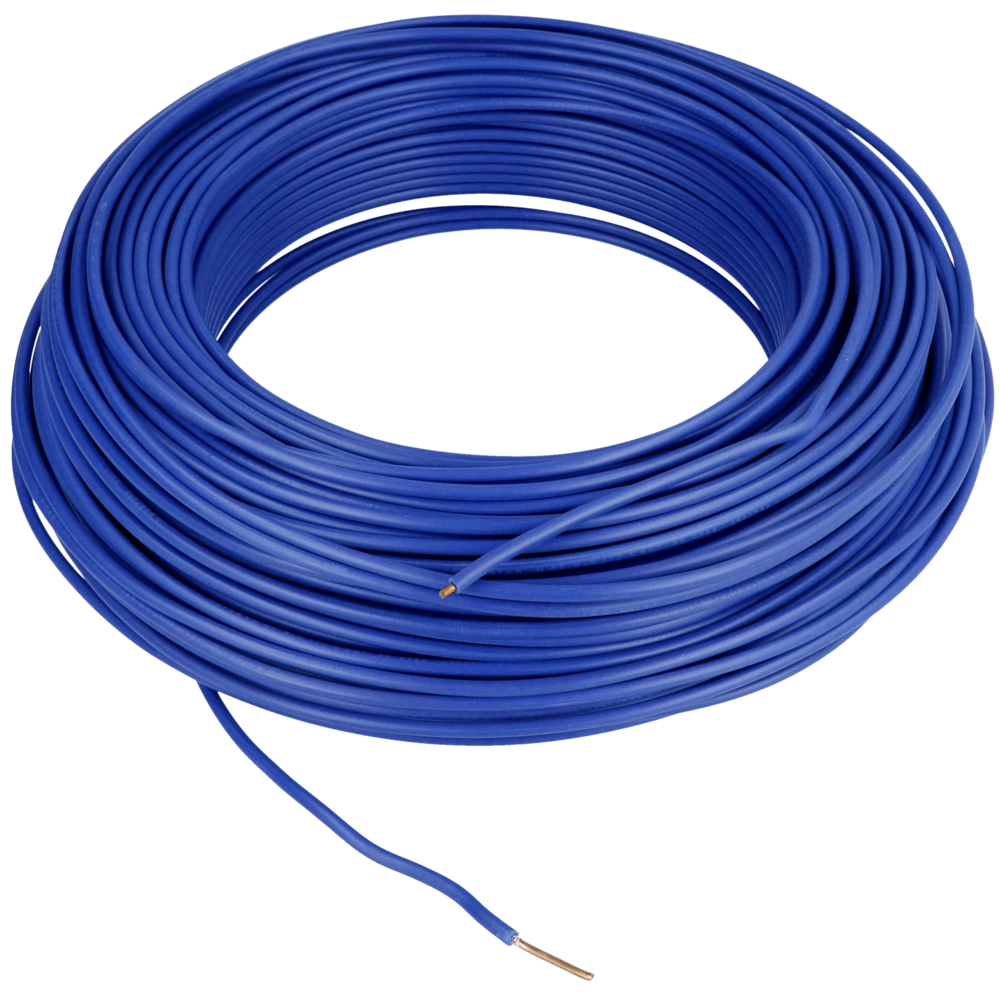

PVC-insulated single-core cable 1 x 1.5 mm² H07V-U
OEG no.: 701000511
PVC-insulated cable for internal wiring of devices, switchgear and distribution boards or for protected installation in luminaires.
The single-wired conductors comply with Class 1 according to DIN EN 60228.
All product informationRelated products
PU
CE
EAC
PVC-insulated cable for internal wiring of devices, switchgear and distribution boards or for protected installation in luminaires.
The single-wired conductors comply with Class 1 according to DIN EN 60228.
| OEG no. | 701000511 |
| PU | 100 m ring |
| Wire cross-section [mm²]: | 1.5 |
| Wire identification: | H07V-U 1 x 1.5 |
| Colour: |
 Blue
|
| Copper content [kg/km]: | 14.4 |
| Outer diameter [mm]: | 2.8 |
| Standard: | EN 50525-2-31 |
| Temperature range static [°C]: | -40 .. 70 |
| Number of cores: | 1 |
| Rated voltage Uo/U [V]: | 450 / 750 |
| Conductor category: | 1 |
| Cable construction: | Single-wire |
| Test voltage [V]: | 2,500 |
| Material: | Copper bright |
| Insulation: | PVC |
| Temperature range moving [°C]: | 5 .. 70 |
| PU: | 0285-525-2-31 |
| EAN | 4051242012500 |
| Weight [kg] | 1.99 |
| Notes |
PU
CE
EAC
|
| Customs tariff number | 85444995 |
