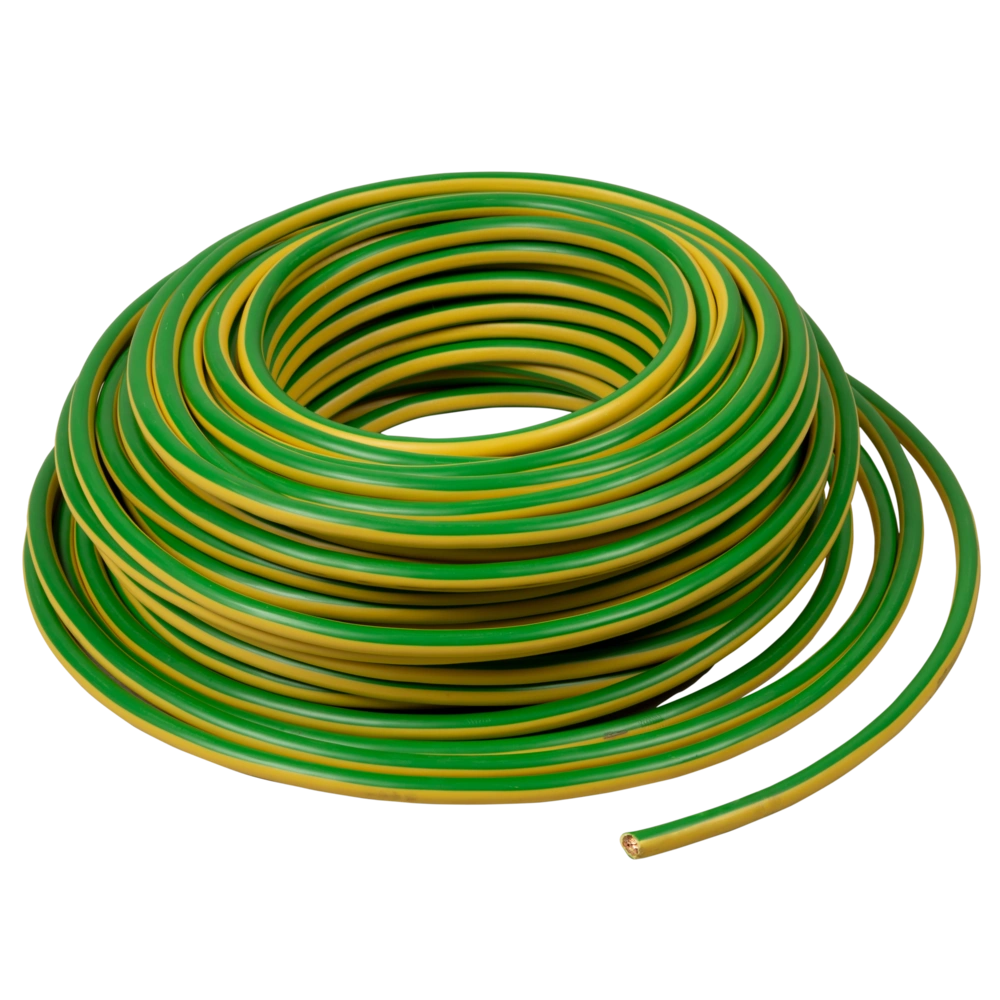

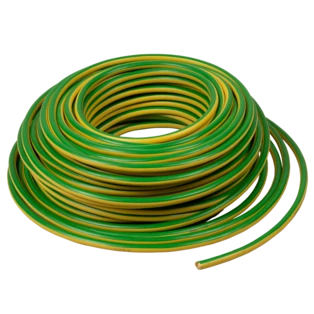

PVC-insulated single-core wire 1 x 50 mm² H07V-R
OEG no.: 701000860
PVC-insulated cable for internal wiring of devices, switchboards, distribution boards and for protected installation in luminaires with a rated voltage of up to 750 V.
The stranded conductors comply with Class 2 according to DIN EN 60228...
All product informationRelated products
PVC-insulated cable for internal wiring of devices, switchboards, distribution boards and for protected installation in luminaires with a rated voltage of up to 750 V.
The stranded conductors comply with Class 2 according to DIN EN 60228.
| OEG no. | 701000860 |
| PU | 50 m ring |
| Wire cross-section [mm²]: | 50 |
| Wire identification: | H07V-R 1 x 50 |
| Colour: |
 Green-yellow
|
| Copper content [kg/km]: | 480 |
| Outer diameter [mm]: | 11.2 |
| Temperature range static [°C]: | -30 .. 70 |
| Number of cores: | 1 |
| Rated voltage Uo/U [V]: | 450 / 750 |
| Conductor category: | 2 |
| Cable construction: | Stranded |
| Test voltage [V]: | 2,500 |
| Material: | Copper bright |
| Insulation: | PVC |
| Temperature range moving [°C]: | -5 .. 70 |
| PU: | 0285-525-2-31 |
| Weight [kg] | 9 |
| Notes | |
| Customs tariff number | 85444995 |
