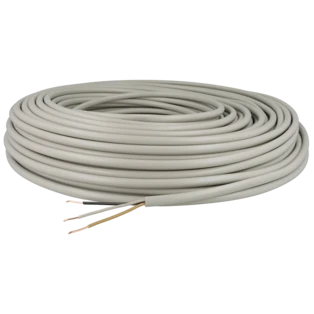

Installation cable without protective conductor for laying in dry and damp rooms. If protected from direct sunlight, the cable can also be used outdoors. The copper conductors are bare and stranded in layers in the filler sheath.
All product informationRelated products
Installation cable without protective conductor for laying in dry and damp rooms. If protected from direct sunlight, the cable can also be used outdoors. The copper conductors are bare and stranded in layers in the filler sheath.
| OEG no. | 701001592 |
| PU | 50 metres |
| Number of cores: | 3 |
| Wire cross-section [mm²]: | 1.5 |
| Protective conductor: | No |
| Test voltage [V]: | 2,000 |
| Rated voltage [V]: | 300/500 |
| Insulation: | PVC |
| DIN: | VDE 0293 |
| Temperature range static [°C]: | -40 .. 70 |
| Temperature range moving [°C]: | 5 .. 70 |
| Weight [kg] | 5.9 |
| Customs tariff number | 85444995 (EEC) |
