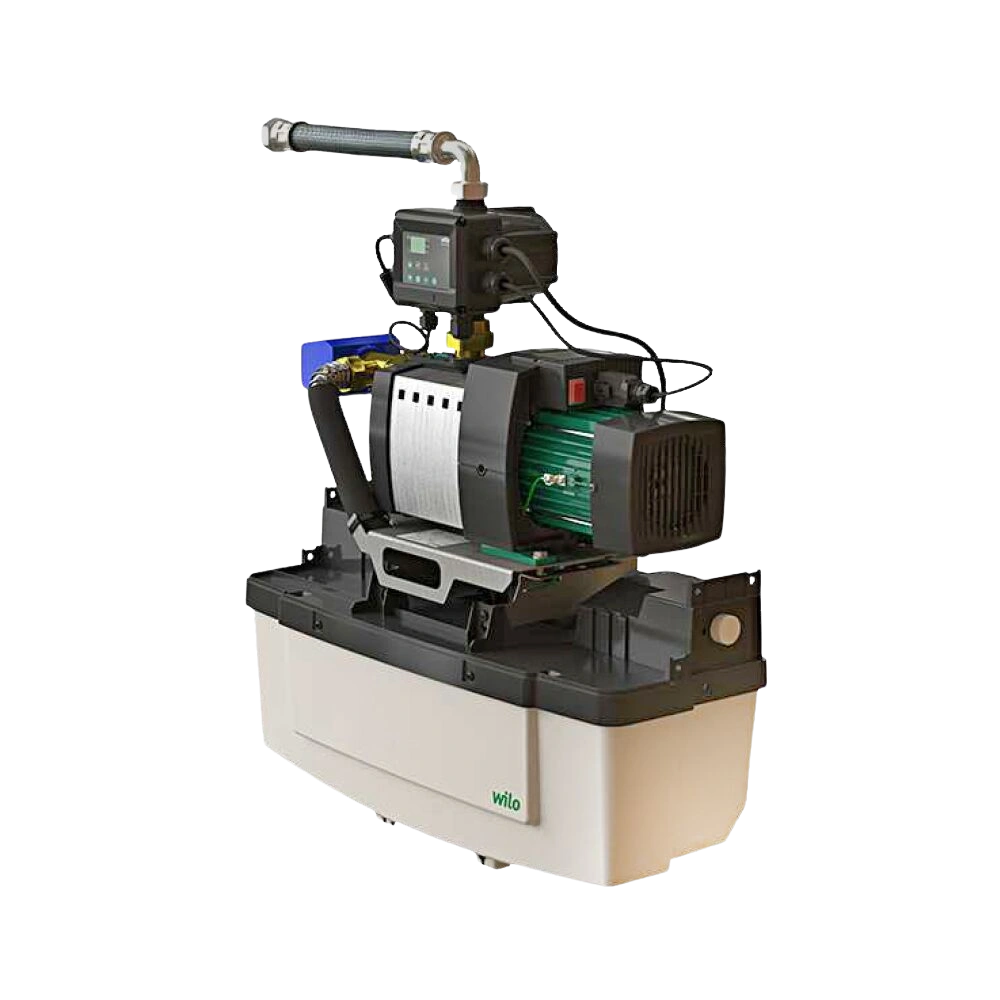

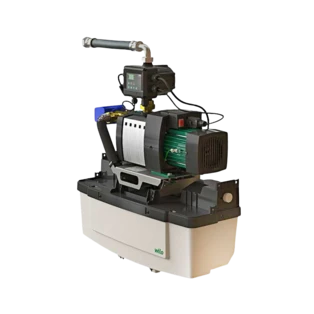

Rainnwater utilisation system RAIN1-24 EM 2551468
OEG no.: 515000010
The Rain 1-24 EM rainwater utilisation system conveys rain water from a cistern to the tapping points. It is used for operating toilet flushes, washing machines as well as for garden irrigation and...
All product information Scope of deliveryRelated products
The Rain 1-24 EM rainwater utilisation system conveys rain water from a cistern to the tapping points. It is used for operating toilet flushes, washing machines as well as for garden irrigation and sprinkling by saving money with your own water. If there is not enough water, the system automatically switches over to an integrated auxiliary tank which is connected to the tap water supply. Operational safety is always guaranteed thereby.
| Scope of delivery: | |||
| 1 x | Fastening material | ||
| 1 x | assembly sketch | ||
| 1 x | installation and operating instructions | ||
| 1 x | ready-to-connect single-pump rainwater utilisation system | ||
For more information see Downloads
| OEG no. | 515000010 |
| Design: | RAIN1-24 EM |
| Delivery head [m]: | 8 |
| Voltage [V]: | 230 |
| Rated current [A]: | 3.3 |
| Motor power [kW]: | 0.4 |
| Connection: | 1" |
| Length x Width x Height [mm]: | 682 x 414 x 672 |
| Ambient temperature [°C]: | 40 |
| Operating pressure max. [bar]: | 8 |
| Media temperature [°C]: | 3 .. 30 |
| Protection type [IP]: |
 IPX4
|
| Manufacturer | Wilo |
| Manufacturer number | 2551468 |
| EAN | 4048482967912 |
| Weight [kg] | 25 |
| Customs tariff number | 90328900 |
Question
Guten tag, können Sie uns bitte die passende Pumpe als Ersatzteil anbieten?
Answer OEG:
Finden sie im Onlineshop unter Artikelnummer Wilo garden pump HiMulti 3-24 P 640 watts
