OEG no. : 515000012
Related products
The Rain3 rainwater utilisation system is suitable for the water supply in the garden or for toilet cisterns. The ready-to-plug-in system ensures easy installation...
All product information Scope of deliveryRelated products
Delivery by forwarding agency

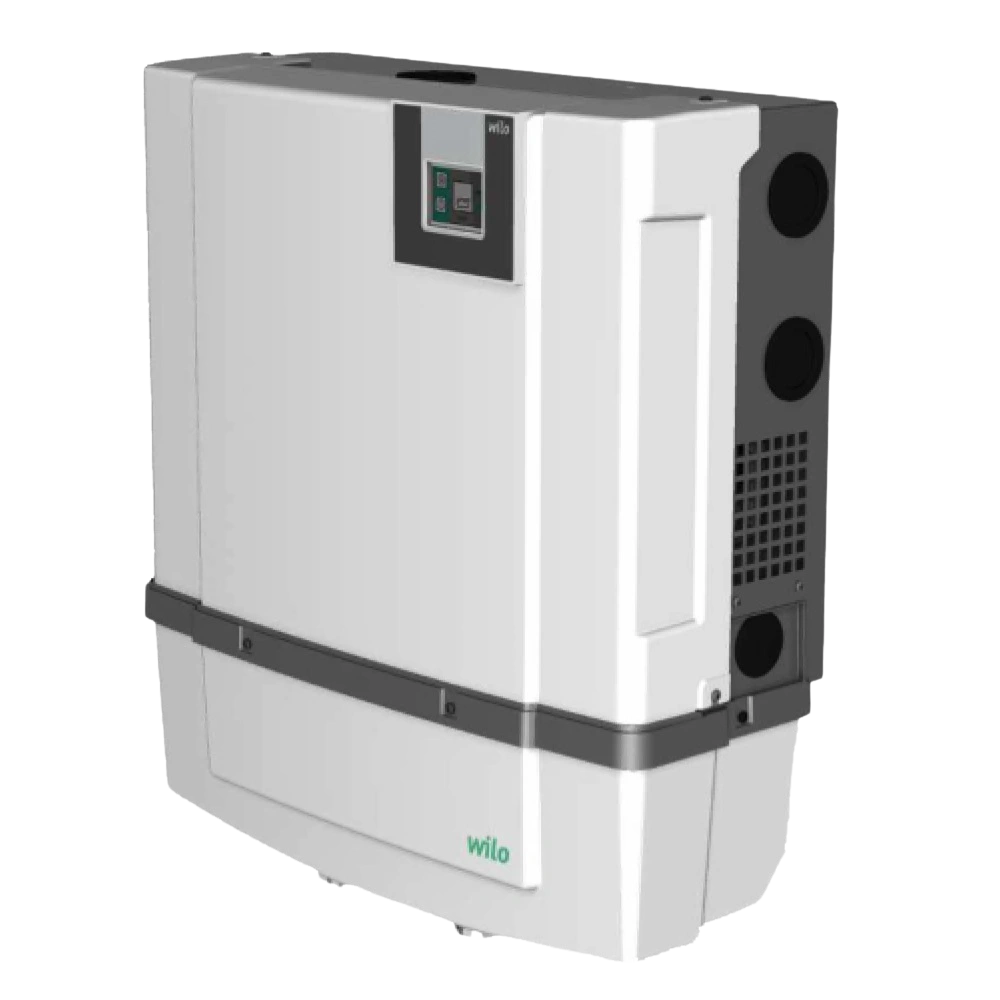

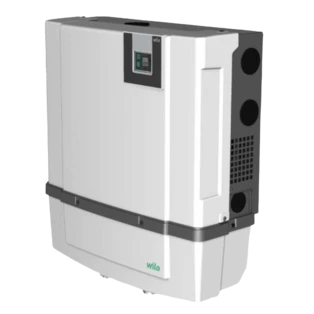

The Rain3 rainwater utilisation system is suitable for the water supply in the garden or for toilet cisterns. The ready-to-plug-in system ensures easy installation. The comfortable control unit allows for sn intuitive operation and high reliability thanks to integrated self-protection routine. Equipped with vibration dampers and lids on the front and back side the centrifugal pump runs particularly quietly. Installation inside residential buildings is, therefore, no problem.
| Scope of delivery: | |||
| 1 x | ready-to-connect single-pump rainwater utilisation system | ||
| 1 x | connection cable 3 m | ||
| 1 x | central switchgear with control electronics | ||
| 1 x | level sensor with 20 m cable | ||
| 1 x | cover | ||
| 1 x | connection kit for replenishment overflow | ||
For more information see Downloads
| OEG no. | 515000012 |
| Model: | RAIN3-24 EM |
| Delivery head [m]: | 8 |
| Voltage [V]: | 230 |
| Rated current: | 3.30 A |
| Motor power [kW]: | 0.4 |
| Connection: | 1" |
| Dimensions H x W x D [mm]: | 660 x 638 x 393 mm |
| Ambient temperature [°C]: | 40 |
| Operating pressure max. [bar]: | 8 |
| Media temperature [°C]: | 3 .. 30 |
| Protection type [IP]: | X4 |
| Manufacturer | Wilo |
| Manufacturer number | 2551471 |
| EAN | 4048482967943 |
| Weight [kg] | 25 |
| Notes |
Delivery by forwarding agency
|
| Customs tariff number | 90328900 |
