1-pole circuit breaker with tripping characteristics B curve for automatic disconnection of electric circuits in case of a short circuit and for the protection of life-threatening situations caused by insulation faults or dangerous contact voltage...
All product informationRelated products

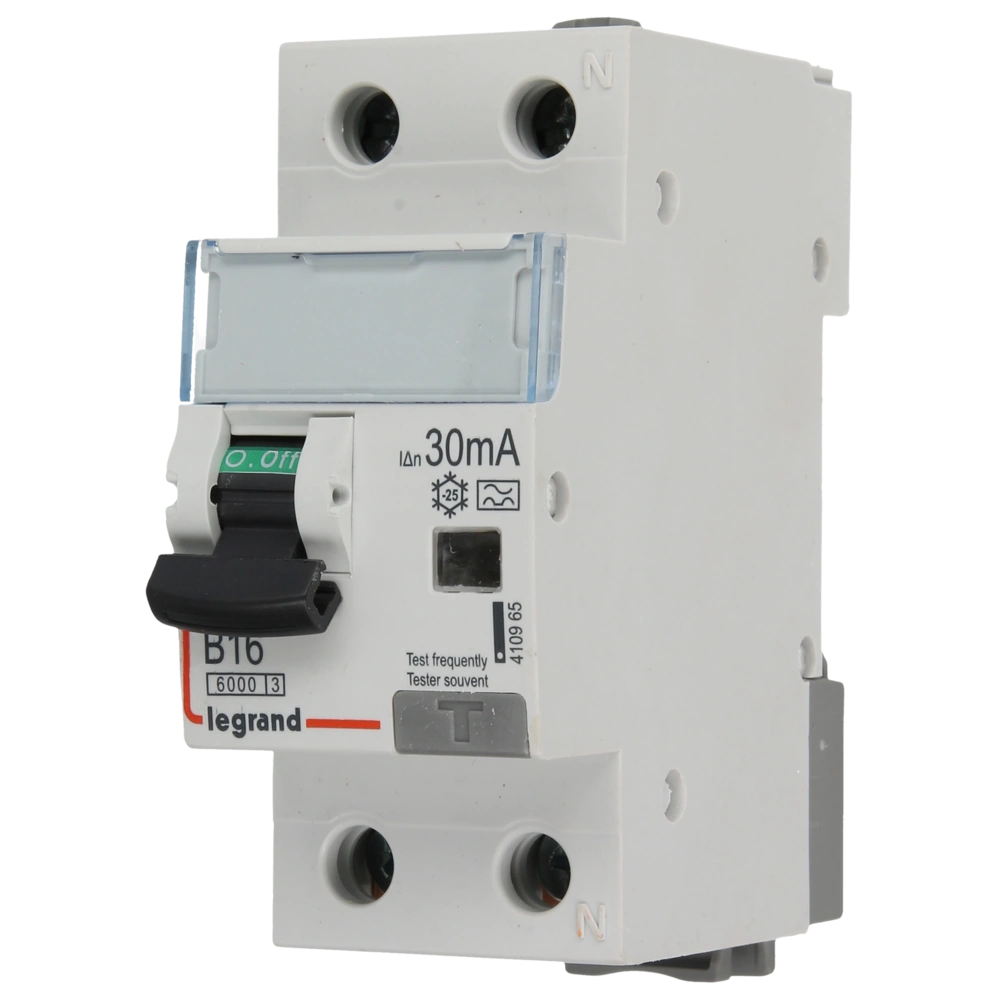

1-pole circuit breaker with tripping characteristics B curve for automatic disconnection of electric circuits in case of a short circuit and for the protection of life-threatening situations caused by insulation faults or dangerous contact voltage.
There is also a disconnection when the wires are in danger due to high current load. Clear switch position indication by red/green marking on the switch.
With transparent window for inserting labels. Fixing by snap-in mechanism on the top-hat rail.
For more information see Downloads
| OEG no. | 711000462 |
| Trigger characteristic: | B |
| Residual current protection type: | A |
| Rated current [A]: | 16 |
| Rated residual current [A]: | 0.03 |
| Neutral conductor: | Yes |
| Voltage [V]: | 230 |
| Number of poles: | 1 |
| Horizontal pitches [HP]: | 2 |
| Type: | RCBO |
| Type: | DX3 |
| Cable cross-section stranded [mm²]: | 0.75 .. 10 |
| Cable cross-section solid [mm²]: | 0.75 .. 16 |
| Protection type: |
 IP20
|
| Installation depth: | 44 |
| Ambient temperature [°C]: | -25 .. 60 |
| Manufacturer | Legrand |
| Manufacturer number | 410965 |
| EAN | 3414970351401 |
| Weight [kg] | 0.24 |
| Customs tariff number | 85362010 |
Is dit artikel een Aardlekschakelaar en als zodanig toegestaan op de Nederlandse markt?
Uit onze gegevens blijkt dat de aardlekschakelaar voor gebruik in Nederland is goedgekeurd. Voor absolute zekerheid m.b.t. toelating dient u contact op te nemen met het lokale nutsbedrijf in uw omgeving.
You have to be logged in to ask a question
04/12/2017, 14:47:17 of: Mr Schulz
gut
gute Kombination, nehme ich für jede Nachinstallation von Stromkreisen
28/09/2016, 16:07:32 of: Mr Feld
gut
Sehr guter Artikel bisher keine Probleme
01/06/2015, 13:23:24 of: Mr Jöhnk
Gut und Preiswert
Ich bin mit Legrand sehr zufrieden ich kaufe die Sachen gerne
