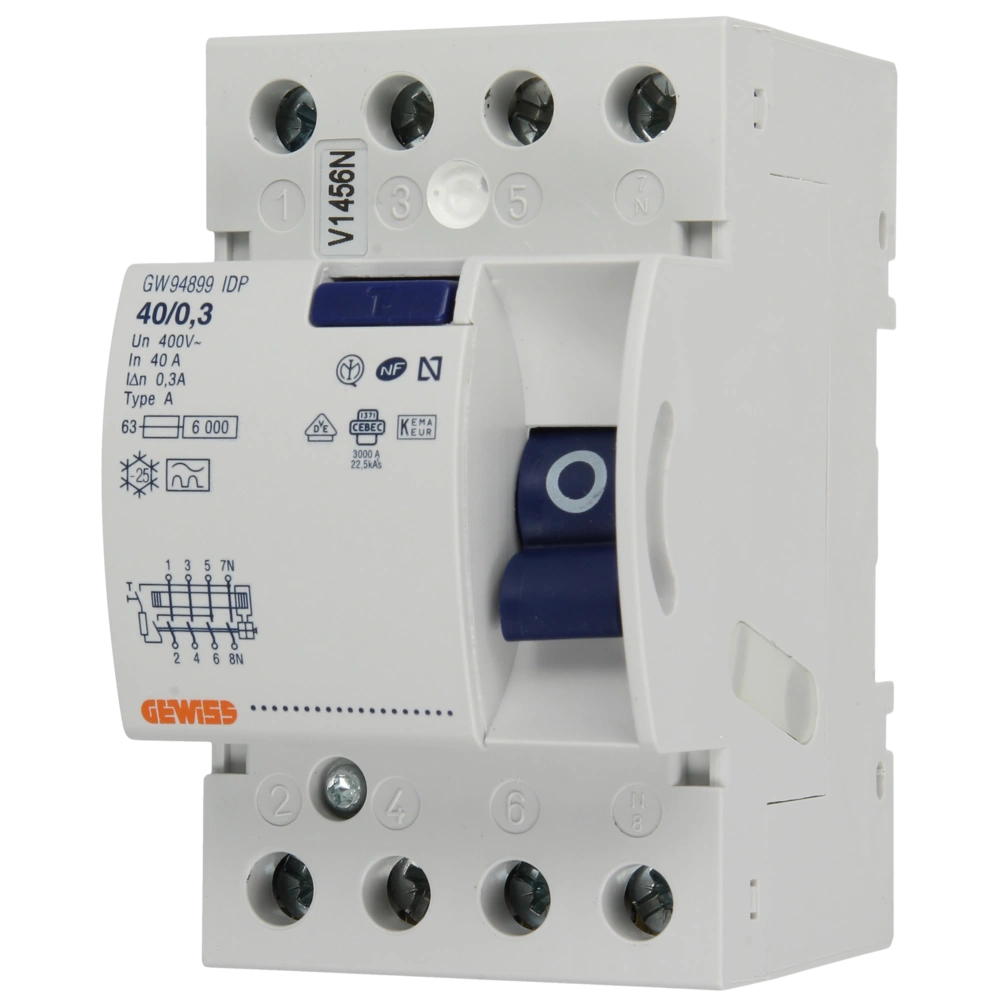

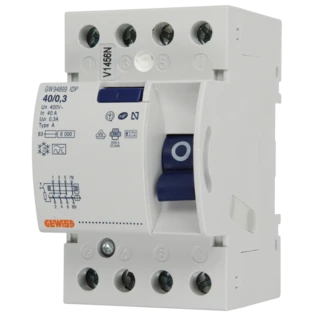

Residual current circuit breaker 40A | 0.3A GW94899
OEG no.: 711002066
4-pole type A RCCB for automatic disconnection of electric circuits as soon as the permitted residual current is exceeded and for the protection against life-threatening situations caused by insulation faults or dangerous contact voltage...
All product information
CE
PU
4-pole type A RCCB for automatic disconnection of electric circuits as soon as the permitted residual current is exceeded and for the protection against life-threatening situations caused by insulation faults or dangerous contact voltage.
The switch is mounted on the top-hat rail.Due to standard pitch, it can be installed quickly and easily.
For more information see Downloads
| OEG no. | 711002066 |
| Residual current protection type: | A |
| Rated current [A]: | 40 |
| Rated residual current [A]: | 0.3 |
| Voltage [V]: | 400 |
| Number of poles: | 4 |
| Horizontal pitches [HP]: | 3 |
| Protection type [IP]: |
 IP20
|
| Manufacturer | GEWISS |
| Herstellernummer | GW94899 |
| EAN | 8011564214460 |
| Weight [kg] | 0.28 |
| Notes |
CE
PU
|
| Customs tariff number | 85362010 (IT) |
Question
(Rated residual current [A]: 0.3 | Number of poles: 2 | Horizontal pitches [HP]: 2)
Bonjour, S'agit-il bien d'un différentiel 40A 300mA ?
Answer OEG:
Bonjour, oui il s´agit bien d´un différentiel.
Question
(Rated residual current [A]: 0.3 | Number of poles: 2 | Horizontal pitches [HP]: 2)
avec quelles barres de connexion ce disjoncteur différentiel se connectet'il aux disjoncteurs tripasés?
Answer OEG:
Bonjour,
Si vous avez un seul appareil, vous n'avez pas besoin d'une barre de connexion.
Pour un appareil, vous le connectez avec des câbles de pontage (p. ex. Wiring bridge set Ø 6 mm² wire-end ferrule on both ends).
Cordialement,
Votre équipe OEG
You have to be logged in to ask a question
03/10/2016, 11:16:12 of: Mr Feld
gut
Produkt zu einem sehr guten Preis
Technical data sheet (PDF)
- 0.15MB
