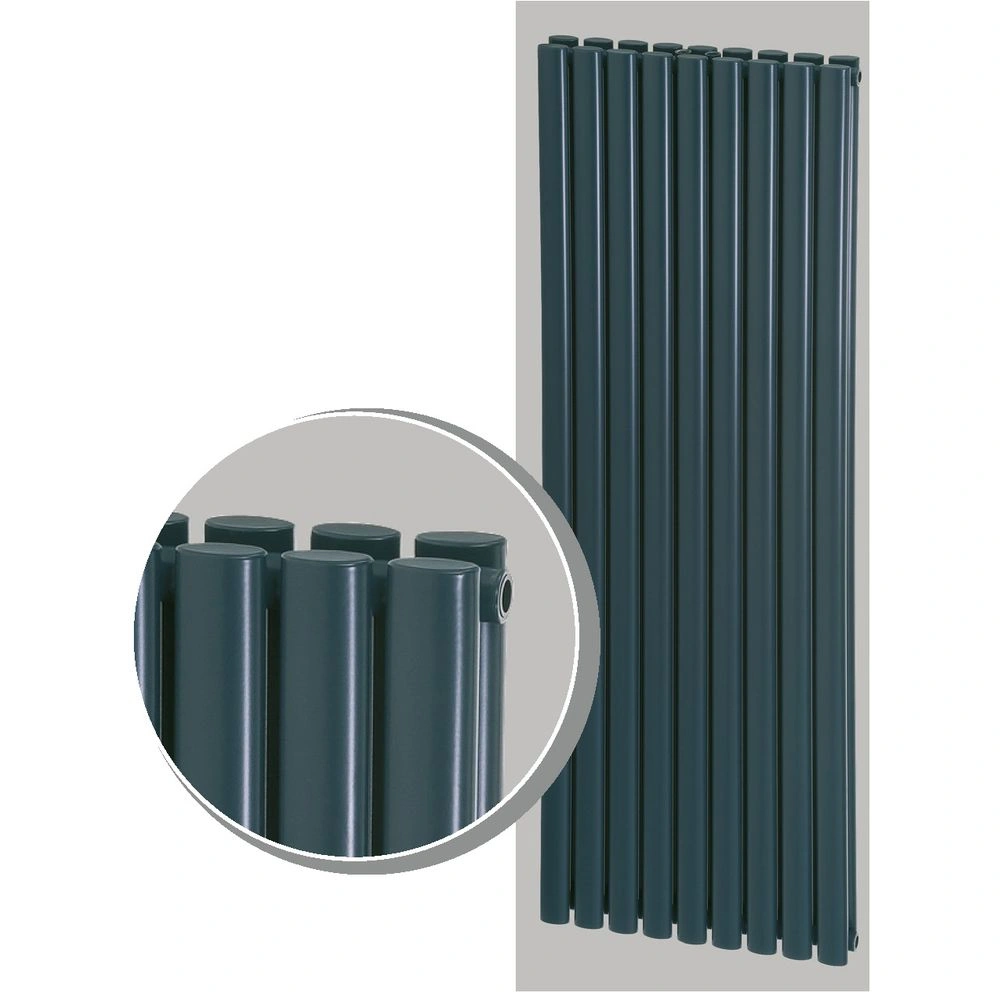

Radiators of the Malden series made of powder-coated steel provide for cosy warmth and comfortable room atmosphere. The design of clear lines and double-layered, wide panels enhances the value of every room...
All product information Scope of delivery
6 years warranty
Delivery by forwarding agency
Radiators of the Malden series made of powder-coated steel provide for cosy warmth and comfortable room atmosphere. The design of clear lines and double-layered, wide panels enhances the value of every room. The performance data refer to a flow temperature of 75 °C, a return temperature of 65 °C and an air temperature of 20 °C. For effective thermal output, the radiator needs a floor clearance of at least 150 mm.
| Scope of delivery: | |||
| 1 x | radiator | ||
| 4 x | Wall holder | ||
For more information see Downloads
| OEG no. | 800024042 |
| Colour: |
 anthracite
|
| Output [W]: | 1,309 |
| Width x Height [mm]: | 527 x 1,900 |
| Axial dimension: | 378 |
| Connection options: | Middle and side |
| Inside micrometer [mm]: | 50 |
| Vertically aligned profiles: | Oval |
| Horizontally aligned profiles: | Round |
| Operating temperature max. [°C]: | 95 |
| Pressure max. [bar]: | 10 |
| Wall distance [mm]: | 61 |
| Connection size [inch]: | 1/2 |
| Weight [kg] | 44.8 |
| Notes |
6 years warranty
Delivery by forwarding agency
|
| Customs tariff number | 73221900 (PL) |
