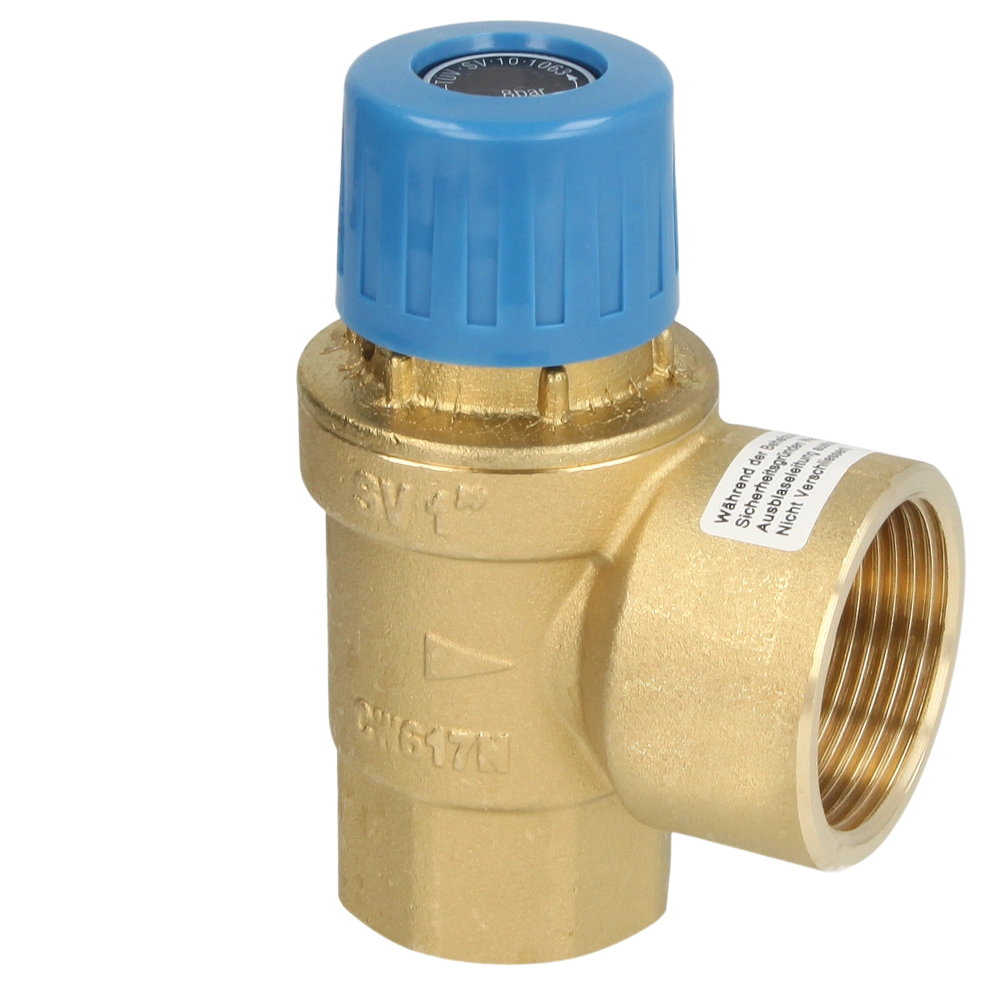

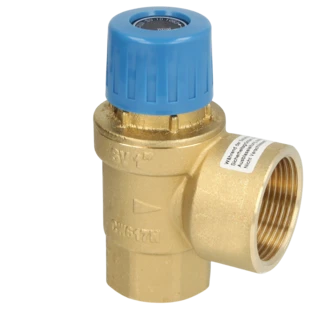

Safety relief valve for drinking water 1" 8 bar
OEG no.: 512240283
Safety relief valve for closed drinking water systems. The response pressure is preset and secured against maladjustment. When the specified pressure value is reached, the valve opens and prevents the...
All product information
Suitable for drinking water
Safety relief valve for closed drinking water systems. The response pressure is preset and secured against maladjustment. When the specified pressure value is reached, the valve opens and prevents the system pressure from rising to dangerous levels by releasing the pressure.
| OEG no. | 512240283 |
| Connection size [inch]: | 1 |
| Pressure [bar]: | 8 |
| Material: | Brass |
| Connection size: | 1" |
| Type of connection: | Female thread |
| Weight [kg] | 0.5 |
| Notes |
Suitable for drinking water
|
| Customs tariff number | 84814090 |
Question
(Pressure [bar]: 6)
Quelle est la température maximal?
Answer OEG:
Température de fonctionnement min./max. : 0 °C / 95 °C. Résistance à la température maximale : 140 °C.
