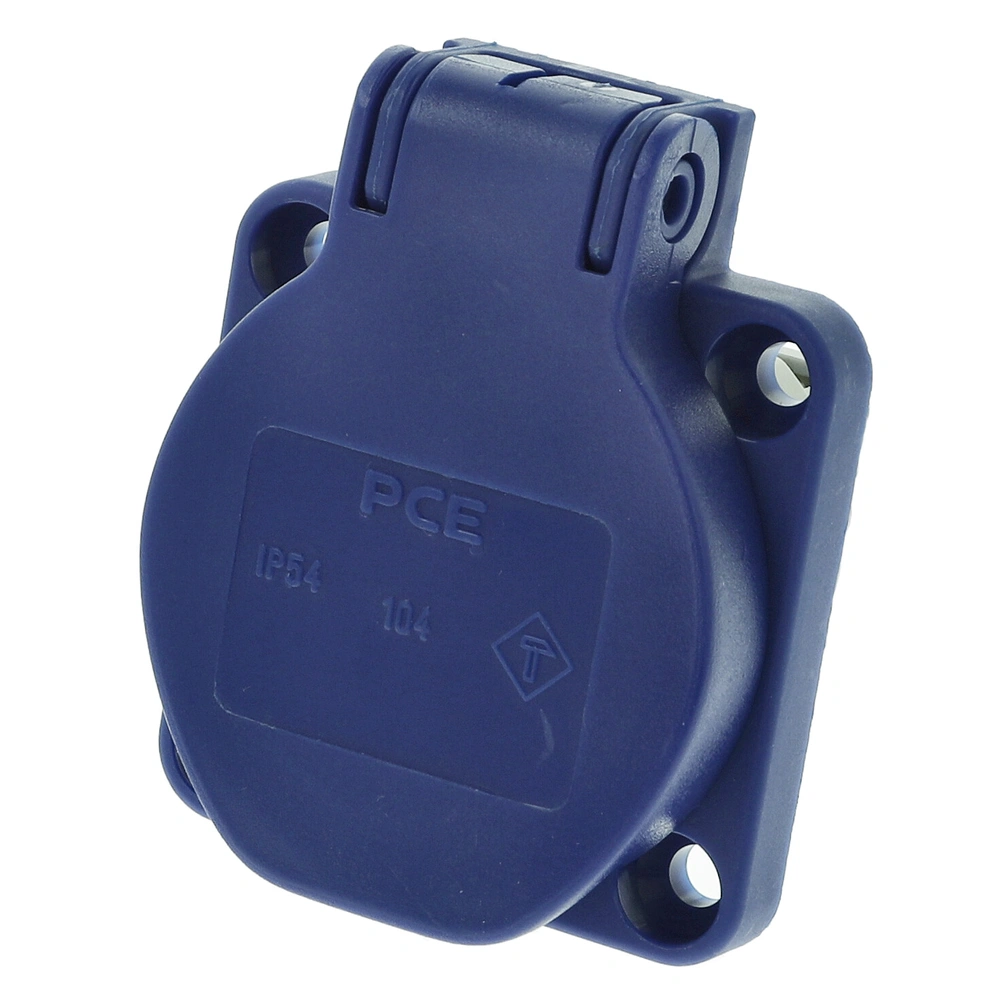

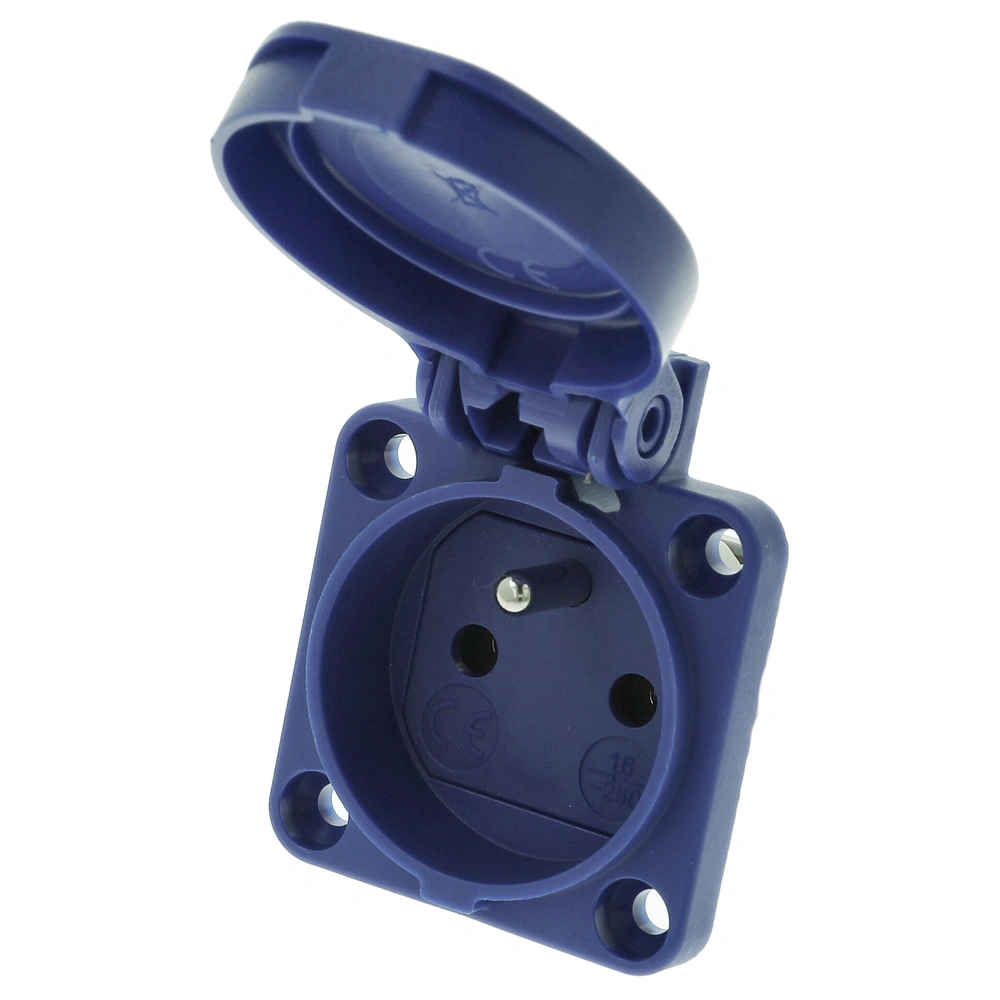

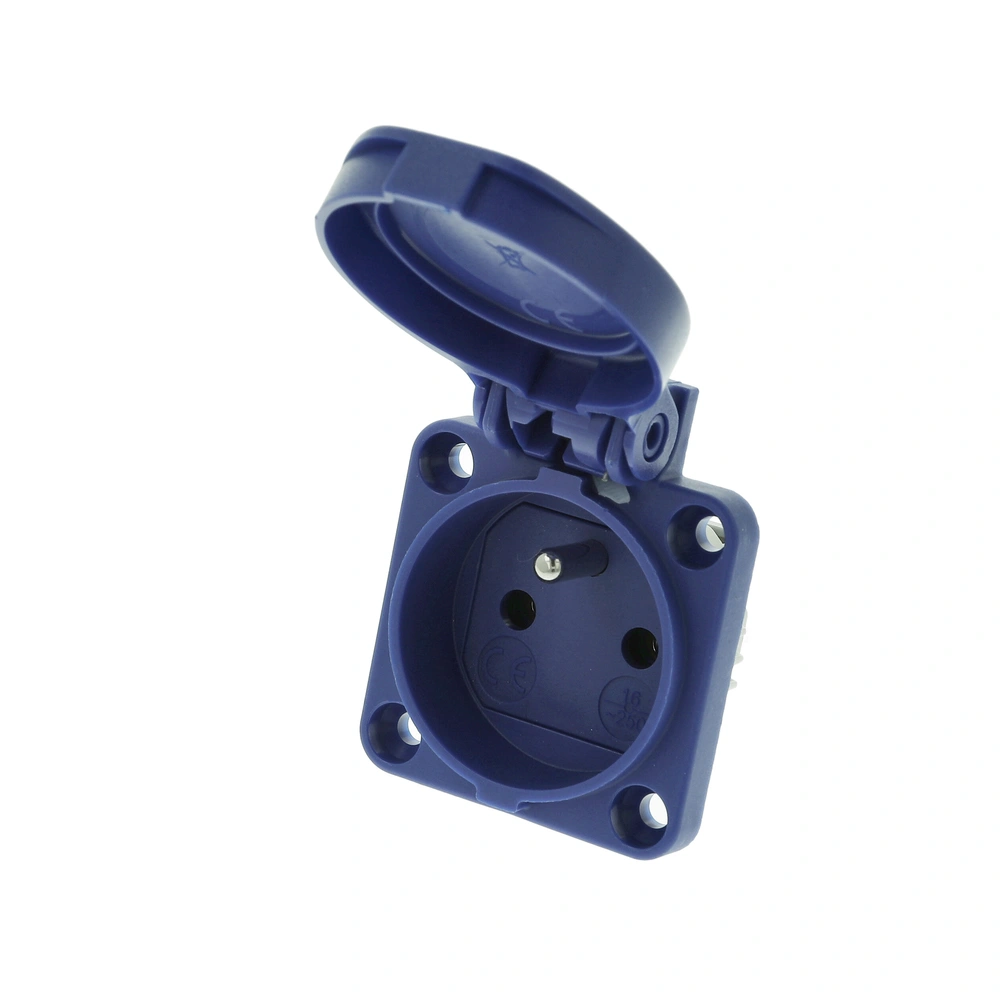

Safety socket with earth contact 1040B
OEG no.: 719000180
High-pressure watertight safety socket with earth contact and with hinged lid. Quick and easy connection of the cable by screwed terminals.
All product informationRelated products
High-pressure watertight safety socket with earth contact and with hinged lid. Quick and easy connection of the cable by screwed terminals.
For more information see Downloads
| OEG no. | 719000180 |
| Type: | Protective contact surface-mounted socket |
| Rated current [A]: | 16 |
| Number of poles: | 3 |
| Voltage [V]: | 250 |
| Protection type [IP]: |
 IP54
|
| Length x Width [mm]: | 50 x 50 |
| Design: | Protective contact with UTE |
| Country version: | F, B, PL |
| Manufacturer | PCE |
| Herstellernummer | 1040B |
| Weight [kg] | 0.04 |
| Notes | |
| Customs tariff number | 85366990 (AT) |
