Safety temperature limiter for thermal circuit

(0)
Ask the first question about this item
OEG no.: 211208135
  • 1,500
  • 90 .. 110 °C

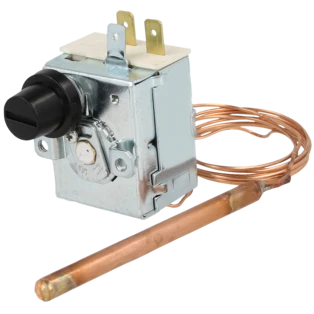

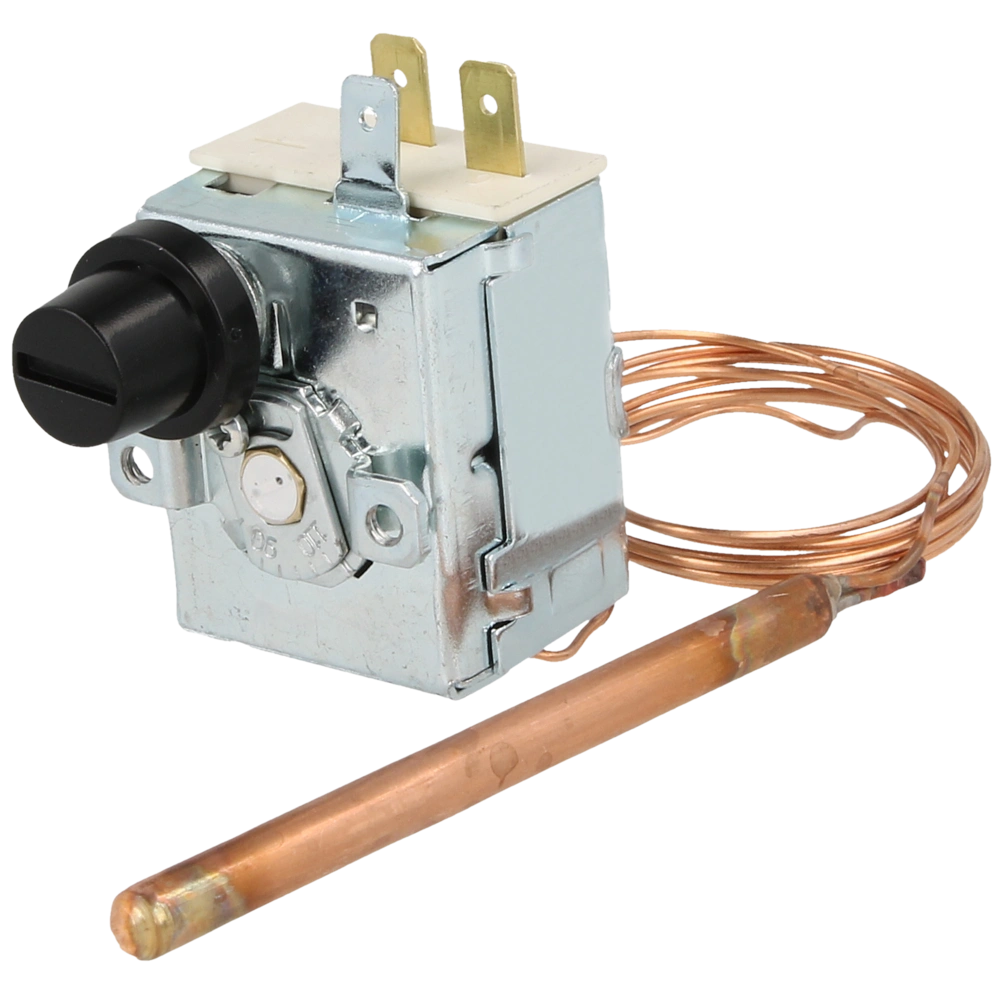

Zoom Safety temperature limiter for thermal circuit

Safety temperature limiter for the mV range. Thanks to minimised contact resistance via the gold-plated switching contact, it can be integrated in the thermostat circuit between the pilot burner and the gas control block.

All product information
CE

CE
CE
Wipe 'n' Buy ®

Safety temperature limiter for the mV range. Thanks to minimised contact resistance via the gold-plated switching contact, it can be integrated in the thermostat circuit between the pilot burner and the gas control block.


For more information see Downloads


OEG no. 211208135
Sensor length [mm]: 1,500
Temperature range [°C]: 90 .. 110
Voltage [V]: 0.1
Current max. [A]: 3
Sensor diameter [mm]: 6.5 x 95
Weight [kg] 0.6
Notes
CE

CE
CE
Customs tariff number 85365080
