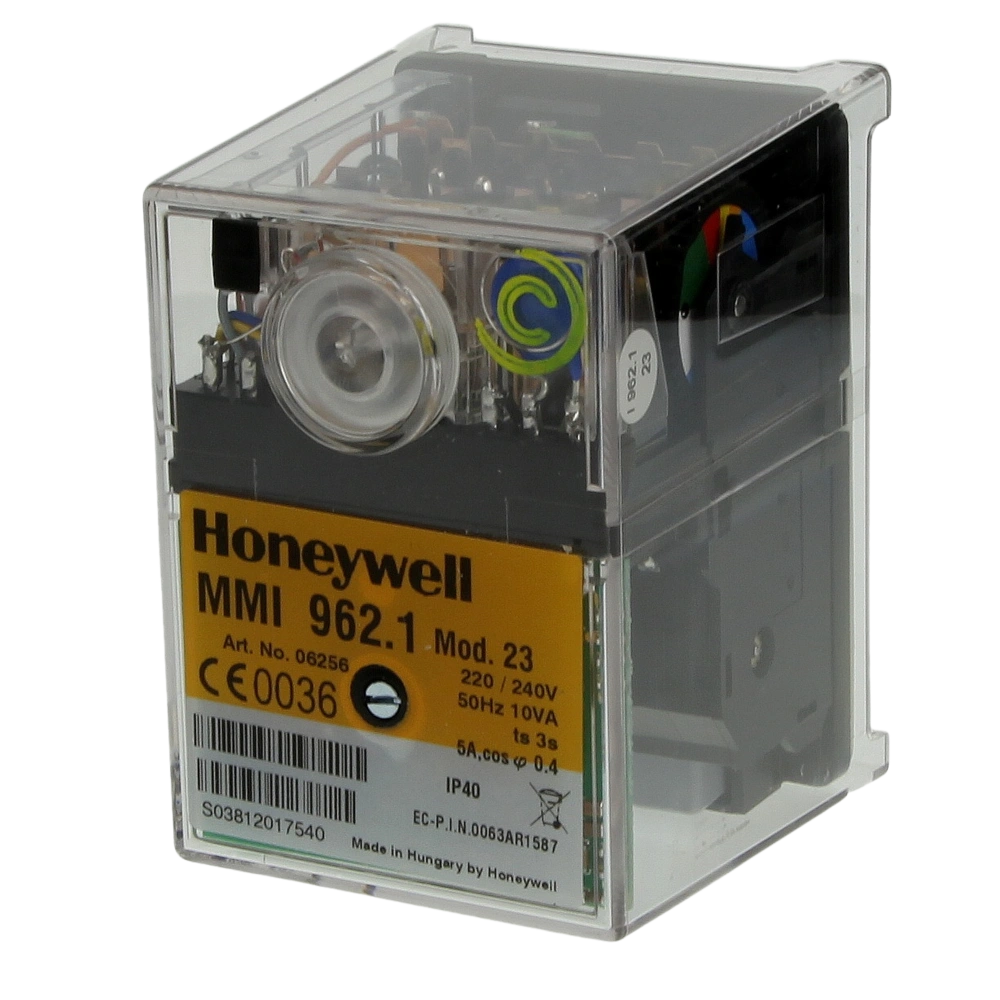

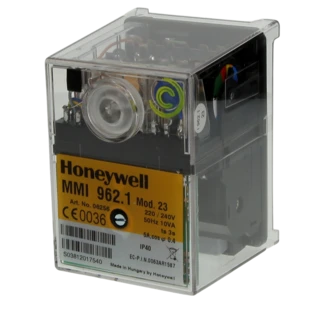

Satronic control unit MMI 962.1 model 23 06256U
OEG no.: 150132565
Burner unit for controlling and monitoring forced-air gas burners. By connecting an actuator for the air flap control, a two-stage burner operation with two fuel valves or a two-stage gliding operation with one fuel valve is possible...
All product information
CE
Burner unit for controlling and monitoring forced-air gas burners. By connecting an actuator for the air flap control, a two-stage burner operation with two fuel valves or a two-stage gliding operation with one fuel valve is possible.
It might be necessary to remove terminal A of the control unit if you are using Weishaupt bases (when replacing MMI 812 by MMI 962).
Replaces: MMI 812 mod. 23, 812.1 mod. 23
For more information see Downloads
| OEG no. | 150132565 |
| Voltage [V]: | 230 |
| Protection type [IP]: |
 IP44
|
| Pre-ignition time: | 3 seconds |
| Safety time [s]: | 3 |
| Ambient temperature [°C]: | -20 .. 60 |
| Standard: | DIN EN 298 |
| Manufacturer | Honeywell |
| Manufacturer number | 06256U |
| EAN | 4046911022126 |
| Weight [kg] | 0.27 |
| Notes |
CE
|
| Customs tariff number | 85364900 |
