Sewage lifting unit SOLOLIFT2 CWC-3 97775316
OEG no.: 515200160

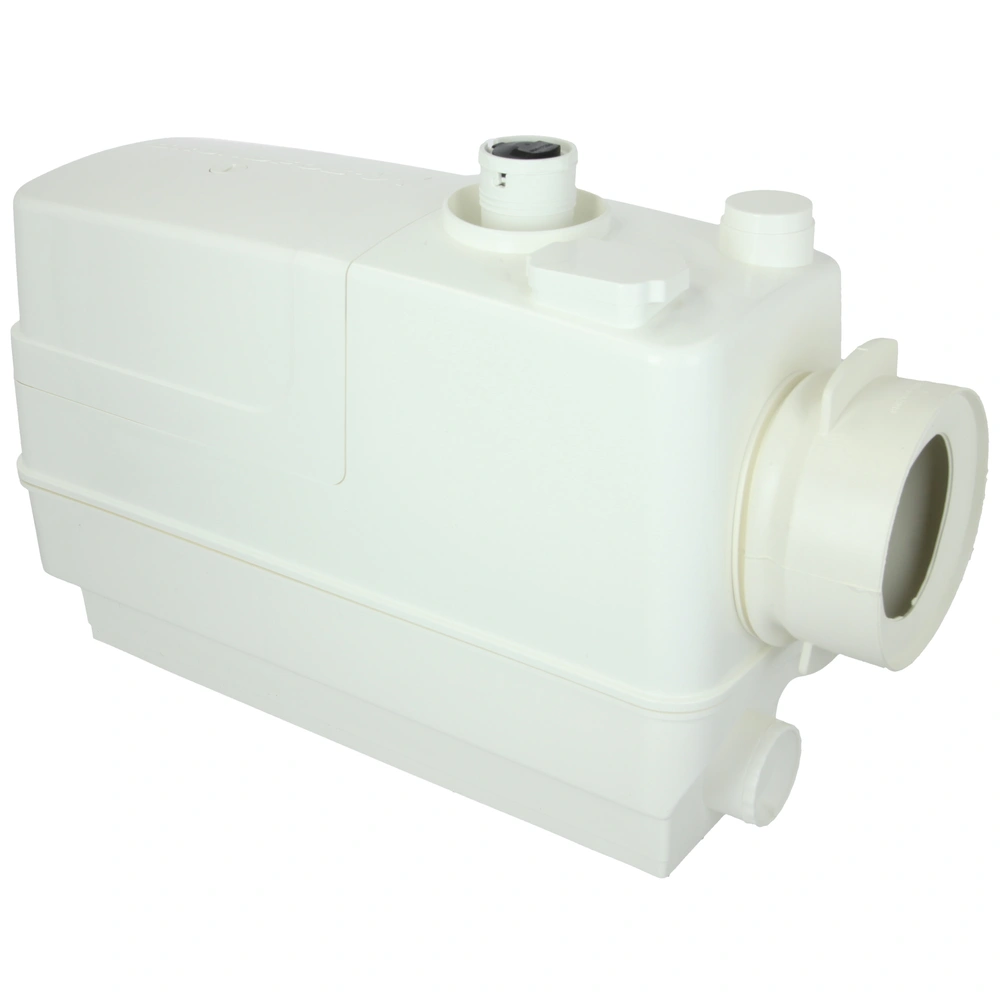

The Grundfos SOLOLIFT2 CWC-3 is a small sewage lifting unit for front-wall installation.
Design according to EN 12050-3 with immersed, compact macerator used for the connection of a wall-hung...
All product informationThe Grundfos SOLOLIFT2 CWC-3 is a small sewage lifting unit for front-wall installation.

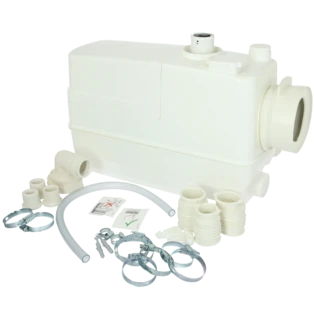

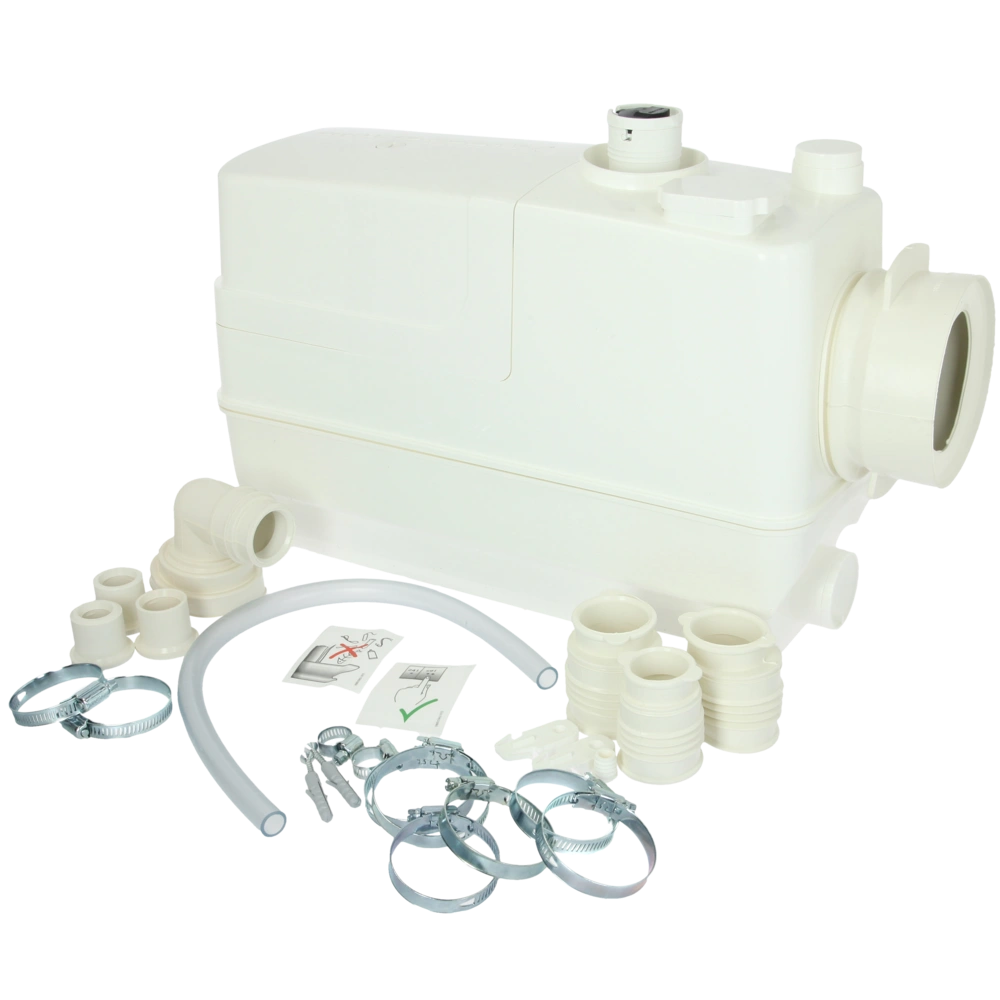

Design according to EN 12050-3 with immersed, compact macerator used for the connection of a wall-hung toilet and up to three more objects taking away grey wastewater. It is supplied ready-to-install with cable and Schuko plug as well as pressure switch for trouble-free, automatic operation.
| OEG no. | 515200160 |
| Delivery head [m]: | 8.5 |
| Voltage [V]: | 230 |
| Media temperature max. [°C]: | 50 |
| Power consumption [W]: | 620 |
| Protection type [IP]: |
 IP44
|
| Outlet: | 22 mm, 25 mm, 28 mm, 32 mm, 36 mm, 40 mm |
| Manufacturer | Grundfos |
| Manufacturer number | 97775316 |
| EAN | 5710624187258 |
| Weight [kg] | 8.09 |
| Customs tariff number | 84138200 (DK) |
Question
Quel est le diamètre de sortie ?
Answer OEG:
Des adaptateurs pour 22/25/28/32/36/40 mm sont inclus.
