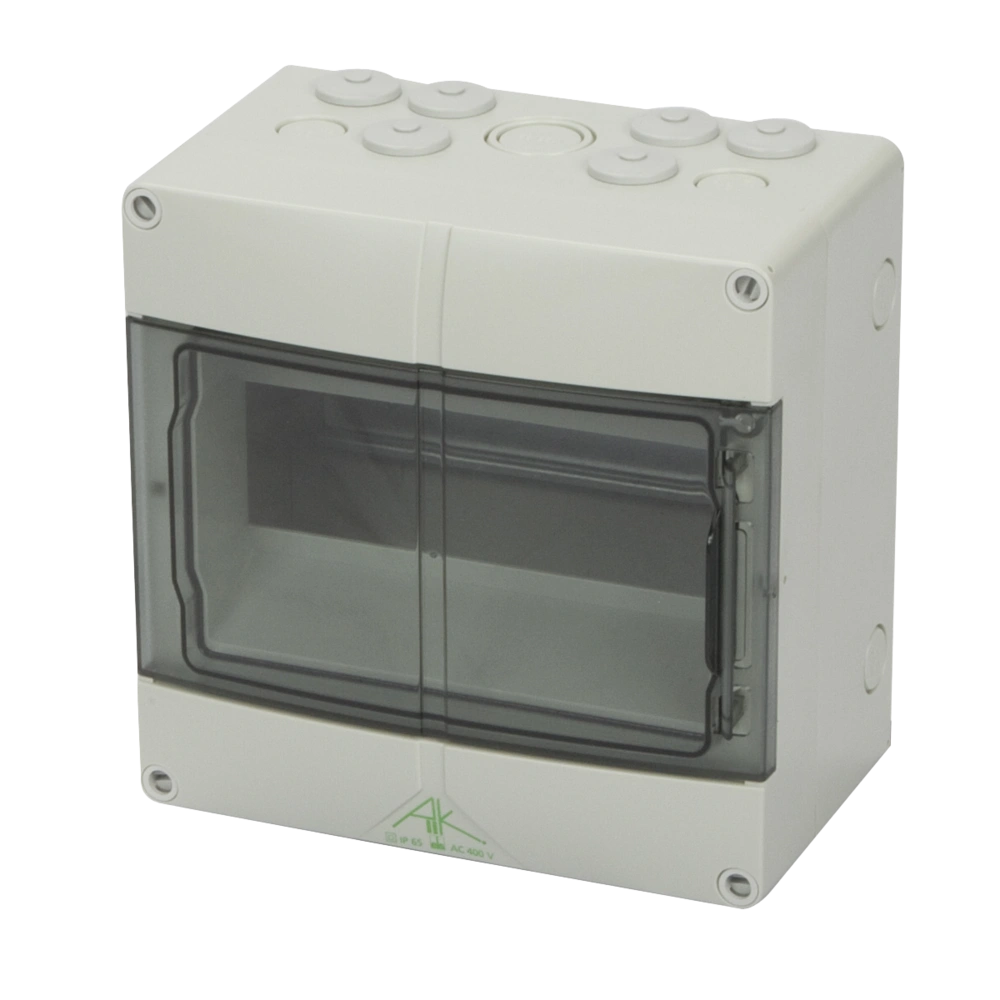

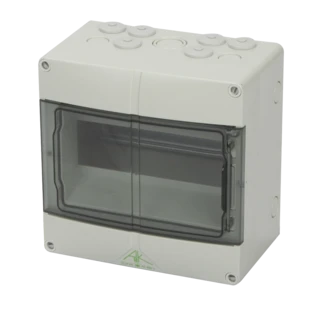

Small-scale distributor AK 09 73540901
OEG no.: 711000728
Small-scale distributor with an inner height of 95 mm. It is provided with metric knockouts on top and bottom for universal cable insertion with cable glands. The distributor is pre-fitted with elastic entries double membrane seals M20 on top...
All product information Scope of delivery
Halogen-free
Small-scale distributor with an inner height of 95 mm. It is provided with metric knockouts on top and bottom for universal cable insertion with cable glands. The distributor is pre-fitted with elastic entries double membrane seals M20 on top. PE/N terminal rail each with 2 terminal points for 16 mm² and five terminal points for 6 mm². The robust design ensures reliable operation even in tough industrial environments.
| Scope of delivery: | |||
| 1 x | small distribution board | ||
| 1 x | M20 double membrane seal | ||
| 1 x | Double membrane seal M32 | ||
| 1 x | blanking plug | ||
| 1 x | Masking and labelling strips | ||
For more information see Downloads
| OEG no. | 711000728 |
| Type: | 1-row |
| Horizontal pitches [HP]: | 9 |
| Design: | 6 elastic entries on top |
| Material: | Plastic |
| Protection type [IP]: |
 IP65
|
| Voltage [V]: | 400 |
| Ambient temperature [°C]: | -25 .. 40 |
| Length x Width x Height [mm]: | 200 x 200 x 122 |
| Manufacturer | Spelsberg |
| Manufacturer number | 73540901 |
| EAN | 4013902063154 |
| Weight [kg] | 0.85 |
| Notes |
Halogen-free
|
| Customs tariff number | 85369095 |
