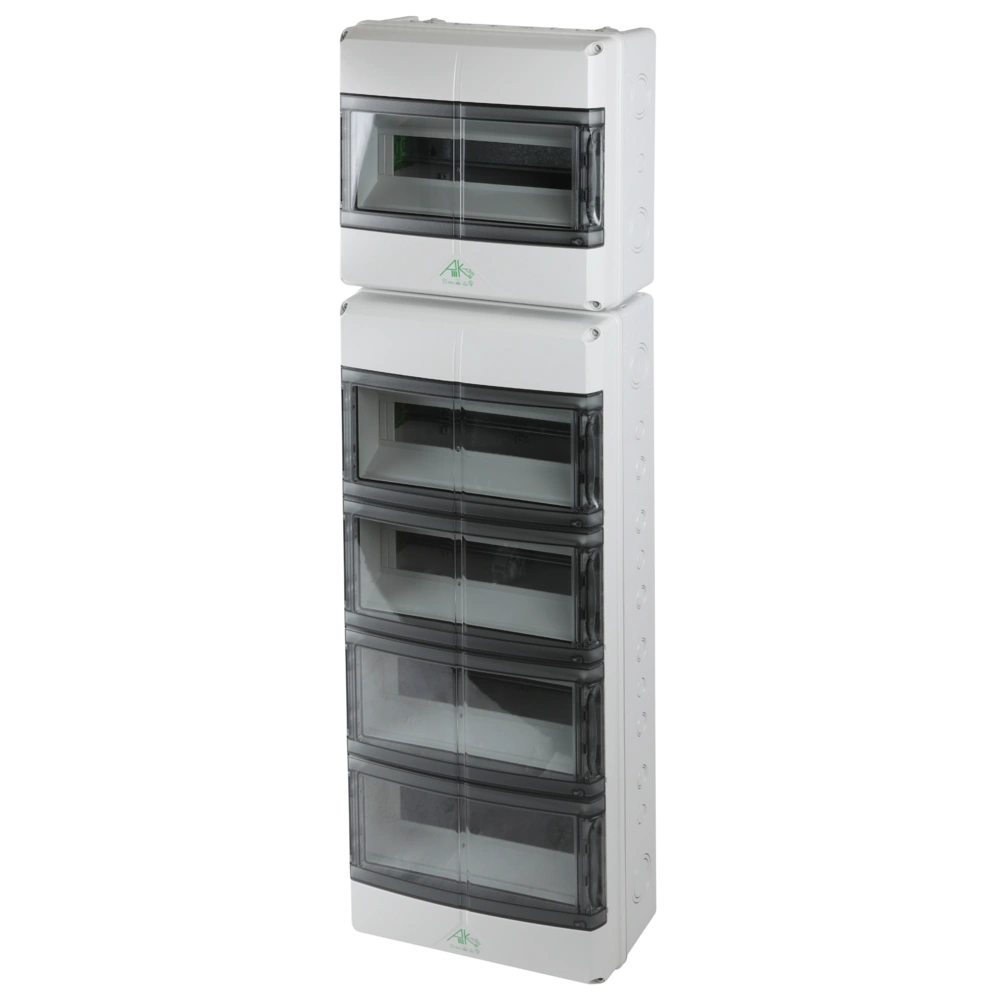

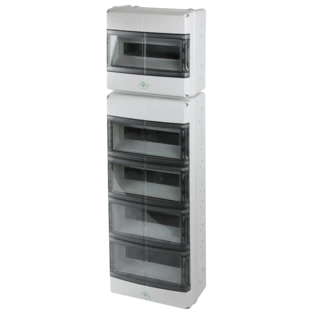

Small-scale distributor comprised of two individual housings with integrated ventilation elements to reduce the formation of condensate water. It is provided with metric knockouts on top and bottom for universal cable insertion with cable glands...
All product information Scope of deliveryRelated products
PU
Halogen-free
Small-scale distributor comprised of two individual housings with integrated ventilation elements to reduce the formation of condensate water. It is provided with metric knockouts on top and bottom for universal cable insertion with cable glands. The distributor is pre-fitted with elastic entries double membrane seals M20 on top. The screwless PE/N terminal rail has six screwable terminal points for 2.5 - 16 mm² and 21 / 2 x 14 screwless terminal points for 1.5 - 4 mm2. The robust design ensures reliable operation even in tough industrial environments.
| Scope of delivery: | |||
| 2 x | small distribution board | ||
| 3 x | Double membrane seals M16 | ||
| 15 x | M20 double membrane seal | ||
| 5 x | M25 double membrane seal | ||
| 3 x | Double membrane seal M32 | ||
| 3 x | Double membrane seals M40 | ||
| 1 x | blanking plug | ||
| 1 x | Masking and labelling strips | ||
For more information see Downloads
| OEG no. | 711000742 |
| Type: | 5-row |
| Horizontal pitches [HP]: | 14 |
| Model: | Elastic entries on top, with cable cover |
| Material: | Plastic |
| Protection type [IP]: | 65 |
| Voltage [V]: | 400 |
| Length x Width x Height [mm]: | 1,050 x 315 x 155 |
| Internal Length x Width x Height [mm]: | 880 x 295 x 106 |
| Ambient temperature [°C]: | -35 .. 80 |
| Manufacturer | Spelsberg |
| Manufacturer number | 73347001 |
| EAN | 4013902515431 |
| Weight [kg] | 6.5 |
| Notes |
PU
Halogen-free
|
| Customs tariff number | 85369095 |
