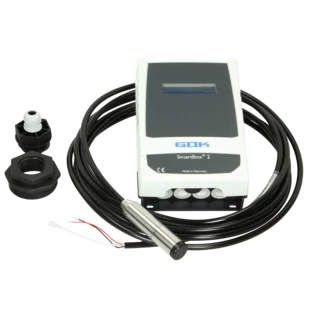

SmartBox 2 with LC display unit

SmartBox 2 is a digital content indicator with advanced control functions.
The perfect solution for:
- local content measurement (displays tank levels up to 200 m away from the tank)
- implementation of several special control functions
- Special solutions for unique requirements (e.g. Ex zones) or tanks with unusual heights (see extension or configurator)
Relay control functions, e.g. for:
- external alarm
- dry-running protection of the pump
Interface for signal ouput, e.g.:
- for temperature measurement (see extension or configurator)
- combination with master control systems, tank machines, cash machines, etc. (see extension or configurator)
- additional data transfer via SmartBox 4 or SmartBox 5
Scope of delivery:

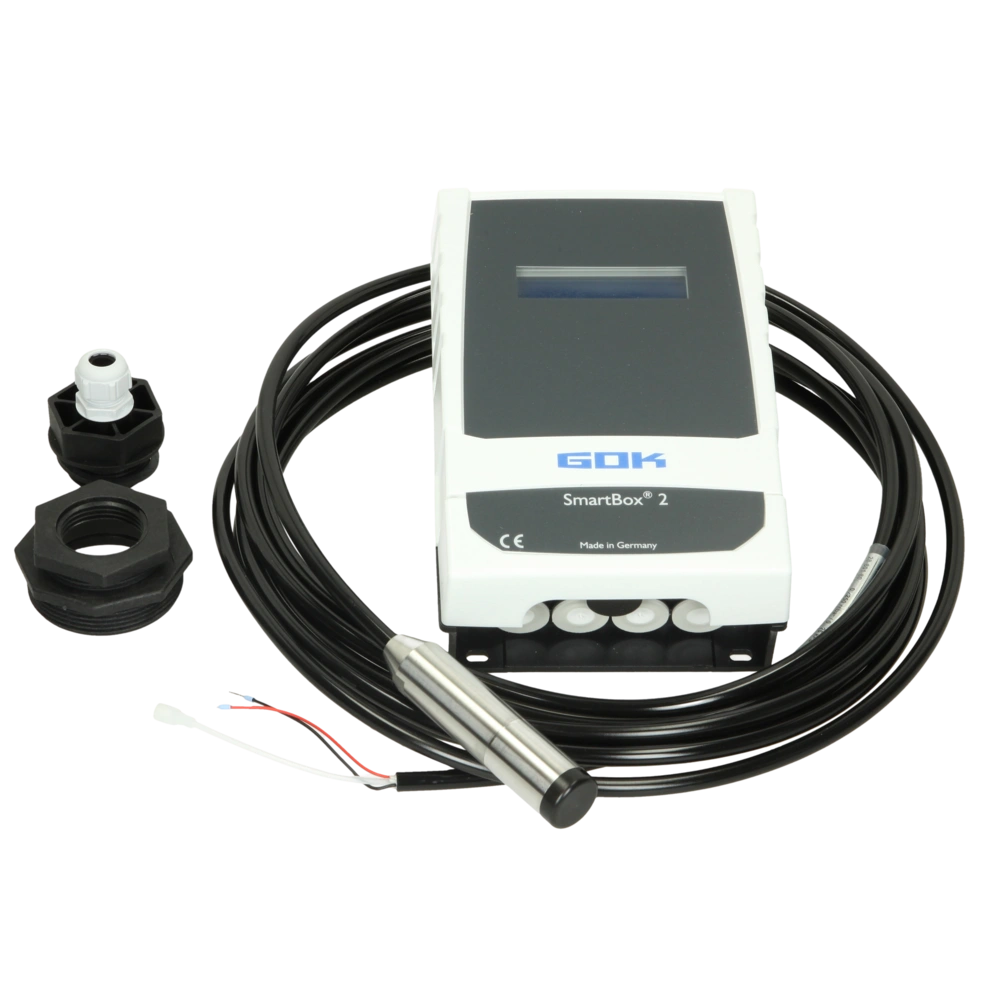

Display unit with 8-digit LCD, hydrostatic sensor (measurement accuracy 1%) with 6 m cable, mounting equipment
Technical data:
Power supply: 230 V AC 50 Hz
Measurment range: heating oil up to 3 m tank height, water up to 2.50 m tank height
Tank connection: G1", G1 1/2" or G2"
Relay output: max. 250 V AC 50 Hz, max. 3.5 A
Type of protection: IP30 (indoor use) or IP65 (outdoor use)

For more information see Downloads
