This adhesive collar allows for the airtight installation of flat and deep cavity-wall connector sockets into the fastening level. It provides a generous mounting space and airtight in-feeding of individual...
All product information Scope of delivery
High Quality

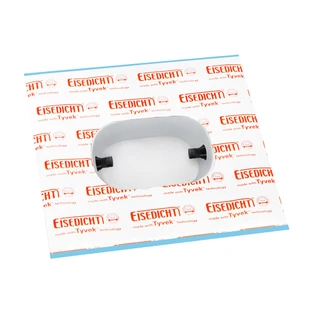

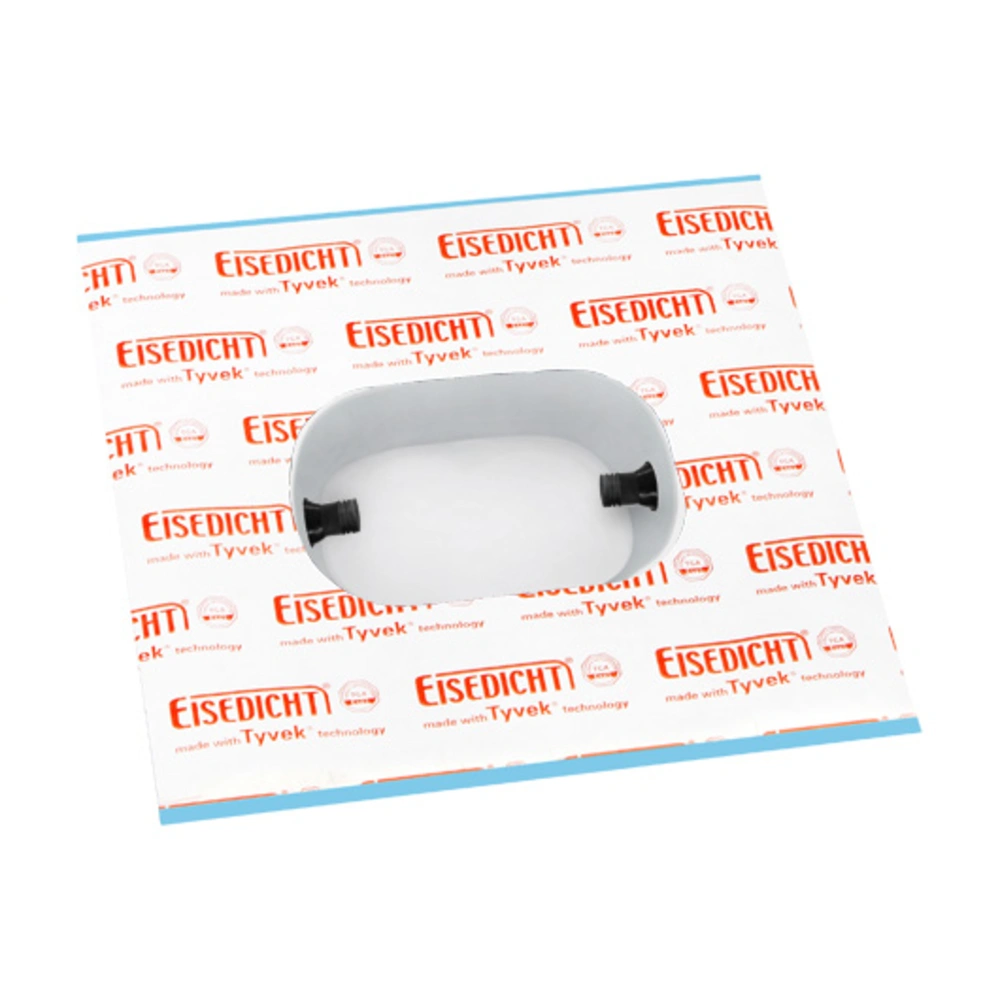

This adhesive collar allows for the airtight installation of flat and deep cavity-wall connector sockets into the fastening level. It provides a generous mounting space and airtight in-feeding of individual electric cables and empty conduits due to the prefabricated construction. The generously sized adhesive flange is installed directly on the existing vapour barriers, vapour retardants or oriented structural boards and is permanently waterproof and sealed.
| Scope of delivery: | |||
| 1 x | socket collar | ||
| 2 x | sealing plug | ||
For more information see Downloads
| OEG no. | 516006570 |
| Application: | Up to 2 sockets |
| Size: | 350 x 320 mm |
| Temperature resistance [°C]: | -15 .. 70 |
| Processing temperature [°C]: | 5 .. 40 |
| Seal: | EPDM |
| Cable diameter [mm]: | 4 .. 22 |
| Manufacturer | Eisedicht |
| Manufacturer number | SD0002 |
| EAN | 4260014336991 |
| Weight [kg] | 0.09 |
| Notes |
High Quality
|
| Customs tariff number | 39259080 |
