Effective dirt separator for removing dirt particles from heating systems. Dirt particles are collected effectively and drained via the discharge tap...
All product informationRelated products

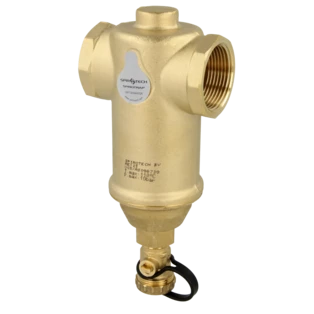

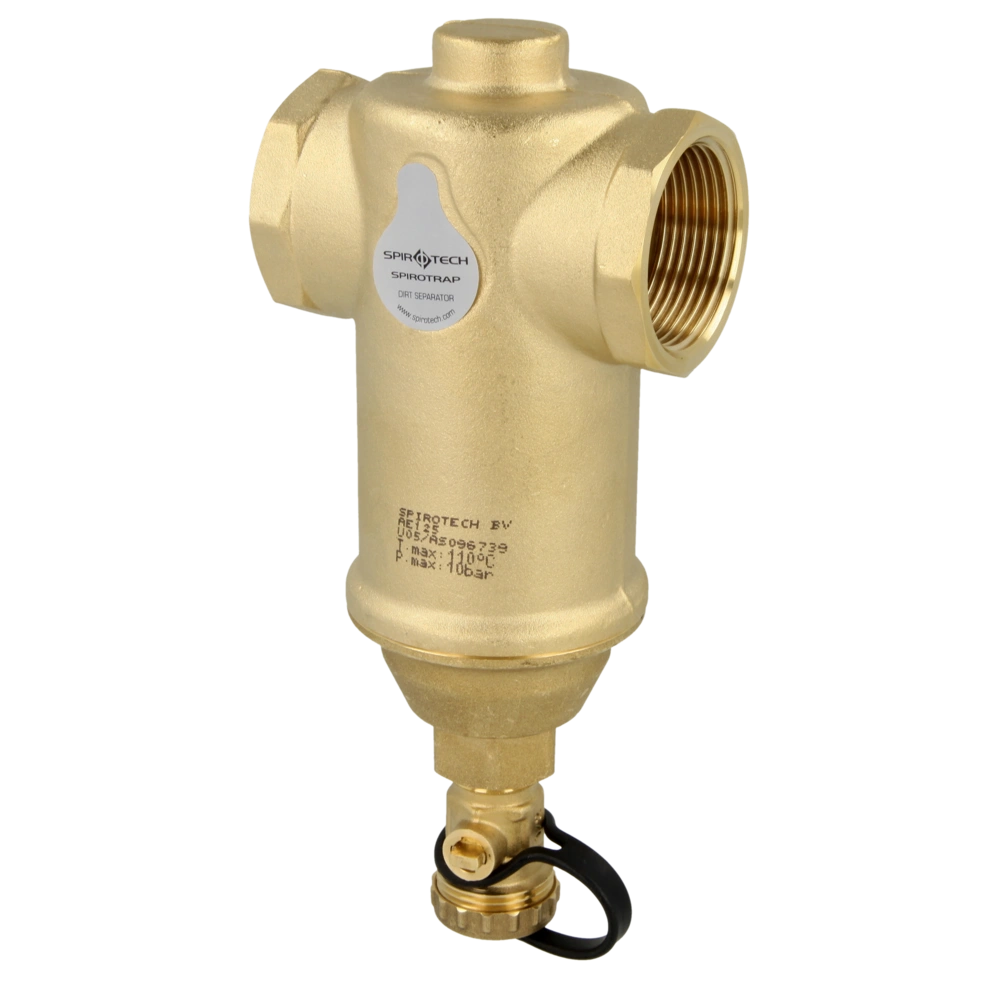

Effective dirt separator for removing dirt particles from heating systems. Dirt particles are collected effectively and drained via the discharge tap. Additionally, SpiroTrap is amazing due to its special Spirotube® for optimal separation of the particles and high collecting capacity. Thus, the pump and system parts are protected efficiently. Spirotrap should be installed horizontally at the hottest place of the respective system.
For more information see Downloads
| OEG no. | 512234322 |
| Material: | Brass |
| Mounting type: | Horizontal |
| Connection size: | 1¼" IT |
| Operating pressure max. [bar]: | 10 |
| Temperature max. [°C]: | 110 |
| Flow rate [m³/h]: | 3.6 |
| Length [mm]: | 88 |
| Height [mm]: | 161 |
| Diameter [mm]: | 65 |
| Manufacturer | Spirotech |
| Manufacturer number | AE125 |
| EAN | 8717811000779 |
| Weight [kg] | 1.3 |
| Customs tariff number | 84212100 (NL) |
