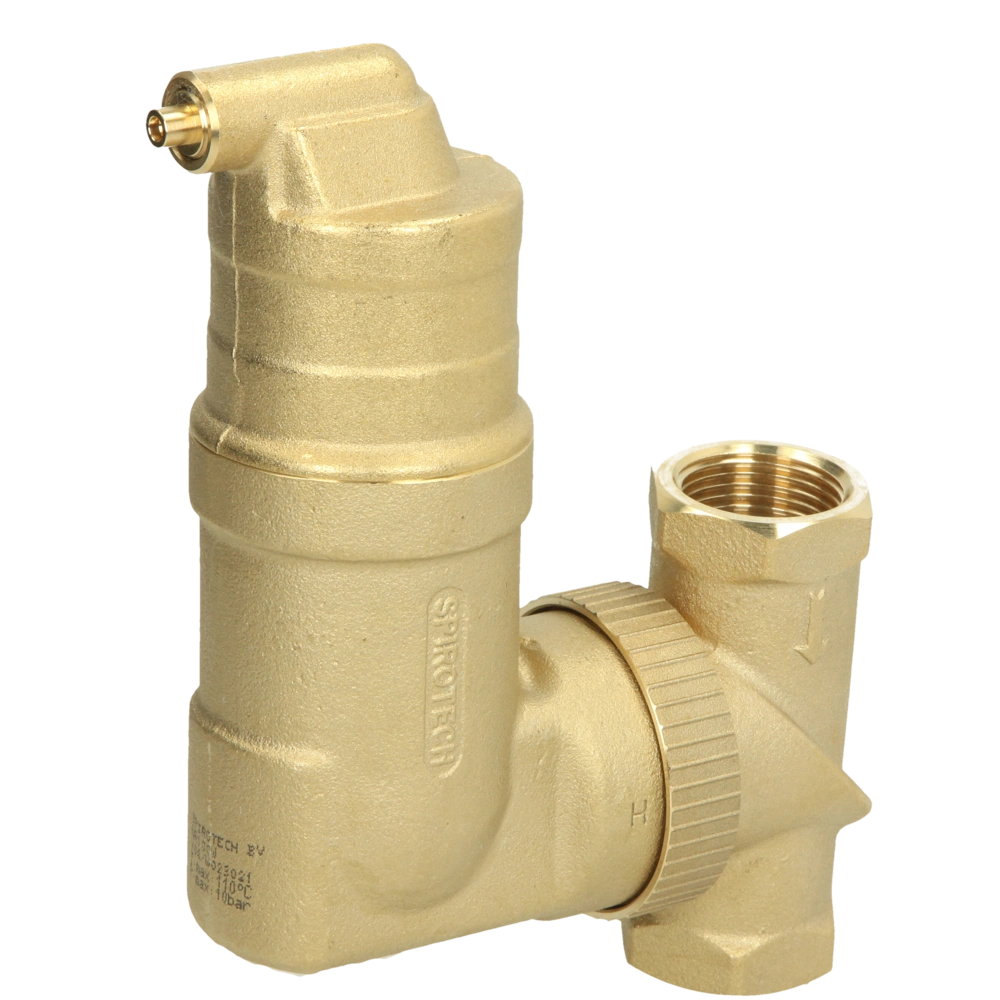

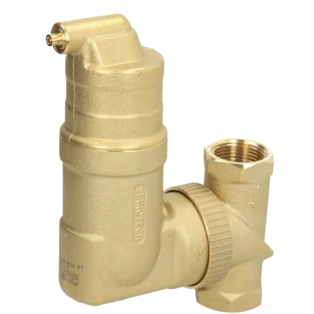

Microbubble deaerator for the reliable removal of microbubbles in heating, cooling and processing systems. Due to the special Spirotube® sheathed with a woven copper wire configuration, even the smallest air bubbles are inhibited in the main flow and they rise...
All product informationRelated products
Microbubble deaerator for the reliable removal of microbubbles in heating, cooling and processing systems. Due to the special Spirotube® sheathed with a woven copper wire configuration, even the smallest air bubbles are inhibited in the main flow and they rise. The air thus separated is vented to the outside via the automatic, leak-free valve. This results in a completely microbubble-free circulation in the system, thereby ensuring a perfect operation without any maintenance, manual venting and disturbing noises. SpiroVent should be installed horizontally or vertically at the hottest point within the respective system.
For more information see Downloads
| OEG no. | 512234510 |
| Material: | Brass |
| Connection size: | 3/4" IT |
| Operating pressure max. [bar]: | 10 |
| Temperature max. [°C]: | 110 |
| Flow rate [m³/h]: | 1.3 |
| Length [mm]: | 144 |
| Height [mm]: | 195 |
| Diameter [mm]: | 62 |
| Mounting type: | Vertical | Horizontal |
| Manufacturer | Spirotech |
| Manufacturer number | UA075W |
| EAN | 8717811049624 |
| Also replaces | 512234270 |
| Weight [kg] | 1.8 |
| Customs tariff number | 84212100 (NL) |
