Electronic DIN-rail time switch with separate multi-voltage input and automatic 3- or 4-wire detection for staircase lighting. This multifunctional device offers 10 selectable functions, including permanent...
All product information
PU

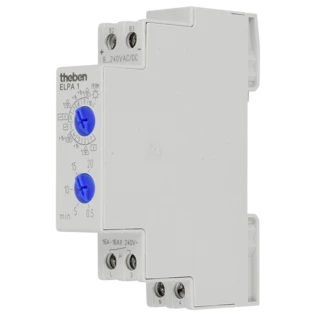

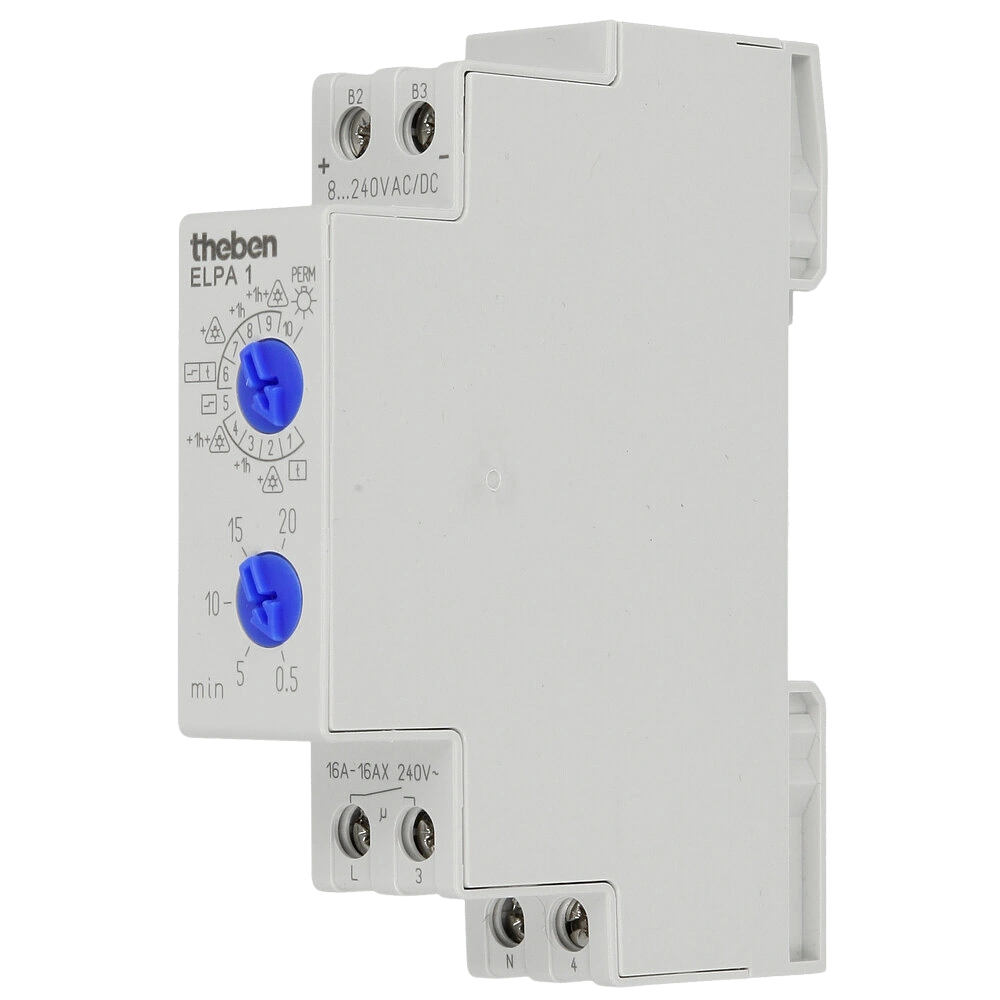

Electronic DIN-rail time switch with separate multi-voltage input and automatic 3- or 4-wire detection for staircase lighting. This multifunctional device offers 10 selectable functions, including permanent light, long-duration and impulse switch modes, and features high timekeeping accuracy. Zero-cross switching protects both the relay contact and the lighting elements. The light can be switched on again at any time, and the switch-off pre-warning—signalled by two double flashes—enhances safety in the stairwell.
For more information see Downloads
| OEG no. | 723000012 |
| Adjustment range: | 30 sec. to 20 min. |
| Ambient temperature [°C]: | -25 .. 50 |
| Incandescent lamp load max. [W]: | 2,600 |
| Voltage [V]: | 230 |
| Protection type [IP]: |
 IP20
|
| Horizontal pitches [HP]: | 1 |
| Mounting type: | DIN rail |
| Switch contact: | Normally open contact |
| Switching capacity LED [W]: | 600 |
| Manufacturer | Theben |
| Manufacturer number | 0010002 |
| EAN | 4003468010518 |
| Weight [kg] | 0.5 |
| Notes |
PU
|
| Customs tariff number | 91070000 |
