OEG no. : 512003748
Related products
Hydraulic balancing and precise adjustment of given volume flows can be performed quickly and easily by means of the iDROSET valve. No additional measurement tools are required...
All product informationRelated products
ACS
EAC

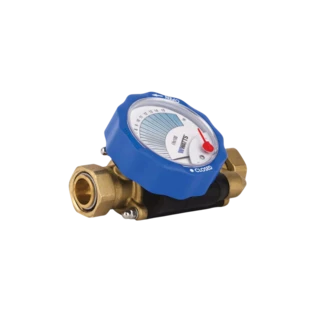

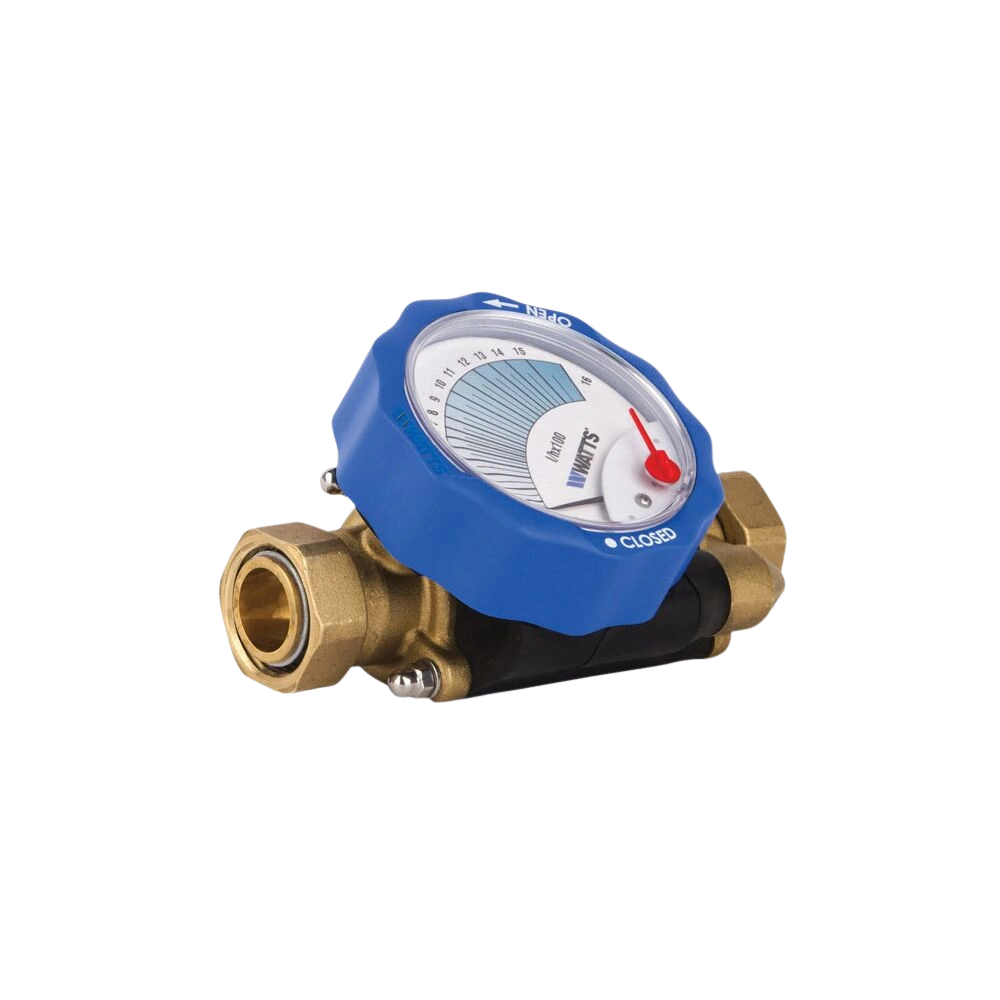

Hydraulic balancing and precise adjustment of given volume flows can be performed quickly and easily by means of the iDROSET valve. No additional measurement tools are required. Time-consuming calibration can be omitted. Due to the pointer mechanism, the flow rate can be read off on the dial in real-time and can be adjusted with the blue hand wheel. Unlike standard balancing valves, it has a much higher flow rate and consequently a wide range of applications.
For more information see Downloads
| OEG no. | 512003748 |
| Thread: | ISO 228 |
| Flow rate [l/h]: | 250 .. 6,000 |
| Connection: | 1 1/4" IT |
| Media: | Water- Glycol max. 50 % |
| kvs-value [m³/h]: | 14.0 |
| Media temperature max. [°C]: | 110 |
| Pressure stage PN [bar]: | 16 |
| Manufacturer | Watts |
| Manufacturer number | 10082786 |
| Weight [kg] | 2.6 |
| Notes |
ACS
EAC
|
| Customs tariff number | 90261089 |
