Smart glandless circulation pump specially designed for hot-water heating systems of all kinds, air-conditioning systems, closed cooling circuits and industrial circulation systems...
All product information Scope of deliveryRelated products
Suitable for drinking water installations

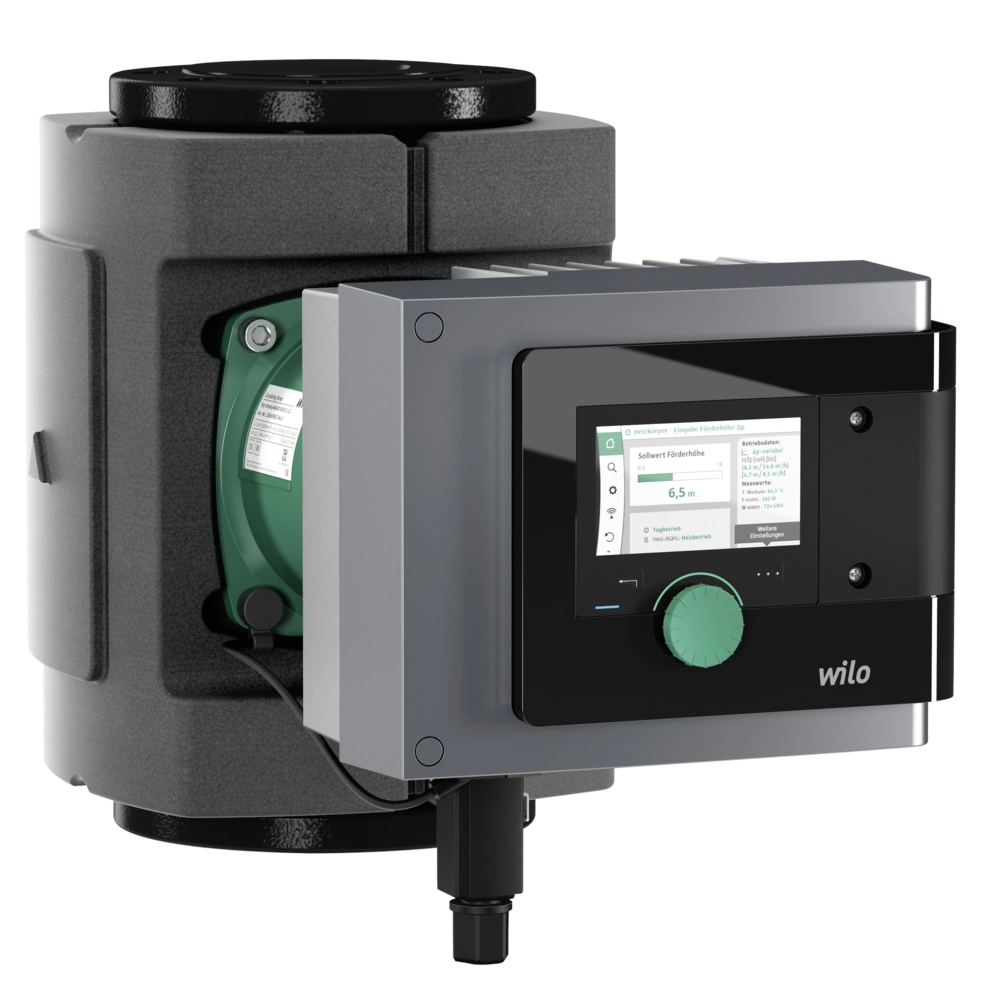

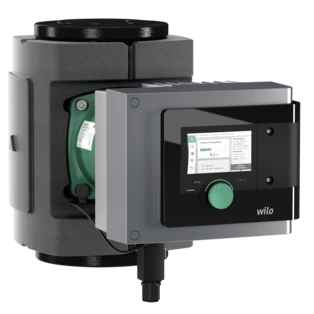

Smart glandless circulation pump specially designed for hot-water heating systems of all kinds, air-conditioning systems, closed cooling circuits and industrial circulation systems.
The self-explanatory user interface makes the installation and operation very easy. The pump with intelligent control function provides for an operation with highest system efficiency for radiators, underfloor heating and ceiling cooling. Application-guided settings are performed via Setup Guide. There is also an interface for the connection to mobile devices and for direct pump networking.
| Scope of delivery: | |||
| 1 x | pump | ||
| 1 x | Wilo connector | ||
| 2 x | cable gland M16 x 1,5 | ||
| 2 x | washer | ||
| 1 x | thermal insulation shell | ||
| 1 x | installation and operating instructions | ||
For more information see Downloads
| OEG no. | 512250816 |
| Connection size: | DN50 |
| Delivery head [m]: | 0.5 - 8 |
| Operating pressure max. [bar]: | 10 |
| Total length [mm]: | 240 |
| Delivery rate [m³/h]: | 24 |
| Power consumption [W]: | 10 .. 390 |
| Energy efficiency index: | 0.17 |
| Type of connection: | Flange |
| Type: | Stratos MAXO 50/0.5-8 |
| Series: | Stratos MAXO |
| Pumped medium: | Water |
| Media temperature [°C]: | -10 .. 110 |
| Ambient temperature [°C]: | -10 .. 40 |
| Voltage [V]: | 230 |
| Protection type [IP]: | X4D |
| Manufacturer | Wilo |
| Manufacturer number | 2186203 |
| EAN | 4048482781921 |
| Also replaces | 512200112 |
| Weight [kg] | 11.8 |
| Notes |
Suitable for drinking water installations
|
| Customs tariff number | 84136080 |
