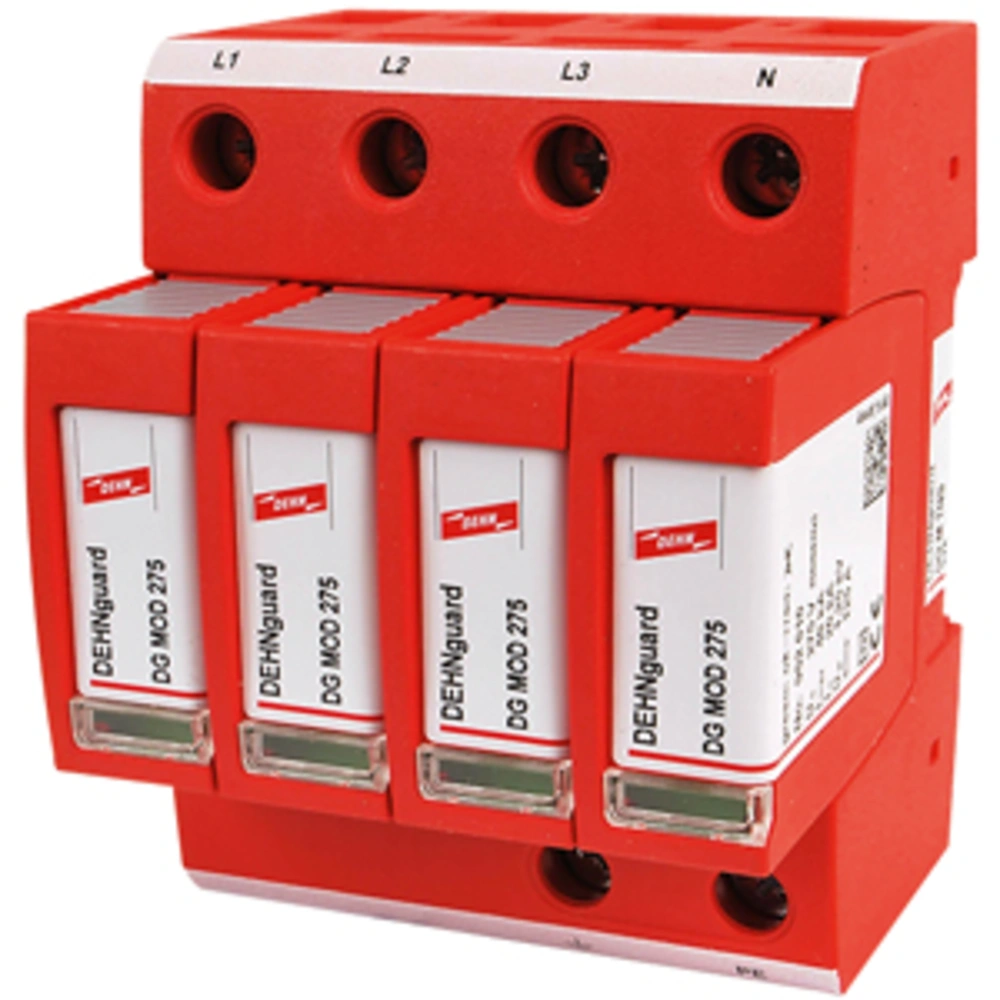

Surge arrester type 2 FM for TN-S systems
OEG no.: 740001604
Ready-to-connect, vibration- and shock-tested surge arrester with high discharge capacity and thermal arrester monitoring.
All product information
PU
CE
Ready-to-connect, vibration- and shock-tested surge arrester with high discharge capacity and thermal arrester monitoring.
For more information see Downloads
| OEG no. | 740001604 |
| Series: | DEHNguard |
| Model: | DG M TNS 275 FM |
| Suitable for: | TN-S systems |
| Type: | Type 2 |
| Number of poles: | 4 |
| Rated voltage [V]: | 230, 400 |
| Operating temperature [°C]: | -40 .. 80 |
| Wire cross-section [mm²]: | 1.5 .. 35 |
| Mounting type: | DIN rail |
| Protection type [IP]: |
 IP20
|
| Horizontal pitches [HP]: | 4 |
| Colour: |
 Red
|
| Material: | Thermoplastic |
| Remote signalling contact: |
 Yes
|
| Manufacturer | Dehn |
| EAN | 4013364108462 |
| Weight [kg] | 0.45 |
| Notes |
PU
CE
|
| Customs tariff number | 85363030 |
There are no questions available on this item yet
