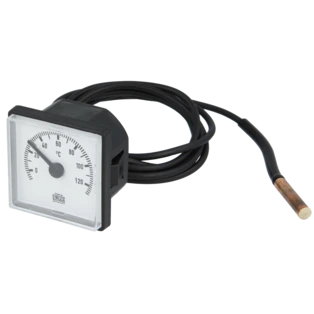

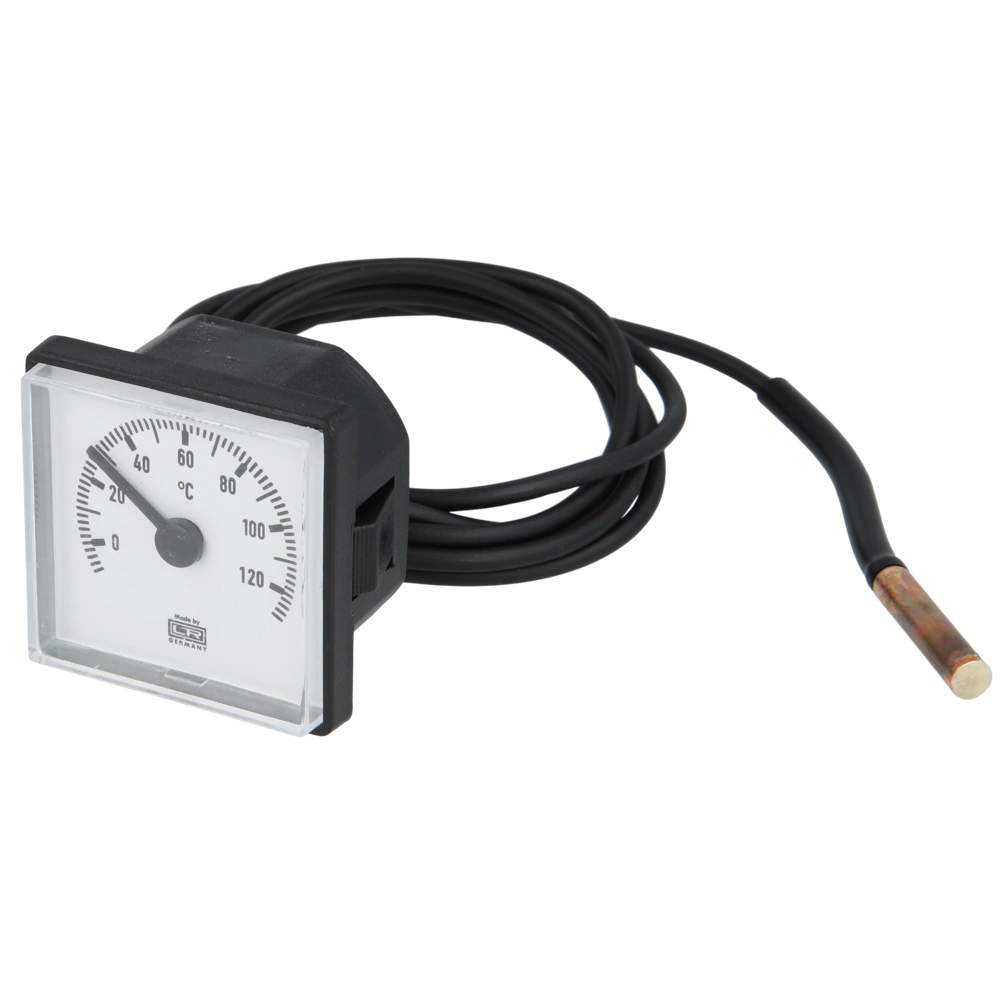

TEE48/150 THK 130/45 S remote thermometer
OEG no.: 211206020
Remote-reading thermometer for storage temperature monitoring.
This mechanical panel-mount thermometer is designed for heating systems where the storage temperature needs to be read reliably at...
All product information
Remote-reading thermometer for storage temperature monitoring.
This mechanical panel-mount thermometer is designed for heating systems where the storage temperature needs to be read reliably at a convenient location while the sensor sits on the buffer tank or boiler. The capillary tube allows flexible positioning of the sensor at the heat source without any external power supply. Front fixing with snap-in clips makes installation easier and ensures a secure fit, giving the system operator a quick way to check storage temperatures.
| OEG no. | 211206020 |
| Housing: | Plastic |
| Measuring range temperature [°C]: | 0 .. 120 |
| Length x Height [mm]: | 48 x 48 |
| DIN: | EN 60529 / IEC 529 |
| Protection type [IP]: |
 IP54
|
| Depth [mm]: | 35 |
| Cable length: | 1.5 |
| Sensor diameter [mm]: | 6.5 |
| Sensor length [mm]: | 28 |
| Weight [kg] | 0.1 |
| Notes | |
| Customs tariff number | 90251900 (TN) |
Question
wieviel beträgt die Einbautiefe ?
Answer OEG:
Guten Tag,
Die Einbautiefe des Thermometers beträgt ca. 20mm.
You have to be logged in to ask a question
28/06/2019, 14:36:09 of: Mr Heinz Albert
OK
Sehr gutes Thermometer zum schmalen Preis
