The terminal strips without wire protection are equipped with twisted screws and clamping bolts. The housing is made of polyamide and self-extinguishing acc...
All product informationRelated products

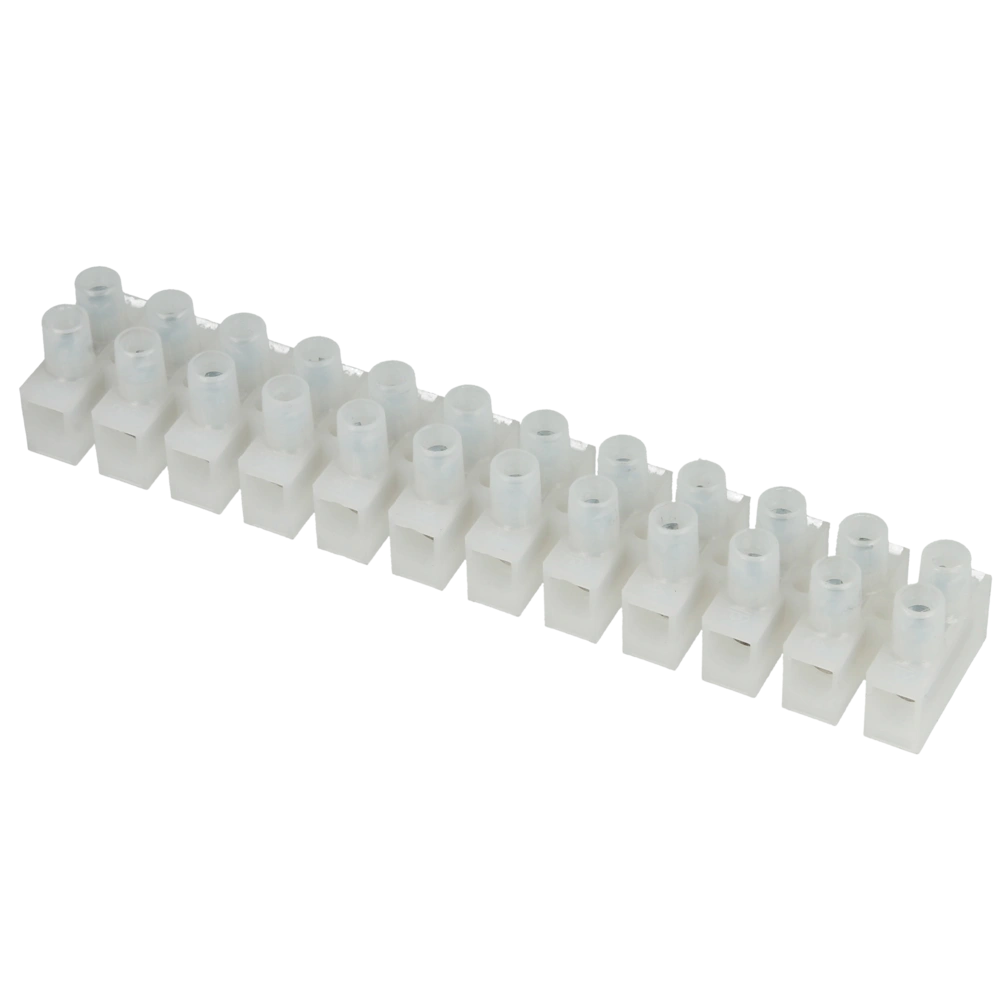

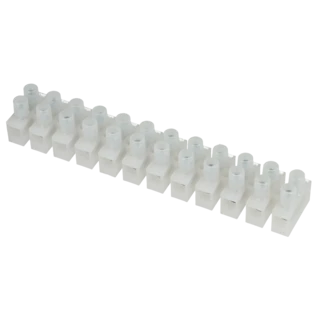

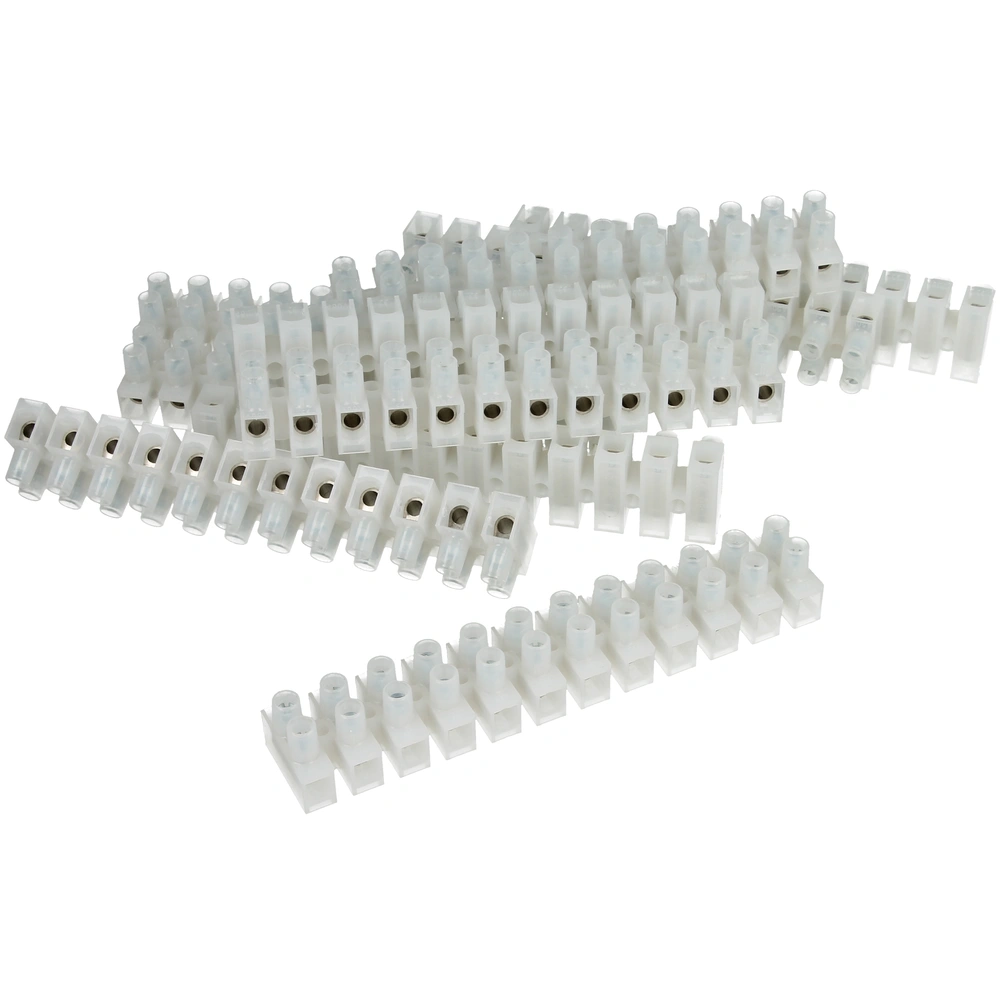

The terminal strips without wire protection are equipped with twisted screws and clamping bolts. The housing is made of polyamide and self-extinguishing acc. to UL 94V2. The clamping bolts are made of nickel-plated brass, the screws are made of galvanised steel. The terminals can be cut to length individually.
For more information see Downloads
| OEG no. | 740002312 |
| PU | 10 pieces |
| Model: | Connecting terminal 12-pole |
| Colour: | Natural |
| Housing: | Polyamide |
| Wire cross-section [mm²]: | 6 |
| Rated voltage [V]: | 450 |
| Standard: | DIN EN 60998/VDE 0613 |
| Temperature max. [°C]: | 130 |
| EAN | 4004950163217 |
| Weight [kg] | 0.49 |
| Customs tariff number | 85369010 (AT) |
There are no questions available on this item yet
You have to be logged in to ask a question
31/08/2016, 15:02:43 of: Mr Feld
gut
Läßt sich leicht verbinden die Anschlussklemmen 12-polig natur
