Thermal load valve for the return rise of solid fuel boilers with or without buffer storage tank. It maintains the boiler water temperature and return temperature high, thereby optimises combustion and prevents the undershooting of the dew point...
All product informationRelated products

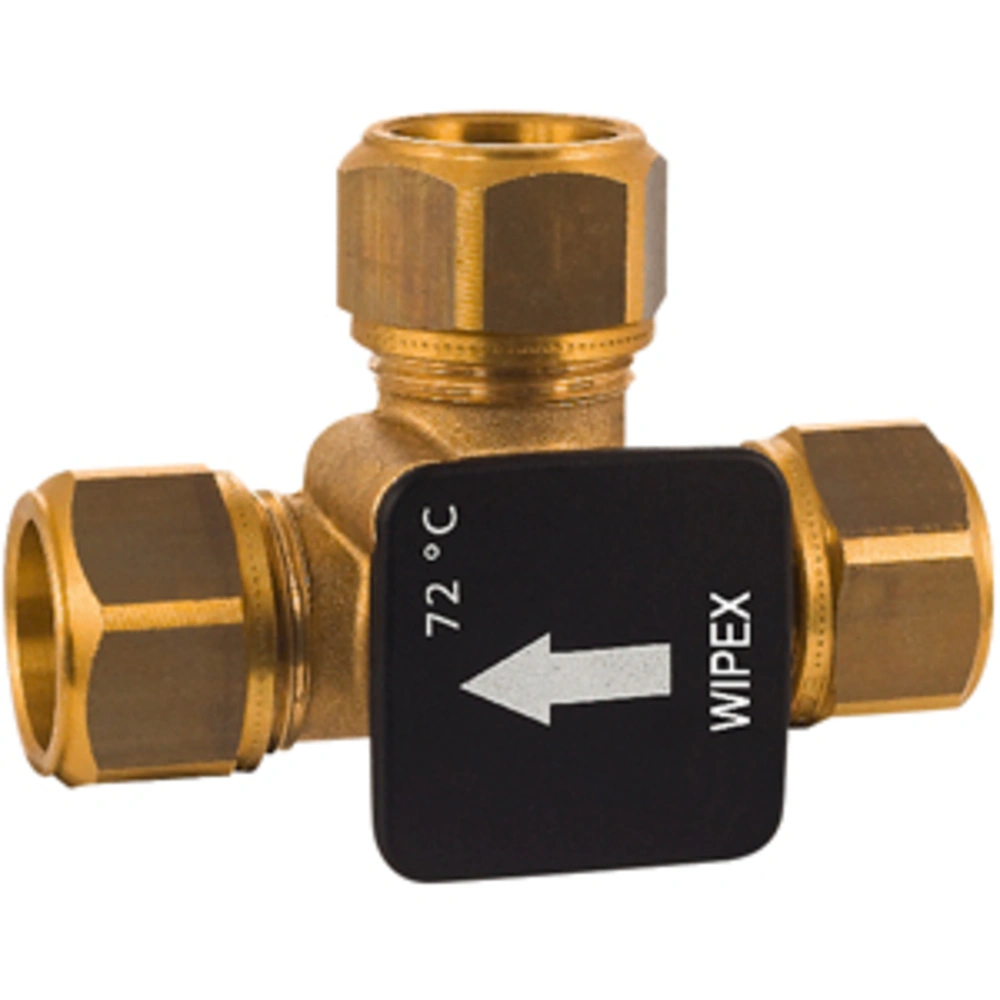

Thermal load valve for the return rise of solid fuel boilers with or without buffer storage tank. It maintains the boiler water temperature and return temperature high, thereby optimises combustion and prevents the undershooting of the dew point. In buffer storage tank systems, it ensures an excellent temperature stratification. The load valve does not need any external power and is available in different opening temperatures.
For more information see Downloads
| OEG no. | 512244154 |
| Connection size: | 22 mm |
| kvs-value [m³/h]: | 6.0 |
| Opening temperature [°C]: | 72 |
| Operating temperature max. [°C]: | 110 |
| Seal: | EPDM |
| Pressure max. [bar]: | 10 |
| Material: | Brass |
| Weight [kg] | 0.88 |
| Customs tariff number | 84818011 |
You have to be logged in to ask a question
10/09/2016, 08:24:04 of: Mr Cor
De bypass kant blijft altijd open staan.
De 72gr zijde gaat idd bij 72gr open. Omdat de bypass zijde niet afsluit en dit geen hogere inwendige weerstand heeft, zal het meeste water weer rechtstreeks naar de warmtebron gepompt worden. Totdat het water zo heet is, dat de beveiliging intreedt.
