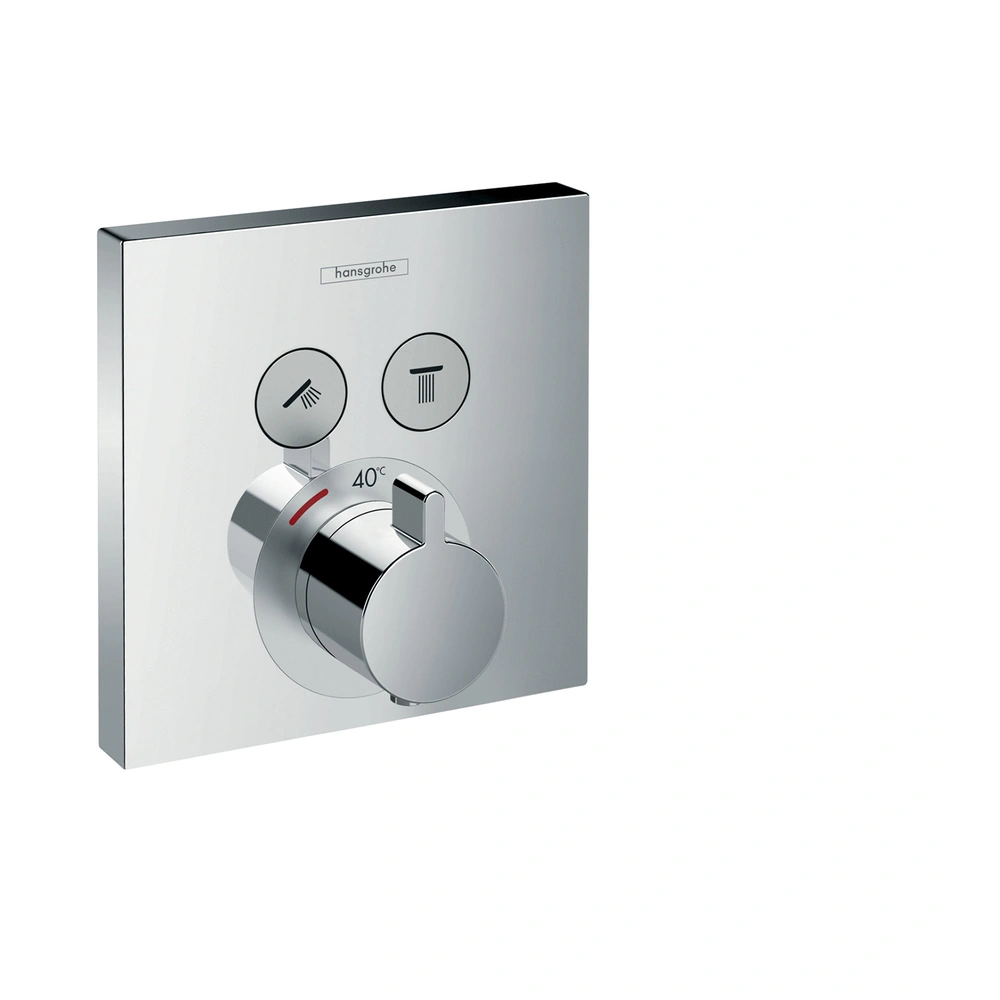

Thermostat ShowerSelect concealed 15763000
OEG no.: 800026038
The thermostat has two pushbuttons for 2 outlets. The flow rate of the upper outlet is 25 l/min., the flow rate of the lower one is 23 l/min. The thermostat is fitted with an adjustable temperature limitation to prevent from scalding...
All product information Scope of deliveryThe thermostat has two pushbuttons for 2 outlets. The flow rate of the upper outlet is 25 l/min., the flow rate of the lower one is 23 l/min. The thermostat is fitted with an adjustable temperature limitation to prevent from scalding.
The temperature is controlled via thermostatic cartridge.
For the installation, the hansgrohe ibox universal base set is required.
| Scope of delivery: | |||
| 1 x | function block | ||
| 1 x | Fastening material | ||
| 1 x | Mounting instructions | ||
| 1 x | thermostat | ||
For more information see Downloads
| OEG no. | 800026038 |
| Colour: |
 Chrome
|
| Material: | Brass |
| Flow rate [l/min]: | 23 .. 25 |
| Application: | Shower |
| Type of connection: | Base body |
| Operating pressure [bar]: | 1 .. 10 |
| Manufacturer | Hansgrohe |
| Manufacturer number | 15763000 |
| EAN | 4011097719849 |
| Also replaces |
|
| Weight [kg] | 1.88 |
| Customs tariff number | 84818011 |
