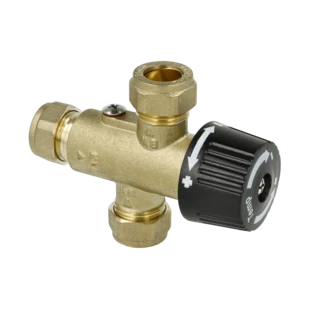

Thermostatic domestic water mixer connection Ø 15 mm
The thermal 3-way valve for domestic water is used for hot-water preparation with a thermal insert for the regulation of the water temperature. The arrow on the valve body indicates the flow direction...
All product information Scope of deliveryThe thermal 3-way valve for domestic water is used for hot-water preparation with a thermal insert for the regulation of the water temperature. The arrow on the valve body indicates the flow direction. An air screw is integrated with this connection size to drain small hot water heaters easily.
| Scope of delivery: | |||
| 1 x | thermostatic domestic water mixer | ||
For more information see Downloads
| OEG no. | 512005011 |
| Material: | Brass |
| Connection: | 15 mm compression fitting |
| Pressure max. [bar]: | 16 |
| Control temperature [°C]: | 35 .. 60 |
| Temperature max. [°C]: | 99 |
| Weight [kg] | 0.23 |
| Customs tariff number | 84818051 (SE) |
Bonjour pouvez vous indiquer précisément les branchements: entrée eau froide ,entrée eau chaude et sortie mitigée
En partant du plus sur le bouton rotatif, le raccordement inférieur est l'entrée d'eau chaude (WW), le raccordement supérieur est la sortie d'eau mélangée ou l'eau sanitaire (BW) et l'entrée d'eau froide (KW) se trouve sur le côté opposé du bouton rotatif.
You have to be logged in to ask a question
interssant
geschikt om 2 stromen op temperatuur te mengen
26/10/2022, 23:14:00 of: Mr Heaco BV
prima
goed voor 2 stomen te mengen. goedkoop
11/08/2016, 01:17:28 of: Mr Peter
Prima
Nergens anders deze prijzen! Deze kan je ook gebruiken zonder biconkoppeling. Schroefdraad is een standaard 1/2".
