Turbo aircrete anchor FTP K 12 x 70 mm 78414
OEG no.: 806010106
Special anchor made of high-quality nylon for fixing in aerated concrete and solid plaster panels. After pre-drilling, it is inserted in pre-positioned installation using the setting tool FTP EK, thereby...
All product information Scope of deliveryRelated products
Suitable for porous concrete
Suitable for gypsum fibreboards

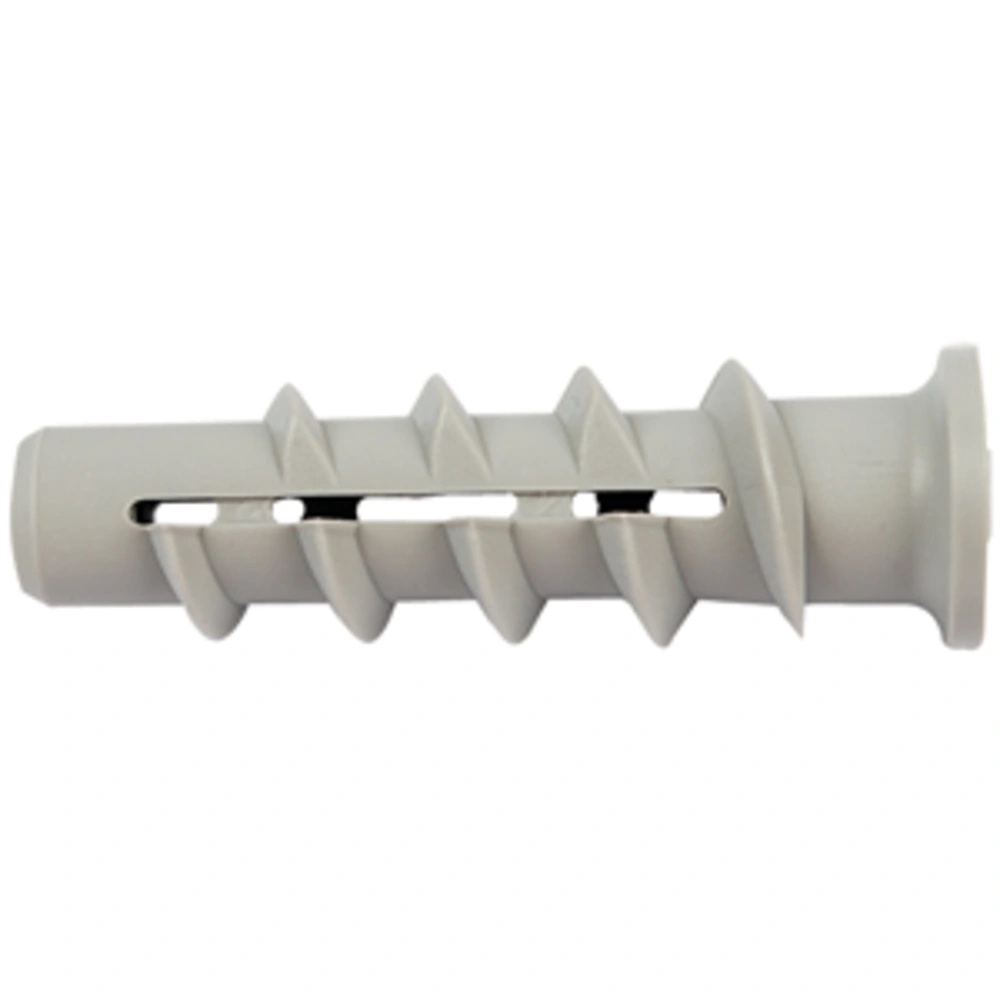

Special anchor made of high-quality nylon for fixing in aerated concrete and solid plaster panels. After pre-drilling, it is inserted in pre-positioned installation using the setting tool FTP EK, thereby the spiral-shaped outer thread taps itself into the building material with a positive fit. The aircrete anchor can be used in combination with wood screws and metric screws. The expansion-free anchoring allows for small edge and spacing distances and avoids splitting of plastered surfaces.
| Scope of delivery: | |||
| 1 x | Fischer setting tool FTP EK 10 | ||
| 10 x | Fischer Turbo aircrete anchor 12 x 70 mm | ||
For more information see Downloads
| OEG no. | 806010106 |
| PU | 10 pieces |
| Type: | Turbo aircrete anchor |
| Type: | FTP K |
| Dowel diameter [mm]: | 12 |
| Dowel length [mm]: | 70 |
| Matching screw diameter [mm]: | 9.0 - 10.0 |
| Bore hole diameter [mm]: | 12 |
| Bore hole depth min. [mm]: | 80 |
| Screw-in depth min. [mm]: | 50 |
| Screw-in depth max. [mm]: | 80 |
| Mounting type: | Pre-positioned installation |
| Material: | Nylon |
| Manufacturer | Fischer |
| Manufacturer number | 78414 |
| EAN | 4006209784143 |
| Weight [kg] | 0.12 |
| Notes |
Suitable for porous concrete
Suitable for gypsum fibreboards
|
| Customs tariff number | 39269097 |
