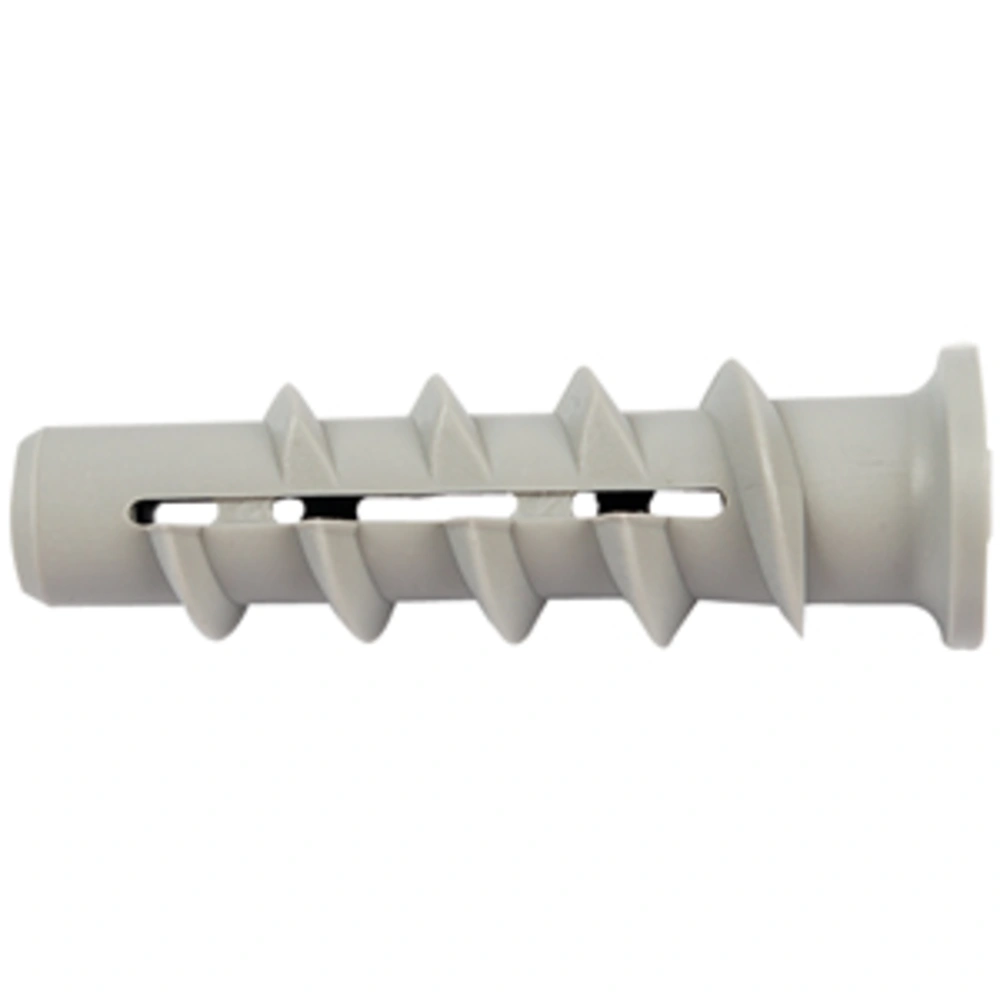

Turbo aircrete anchor FTP K 8 x 50 mm 78411
OEG no.: 806010103
Special anchor made of high-quality nylon for fixing in aerated concrete and solid plaster panels. After pre-drilling, it is inserted in pre-positioned installation using the setting tool FTP EK, thereby...
All product information Scope of deliveryRelated products
Suitable for porous concrete
Suitable for gypsum fibreboards
Special anchor made of high-quality nylon for fixing in aerated concrete and solid plaster panels. After pre-drilling, it is inserted in pre-positioned installation using the setting tool FTP EK, thereby the spiral-shaped outer thread taps itself into the building material with a positive fit. The aircrete anchor can be used in combination with wood screws and metric screws. The expansion-free anchoring allows for small edge and spacing distances and avoids splitting of plastered surfaces.
| Scope of delivery: | |||
| 1 x | Fischer setting tool FTP EK 4/6 | ||
| 25 x | Fischer FTP K Turbo aircrete anchor 8 x 50 mm | ||
For more information see Downloads
| OEG no. | 806010103 |
| PU | 25 pieces |
| Type: | Turbo aircrete anchor |
| Type: | FTP K |
| Dowel diameter [mm]: | 8 |
| Dowel length [mm]: | 50 |
| Matching screw diameter [mm]: | 4.0 - 4.5 |
| Bore hole diameter [mm]: | 8 |
| Bore hole depth min. [mm]: | 60 |
| Screw-in depth min. [mm]: | 35 |
| Screw-in depth max. [mm]: | 60 |
| Mounting type: | Pre-positioned installation |
| Material: | Nylon |
| Manufacturer | Fischer |
| Manufacturer number | 78411 |
| Weight [kg] | 0.14 |
| Notes |
Suitable for porous concrete
Suitable for gypsum fibreboards
|
| Customs tariff number | 39269097 |
