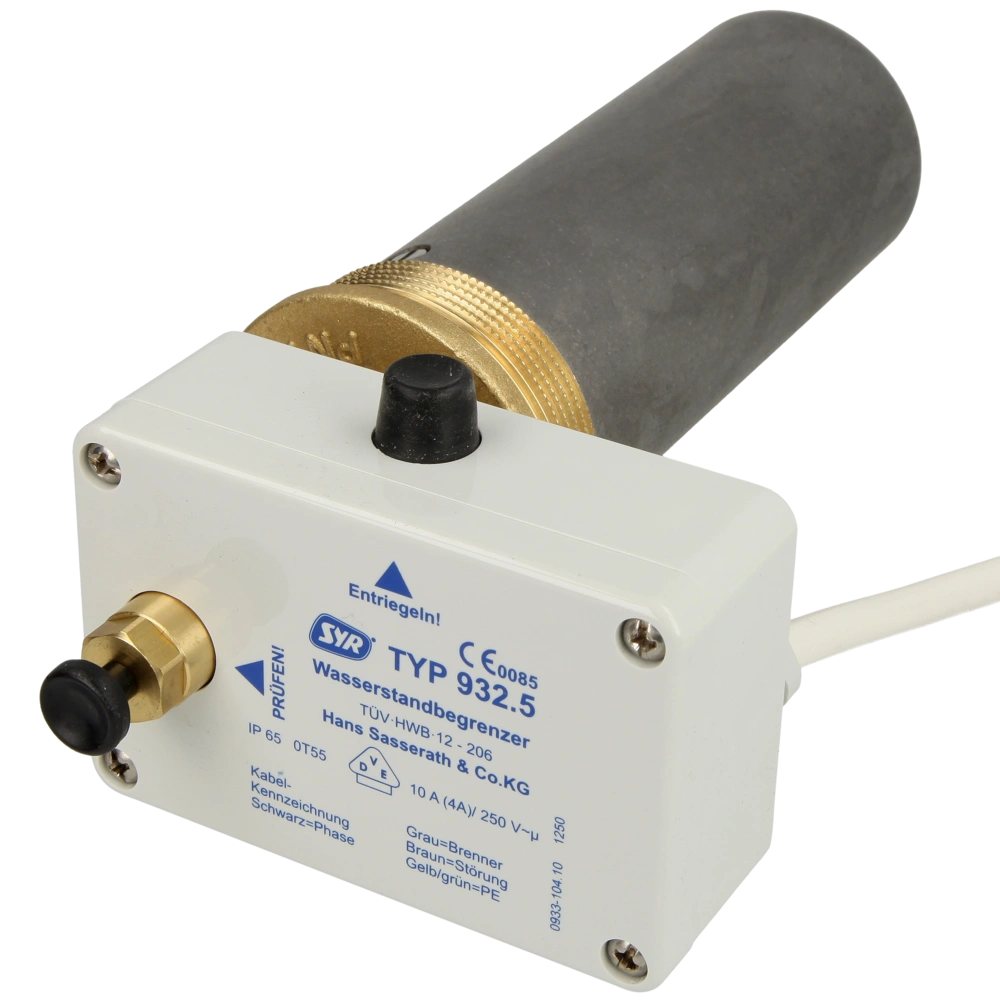

Water level limiter 932.5 with latch 0932.50.002

Compact water level limiter with latching function for protecting boilers in sealed heating systems against overheating or damage caused by dry running. The shortened design is particularly suitable for installation where space is restricted.

The safety device operates with a float made of heat-resistant glass, which magnetically transmits any drop in water level below a critical point to a microswitch. This interrupts boiler operation to prevent overheating or burn-out. The integrated safety mechanism latches automatically and must be reset manually by pressing the reset button once the fault has been remedied. A functional test of the water level limiter can be carried out without lowering the water level.

The water level limiter is screwed directly into the boiler via a connection nozzle with its main axis in a vertical position. The electrical switch unit can be rotated freely and replaced without draining the system.

Spare parts:
	Control unit for low-water cut-off 932
	Float for water level limiters 932 and 933

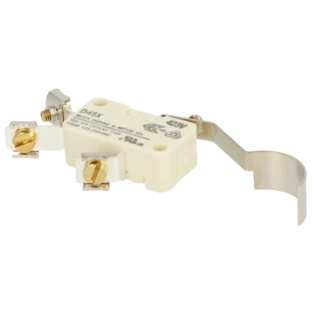

	Microswitch for water level limiters 932 and 933

For more information see Downloads
