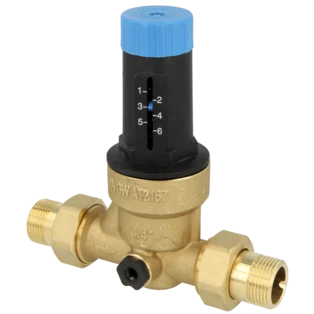

Watts pressure reducing valve DRV32N 1 1/4" 10015773
OEG no.: 512242730
The pressure reducing valve is DVGW-approved and noise-tested (class 1). The outlet pressure can be set from 1.5 to 6 bar. The valve has a sand-blasted stamped brass body, a spring hood made of impact-resistant...
All product information Scope of delivery
certified by DVGW
Suitable for drinking water

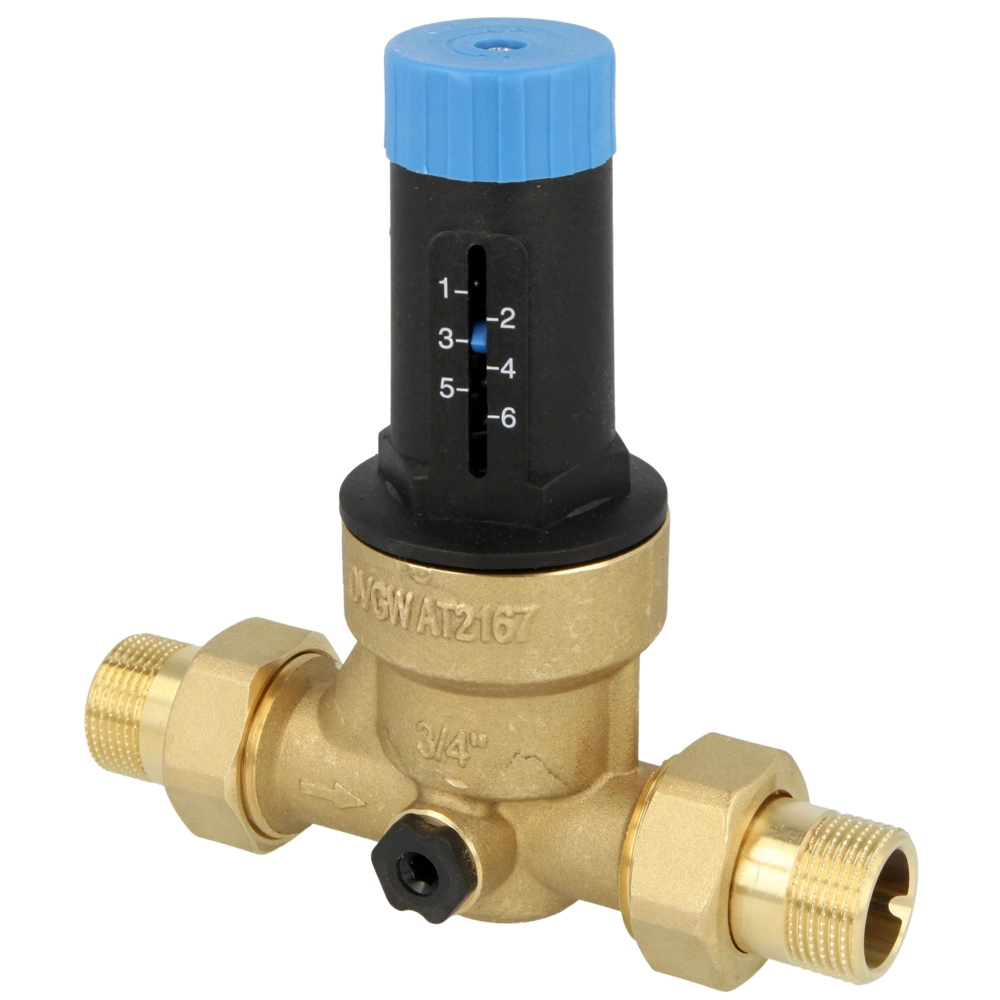

The pressure reducing valve is DVGW-approved and noise-tested (class 1). The outlet pressure can be set from 1.5 to 6 bar. The valve has a sand-blasted stamped brass body, a spring hood made of impact-resistant plastic, a diaphragm and O-rings made of NBR. The indication of the spring pressure is on both sides, and when installed, a pressure gauge can be attached to the front side in flow direction to the left as well as to the right. Pressure gauges are not included.
Note:
Separately available pressure gauge with article number 310776640.
| Scope of delivery: | |||
| 1 x | Pressure reducing valve | ||
| 2 x | Connection fitting | ||
For more information see Downloads
| OEG no. | 512242730 |
| Housing: | Brass |
| Control range [bar]: | 1.5 .. 6 |
| Type: | DRV 32 N |
| Total length [mm]: | 175 |
| Connection: | 1 1/4" |
| kv-value: | 9.9 m³/h |
| Pressure stage PN [bar]: | 16 |
| Operating temperature [°C]: | 30 |
| Manufacturer | Watts |
| Herstellernummer | 10015773 |
| EAN | 8019001017025 |
| Weight [kg] | 2.16 |
| Notes |
certified by DVGW
Suitable for drinking water
|
| Customs tariff number | 84811099 (IT) |
Question
(Connection: 2")
Ce produit est compatible pour une résidence comprenant 25 logements? Le reseau est en diamètre 2" (50)
Answer OEG:
Valeur en KV 18
Merci de nous donner plus d´informations: Hauteur du bâtiment, longueurs des câbles, etc
You have to be logged in to ask a question
29/10/2014, 22:09:53 of: Mr SHV
Top Druckminderer
Sehr zuverlässiger Druckminderer von Watts
Technical data sheet (PDF)
- 0.36MB
