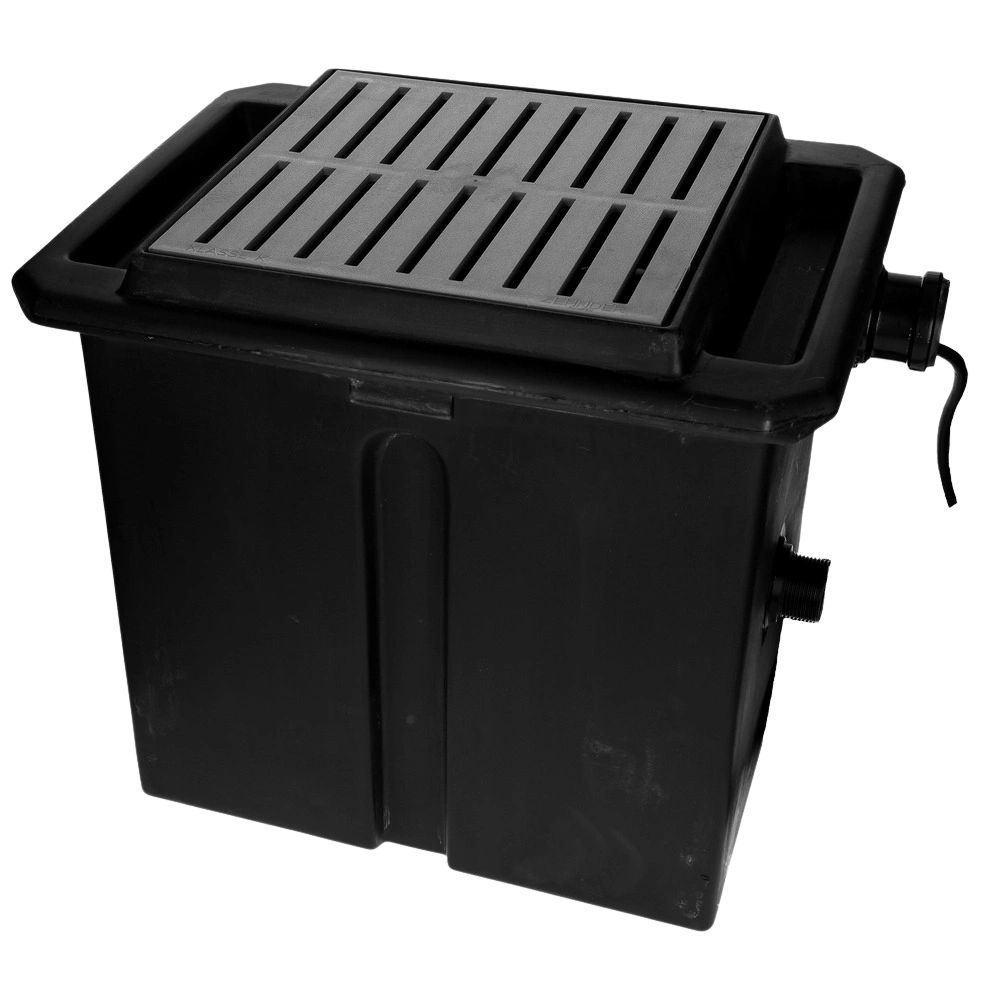

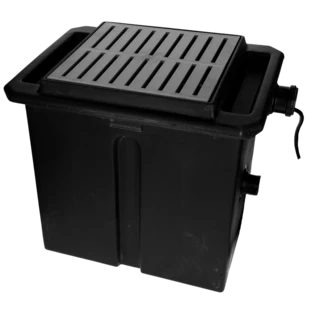

Zehnder waste water lifting unit UFB 200/35 under ground
OEG no.: 515200214
The waste water lifting unit (under ground) is suitable for the pumping of domestic waste water without faeces from washing machines, showers and washbasins. The unit features a collecting container...
All product information Scope of deliveryThe waste water lifting unit (under ground) is suitable for the pumping of domestic waste water without faeces from washing machines, showers and washbasins. The unit features a collecting container made of polyethylene with 20 l net capacity, a siphon and sand trap as well as an accessible plastic grating cover. The integrated waste water submersible pump is equipped with a float switch. The port for air vent and cable gland is DN50 (HT) each, the inlet connection piece DN50 (HT) is also included and can be installed by drilling a hole in the container on-site.
| Scope of delivery: | |||
| 1 x | lifting unit | ||
| 1 x | 10 m ready-to-plug-in connection cable | ||
For more information see Downloads
| OEG no. | 515200214 |
| Delivery head [m]: | 7.5 |
| Output [W]: | 300 |
| Voltage [V]: | 230 |
| Type: | UFB 200/30 |
| Delivery rate [m³/h]: | 7 |
| Rated current [A]: | 1.3 |
| Connection: | 1 1/4" |
| Protection type [IP]: |
 IP68
|
| Speed: | 2,800 rpm |
| Media temperature max. [°C]: | 40 |
| Manufacturer | Zehnder |
| EAN | 4014440114919 |
| Weight [kg] | 6.1 |
| Customs tariff number | 84138200 |
