This OEG buffer storage tank fulfills the highest demands on heat storage, particularly where heat generators are used which achieve their optimal efficiency only under full load (e...
Tutte le informazioni sul prodottoAccumulatori singoli A+
La consegna tramite l'azienda spedizioni
10 anni di garanzia
High Quality
TÜV Rheinland

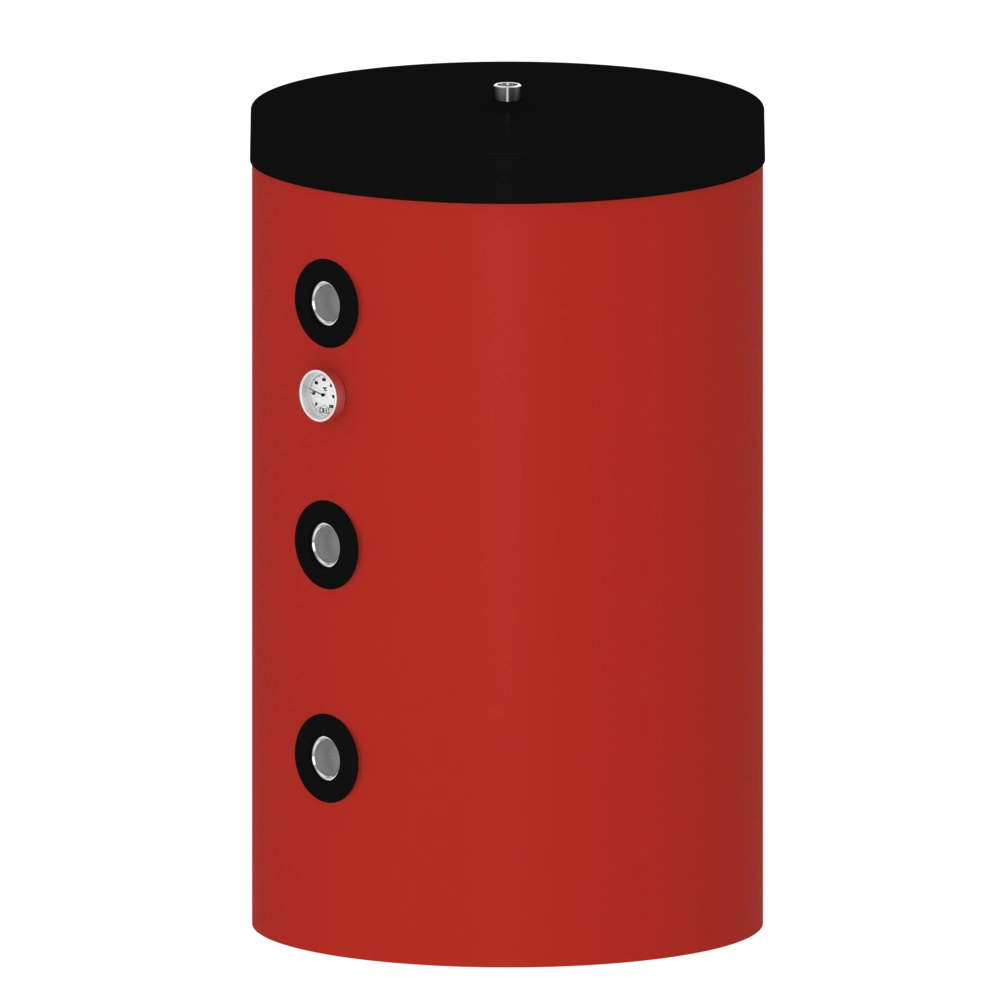

This OEG buffer storage tank fulfills the highest demands on heat storage, particularly where heat generators are used which achieve their optimal efficiency only under full load (e.g.: many solid fuel boilers). During the operation of the heat generator, more heat is generated than is retrieved by the consumers. The excess heat then heats up the water of the buffer tank and is stored there.
During stand-still periods this heat can be retrieved later as needed.
The OEG buffer storage tank is suitable as a primary cylinder for solar systems, heat pumps, wood or pellet boilers and can also be used in district heating systems.

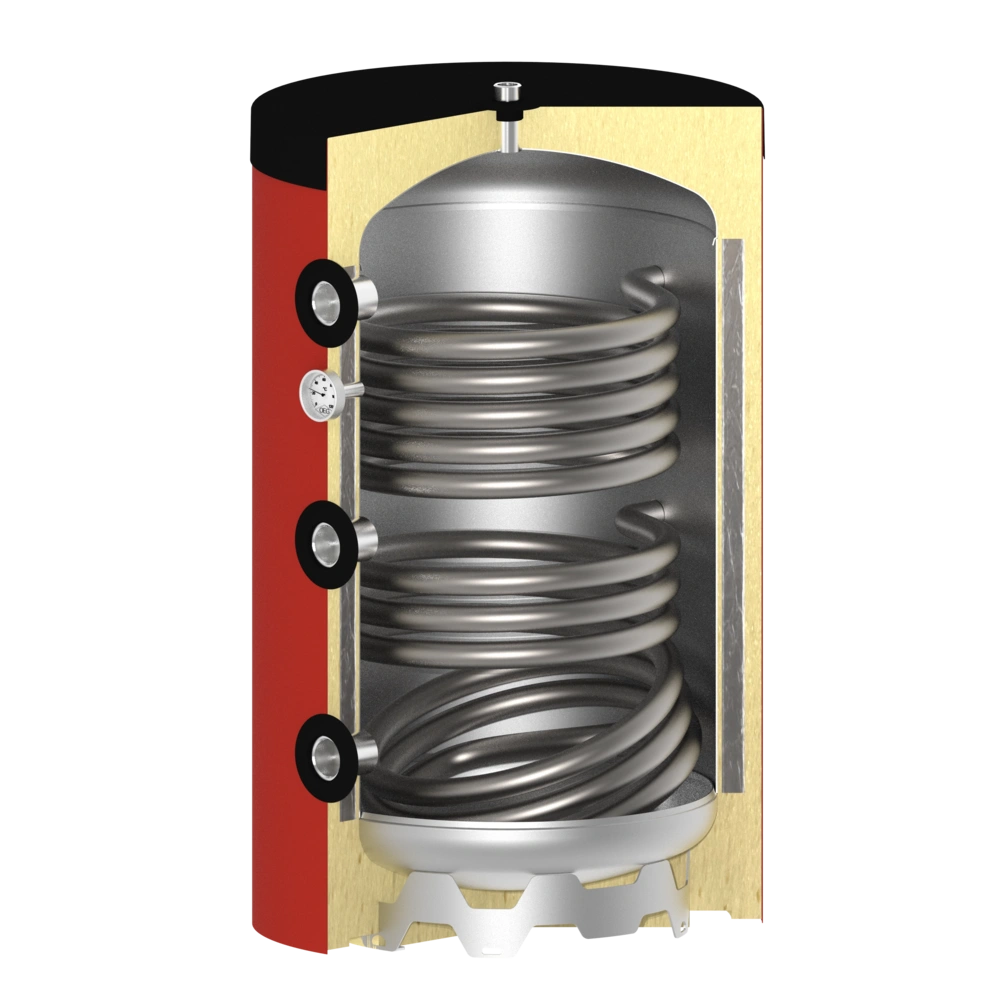

Due to the two additional smooth-pipe heat exchangers, more heat generators can be integrated and their energy can be additionally fed into the buffer tank.
Per ulteriori informazioni consultare Download
Capacità nominale a norma EN 12897: | 150 |
Colore: | red |
Isolamento secondo la DIN 4102-1 con classe di protezione antincendio B2: | solid foamed insulation |
Peso [kg]: | 70 |
Altezza totale con isolamento [mm]: | 1020 |
Diametro con isolamento [mm]: | 610 |
Misura diagonale [mm]: | 1170 |
Classe di efficienza energetica conforme al regolamento UE numero 812/2013: | A+ |
Perdita termica secondo EN 12897 [W]: | 28 |
Perdite di calore in stand-by secondo la norma EN 12897 [kWh/24h]: | 0,672 |
Volume effettivo conforme alla norma EN 12897 [l]: | 156 |
pmax Serbatoio [bar]: | 3 |
tmax Serbatoio [°C]: | 95 |
tmin Serbatoio [°C]: | 20 |
Scambiatore di calore a tubo liscio [quantità]: | 2 |
Scambiatore di calore a tubo liscio superficie inferiore [m²]: | 0,77 |
Scambiatore di calore a tubo liscio superficie superiore [m²]: | 0,63 |
Scambiatore di calore a tubo liscio volume in basso: | 5 |
Scambiatore di calore a tubo liscio volume in alto: | 4,20 |
pmax Scambiatore di calore a tubo liscio [bar]: | 10 |
tmax Scambiatore di calore a tubo liscio [°C]: | 130 |
Provvedimento di raccordi: | 180° |
Raccordo sonda [Ø mm / morsetto]: | 6 mm |
Raccordo generatore di calore [filettatura]: | R 1" |
Raccordo scambiatore di calore [filettatura]: | Rp 1" |
Raccordo resistenza elettrica [filettatura]: | Rp 1 1/2" |
Riscaldatore a vite con profondità massima a immersione [mm]: | 400 |
