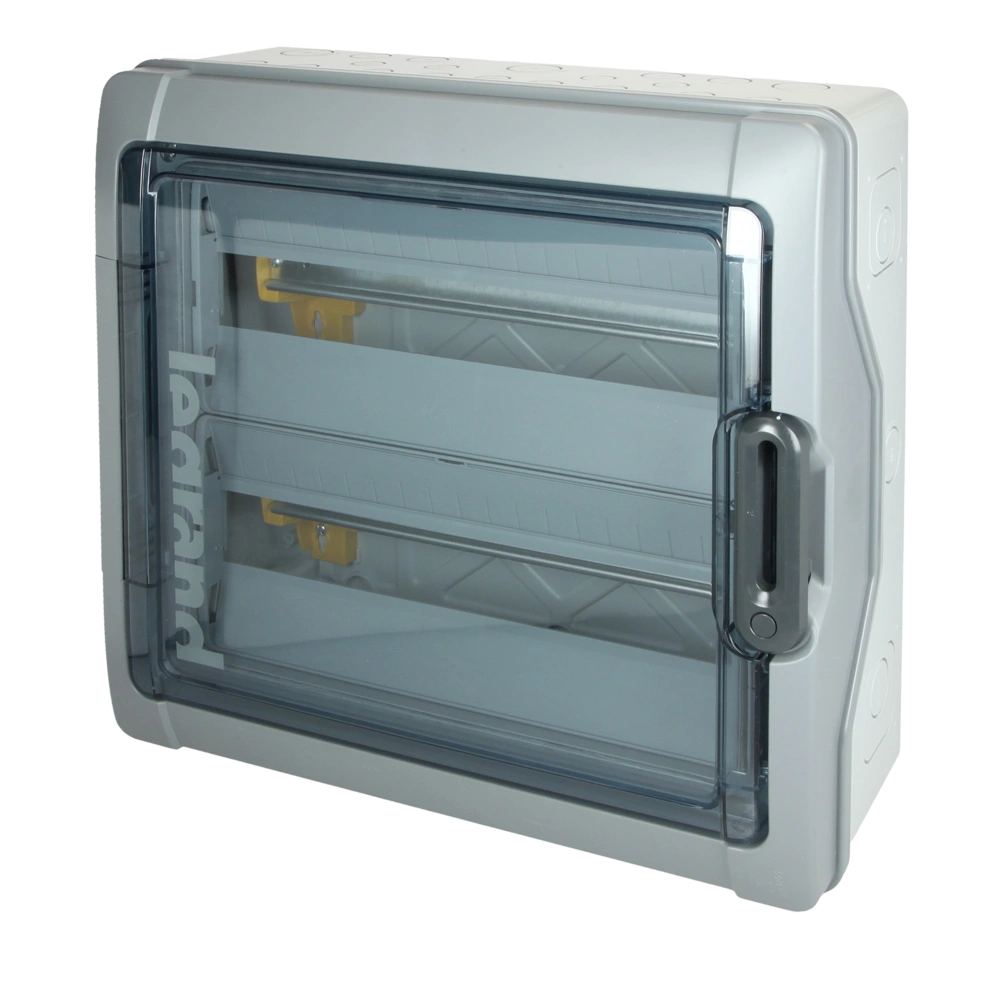

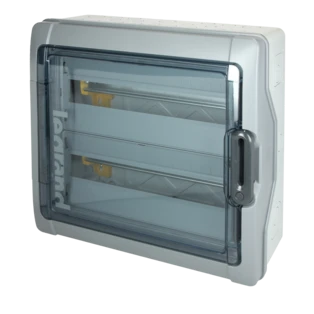

The Legrand Plexo³ surface-mounted wet room distributor is equipped with a reversible, transparent door, a lock can be retrofitted. Behind the height-adjustable mounting rail there is enough space left (45 mm) for cabling. Thus, modular miniature circuit breakers and load breakers can be installed. The distributor is also equipped with knock-out openings for two different kinds of fixtures. Whether the cable inlet is done from the top or from below, the new distributor does it all.
Technical data:
- for devices up to 63 A
- type of protection: IP 65 - IK09
- self-extinguishing: 650°C
- including N and PE terminals
- colour of housing: tele-grey similar to RAL 7047
- temperature resistance: from -20° C up to +70° C
- dimensions (H x W x D): 432 x 448 x 161 mm
Per ulteriori informazioni consultare Download
| Codice OEG | 711000496 |
| Distributor rows: | 2-row |
| Norma UE: | 61439-3, 62208 |
| Unità: | 36 |
| Lunghezza x larghezza x altezza [mm]: | 448 x 161 x 432 |
| Type: | Plexo³ |
| Tipo di sicurezza [IP]: | 65 |
| Indice di resistenza IK: | 9 |
| Tipo di montaggio: | Sopra intonaco |
| Materiale: | Plastica |
| Resistenza alla temperatura [°C]: | -20 .. 70 |
| Produttore | Legrand |
| Numero di produttore | 601986 |
| EAN | 3245066019864 |
| Peso [kg] | 4,73 |
| Avvisi |
Ritardante di fiamma
|
| Codice doganale | 85381000 (PL) |
