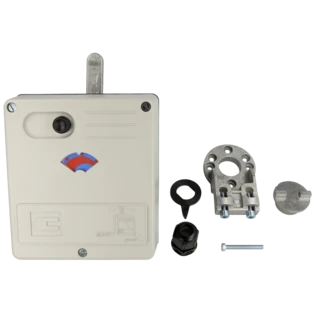

servomotore VMM40 VMM40

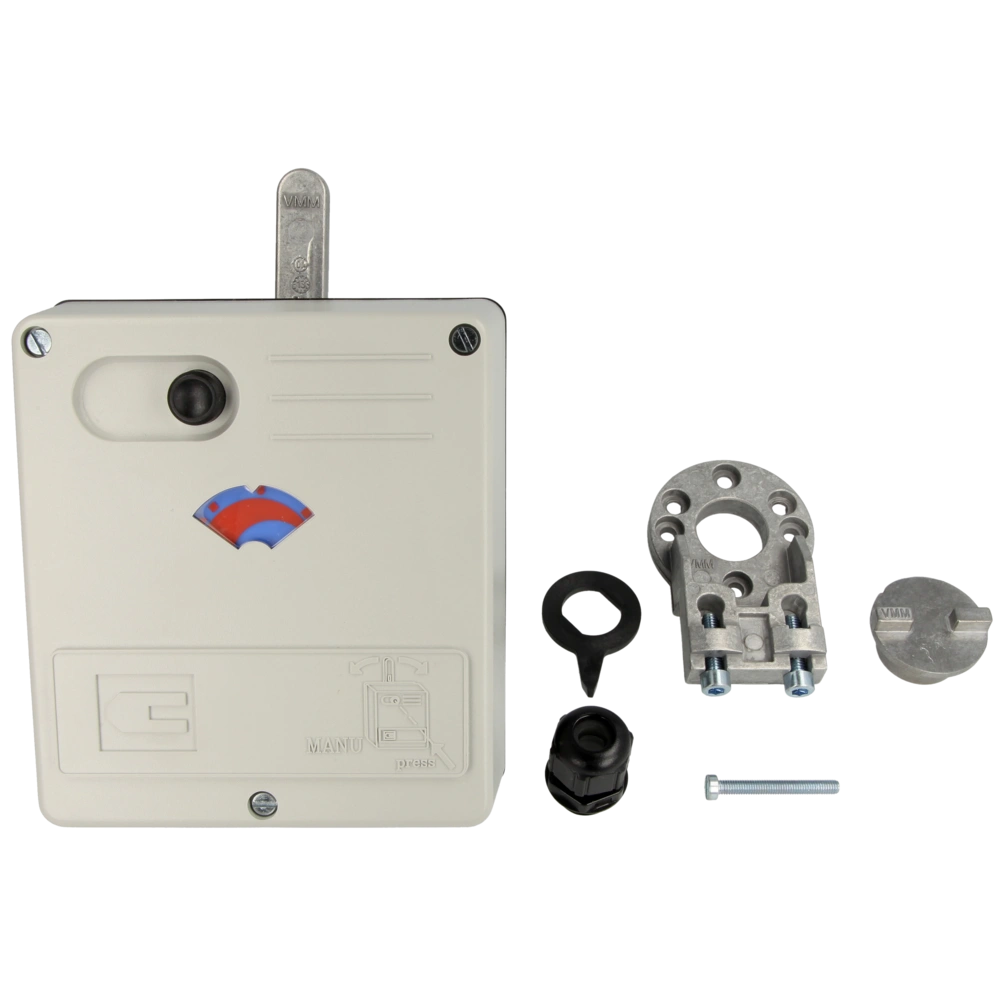

The CENTRA VMM20, VMM30 and VMM40 servomotors are special geared motors with high actuating force for heating applications, manufactured according to the latest knowledge and possibilities. Preferably used with three-way and four-way mixing valves with sockets and flange connections. Proven CENTRA quality and long service life. The actuator is equipped with 2 limit switches (set to 90°) to limit the travel. Manual adjustment is carried out via a release button in the cover and a hand lever. The position indicator of the VMM is integrated in the cover and has a reversible visual scale.

Technical data:
- Connection for 230 V, 50 Hz (optionally 24 V, 50 HZ)
- Motor short-circuit proof.
- Power consumption 3.5 VA.

Additional equipment:
Auxiliary switch and potentiometer on request. Protection class IP 54, max.
Permissible ambient temperature 60°C.

Note:
VMM20: for all mixing valves ZR, DR, DR-G, DN 15 ... 65 and
DRU mixing valves:
- VMM20-24: see VMM 20
- VMM30: for all ZR, DR-G mixing valves, in nominal sizes 80 ... 150
- VMM30-24: see VMM 30
- VMM40: for all mixing valves ZR, DR, DR-G, in nominal diameter DN 200
- VMM40-24: see VMM40

Technical data:
- Running time min.: over actuating range/90°
- NM 1: Nominal torque
- NM 2: Minimum breakaway torque

Per ulteriori informazioni consultare Download
