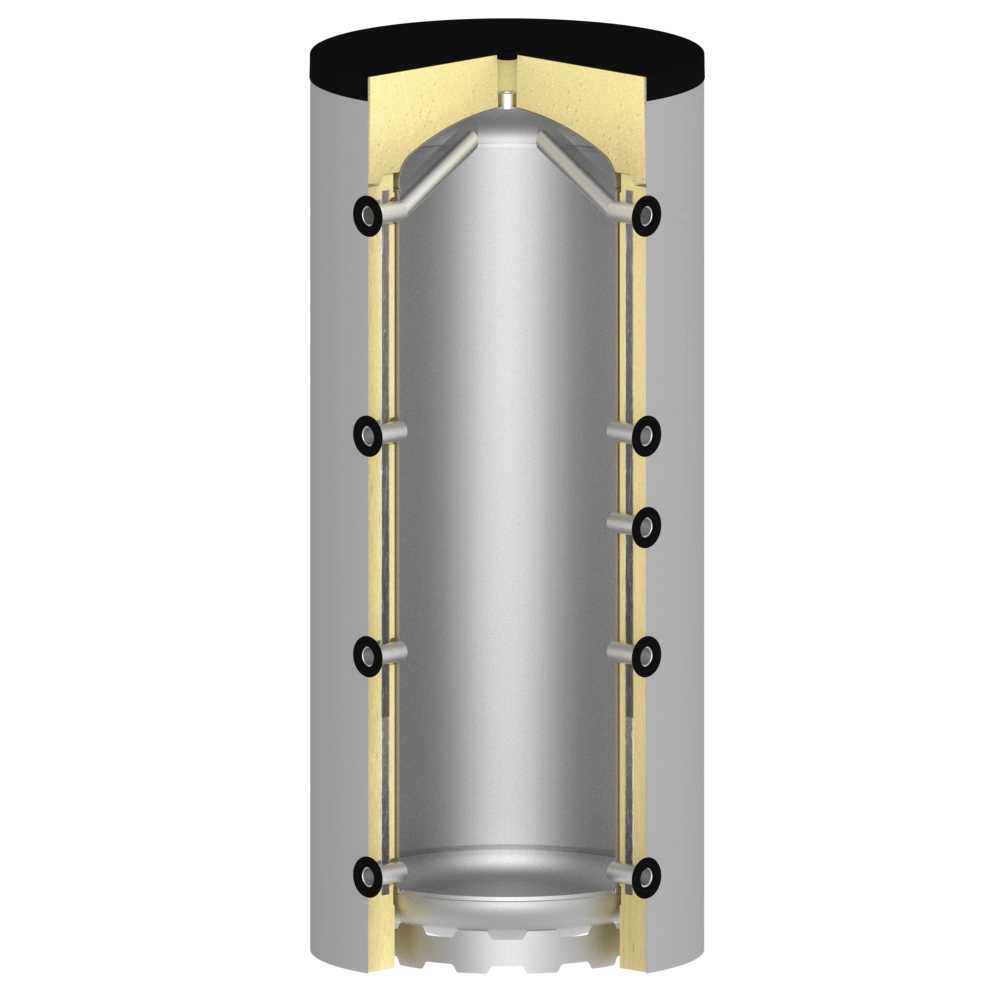

This buffer storage tank fulfills the highest demands on heat storage. Due to its highly efficient insulation, the heat-retaining loss is significantly reduced compared to common storage tanks...
All product information10-year warranty
High Quality
TÜV Rheinland
Delivery by forwarding agency
This buffer storage tank fulfills the highest demands on heat storage. Due to its highly efficient insulation, the heat-retaining loss is significantly reduced compared to common storage tanks. The purpose of the buffer storage tank is to balance the difference between generated heat and consumed heat. So the heat generators can be operated more independently from the consumption.
For more information see Downloads
OEG no. | 516005340 |
Smooth-pipeheatexchanger: | 0 |
Installation type: | Vertical storage tank |
Manufacturer | OEG |
Notes |
10-year warranty High Quality TÜV Rheinland Delivery by forwarding agency |
Customs tariff number | 84191900 |
Rated volume according to EN 12897: | 1000 |
Colour: | silver |
Insulation according to DIN 4102-1 Fire Protection Class B2: | removable segment insulation |
Weight [kg]: | 243 |
Total height including insulation [mm]: | 2350 |
Diameter without insulation [mm]: | 790 |
Diameter with insulation [mm]: | 1015 |
Tilt height [mm]: | 2280 |
Heat retaining loss according to EN 12897 [W]: | 55 |
Heat losses in stand-by mode according to DIN 12897 [kW/h / 24 h]: | 1,320 |
Real volume according to EN 12897 [l]: | 999 |
pmax Tank [bar]: | 3 |
tmax Tank [°C]: | 95 |
tmin Tank [°C]: | 20 |
Connection layout: | 90° |
Connection sensor [Ø mm / terminal]: | 6 mm |
Connection heat generator [thread]: | Rp 1 1/2" |
Connection heating element [thread]: | Rp 1 1/2" |
Max. immersion depth of screw-in heater [mm]: | 800 |
1000 L: Buffer storage tank 1,000 l cote de basculement: 2.280 mm
1500 L: Buffer storage tank 1,500 l cote de basculement: 2.190 mm
2250 L: Buffer storage tank 2,250 l cote de basculement: 2.240 mm
2600 L: Buffer storage tank 2,600 l silver cote de basculement: 2.530 mm
Nous vous recommandons un ballon d'eau fraîche instantanée (ballon hygiénique) de 800 ou 1000 l
Bonjour,
La garantie sur nos ballons est de 10 ans.
Le ballon doit d'abord être repris et vérifié par notre service technique pour pouvoir donner un pronostic sur la prise en garantie.
Cordialement,
Votre équipe OEG
Bonjour,
Hauteur totale avec isolation: 2310 mm
Diamètre sans/avec isolation: 790/990 mm
Basculement: 2280 mm
Cordialement,
Votre équipe OEG
Hallo, vielen Dank für Ihre Anfrage. Wr haben Energielabel für alle Speicher bis 500 Liter (gem. EU-Verordnung vorgeschrieben). Alle weiteren Speicher werden nach und nach lt. EU-Vorgaben gelabelt. Hier ist allerdings eine Frist bis Ende 2017 von der EU vorgegeben.
