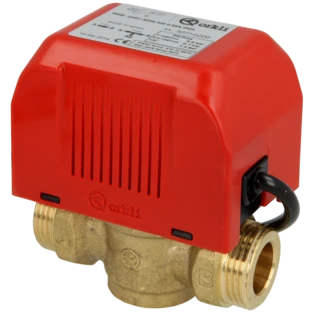

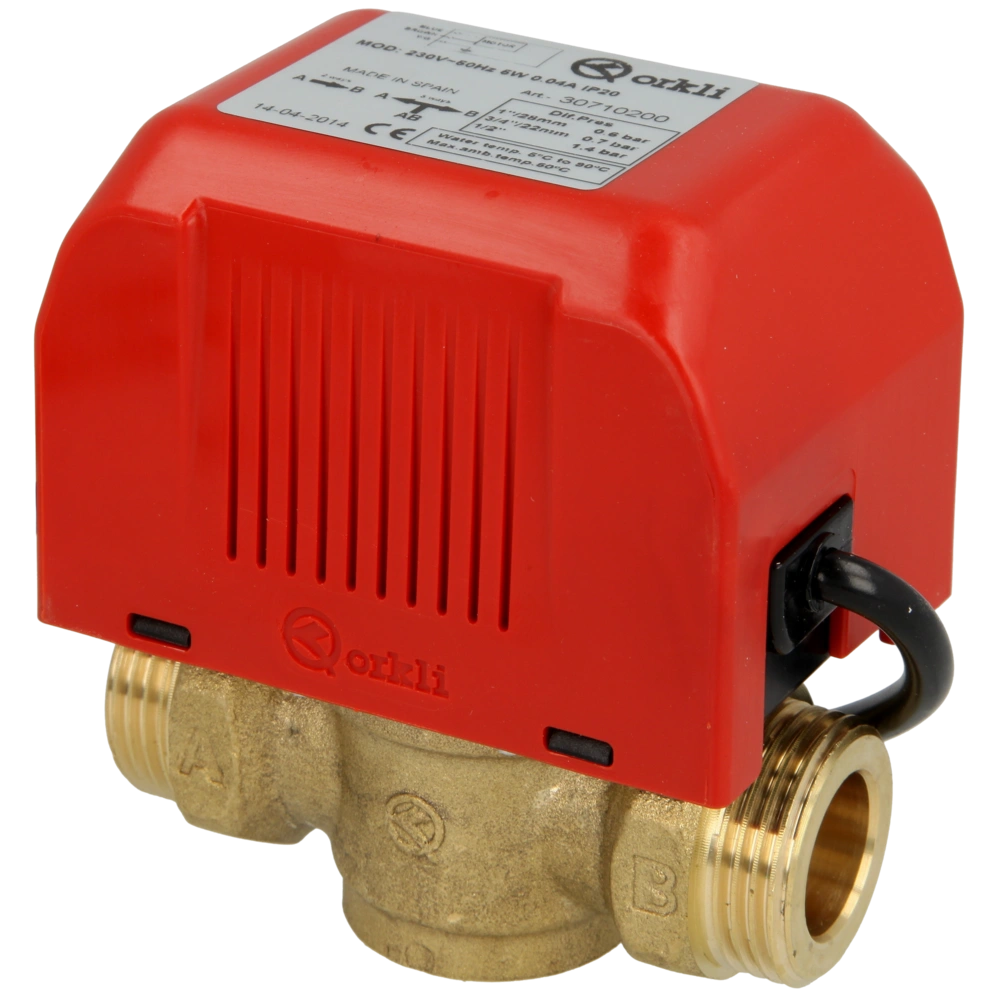

2-way valve for heating and solar systems. Versatile for the isolation and diversion of closed heating circuits. The valve closes spring-loaded without voltage...
All product informationRelated products
CE
2-way valve for heating and solar systems. Versatile for the isolation and diversion of closed heating circuits. The valve closes spring-loaded without voltage. There is no need for a changeover contact. Being suitable for high temperatures and water/glycol mixtures, it is also ideal for the use in solar thermal systems. For emergency operation, the motor is provided with a manual opening.
For more information see Downloads
| OEG no. | 512300025 |
| Connection size: | 1" ET |
| Auxiliary switch: | No |
| Voltage [V]: | 230 |
| Media temperature [°C]: | -20 .. 160 |
| Pressure max. [bar]: | 10 |
| Power consumption [W]: | 5 |
| Closing time [s]: | 5 |
| Opening time [s]: | 12 |
| Cable length: | 0.6 |
| Media: | Water with up to 50 % glycol |
| Housing: | Brass |
| Seal: | EPDM |
| Manufacturer | Orkli |
| Manufacturer number | 30713200 |
| Weight [kg] | 1.32 |
| Notes |
CE
|
| Customs tariff number | 84818059 (EE) |
Ventil ist mit Federrückzug und ist ohne Strom zu fuxieren? Was bedeutet Endlagenschalter?
Guten Tag,
das Ventil schließt mittels Federrückzug. Ohne Strom fährt es in die Ausgangsposition (geschlossen) zurück.
Es ist ohne Handverstellung. Ein Endlagenschalter gibt ein Signal wenn das Ventil geschlossen ist, z.B um eine Pumpe dann abzuschalten.
Mit freundlichen Grüßen
