2-way zone valve 1" SF25-2 230V

(0)
There are questions about this product (2)
OEG no.: 512300520

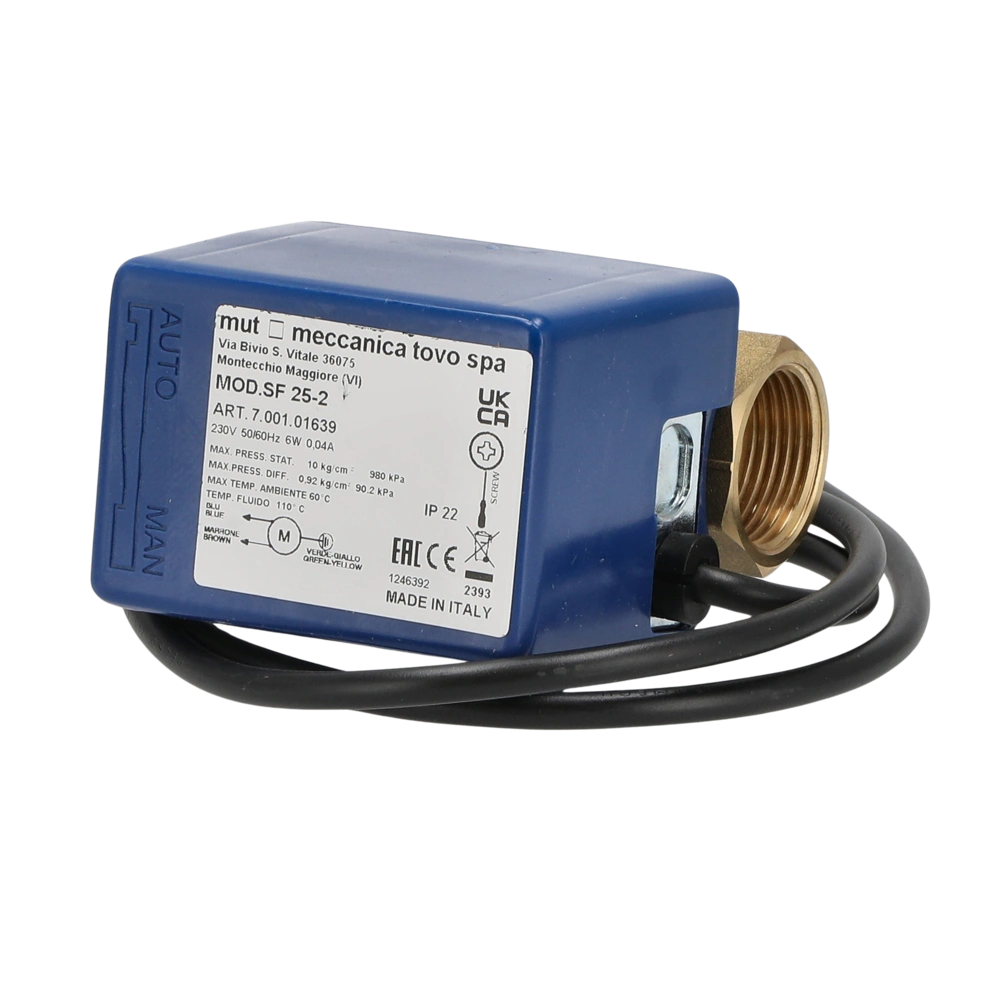

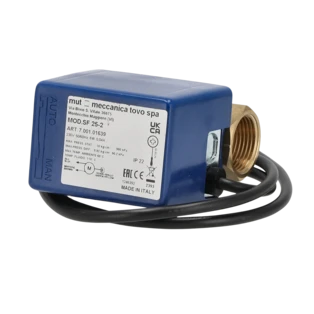

Zoom 2-way zone valve 1" SF25-2 230V

Motorised 2-way zone valve for heating, cooling and solar circuits. The valve is controlled via an electric motor and is closed when currentless. Mounting of up to two auxiliary switches is possible...

All product information
Related products
CE

CE
CE
Wipe 'n' Buy ®

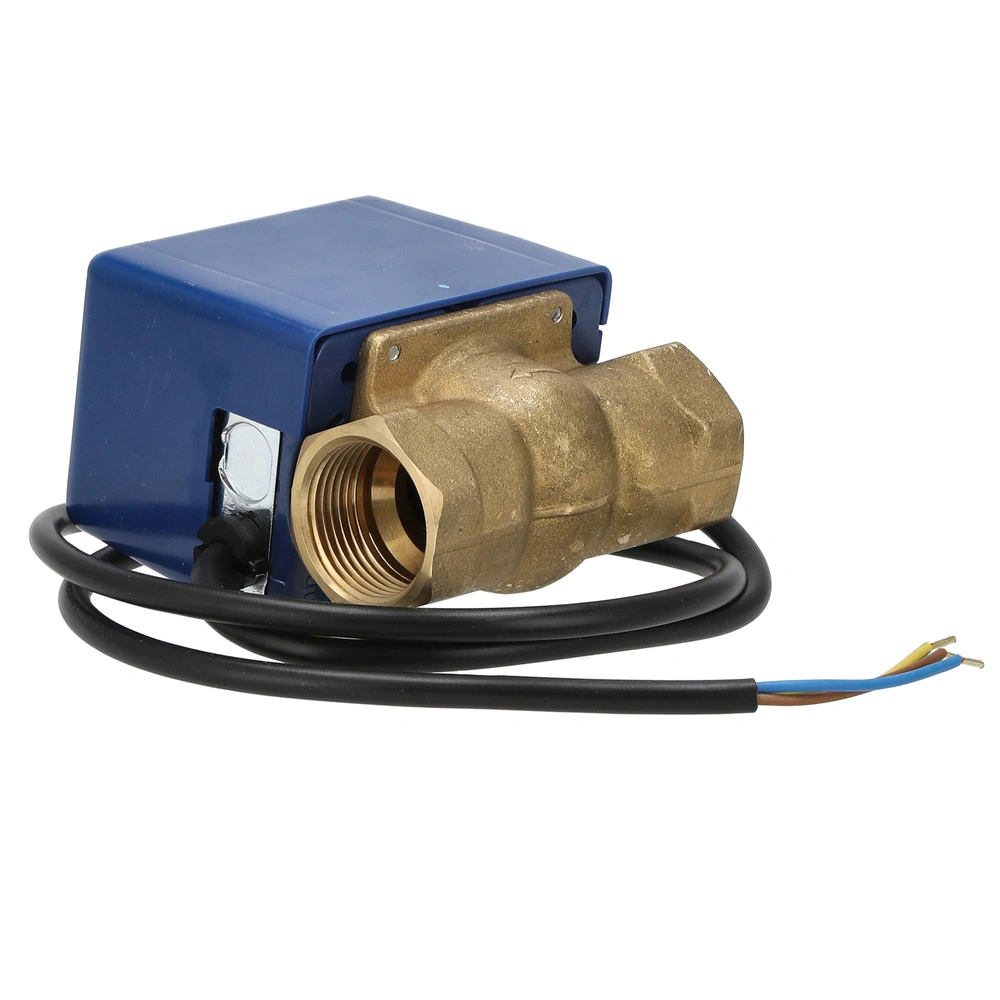

Motorised 2-way zone valve for heating, cooling and solar circuits. The valve is controlled via an electric motor and is closed when currentless. Mounting of up to two auxiliary switches is possible. The valve is equipped with an external lever for emptying and filling the pipe system. The lever permits manual positioning of the shut-off to an intermediate position. The reset is automatic as soon as the valve is electrically powered again.


For more information see Downloads


OEG no. 512300520
kvs-value [m³/h]: 9.0
Total length [mm]: 92
Output: 5 - 6 W
Material: Brass
Voltage [V]: 230 ~
Connection: 1" IT
Protection type [IP]:
IP22

IP22
IP22
Operating pressure max. [bar]: 10
Operating temperature [°C]: 5 .. 110
Closing time: 4 sec.
Opening times: 10 sec.
Cable length: 1
Weight [kg] 1.12
Notes
CE

CE
CE
Customs tariff number 84818059 (IT)
en
Question

Commercialisez-vous une version de la vanne 512300520 avec un ou deux contacts auxiliaires mentionnés dans la notice : "Toutes les versions peuvent recevoir un micro-swich unipolaire (version M1), bipolaire (version M1S), ou deux micro-switch (version M2 ou M2S). Il existe un kit pour le montage du micro-switch unipolaire même pour les versions non prévues à l’origine (kit M1). On ne peut pas monter le kit M1S, M2 ou M2S pour les versions non équipées à l’origine." ?

Answer OEG:

Nous allons nous renseigner auprès de notre fournisseur

en
Question

Ich suche den Stellmotor für 3-WegeVentil mut Mod. SF 25 E 230V / 5Watt - 0,04A

Answer OEG:

Guten Tag,

diesen Stellantrieb scheinen wir nicht im üblichen Sortiment zu haben. Wir haben eine Angebotsanfrage an den Lieferanten gestellt. Sobald wir ein passendes Angebot haben, werden wir Ihnen dieses umgehend zusenden.

Mit freundlichen Grüßen
