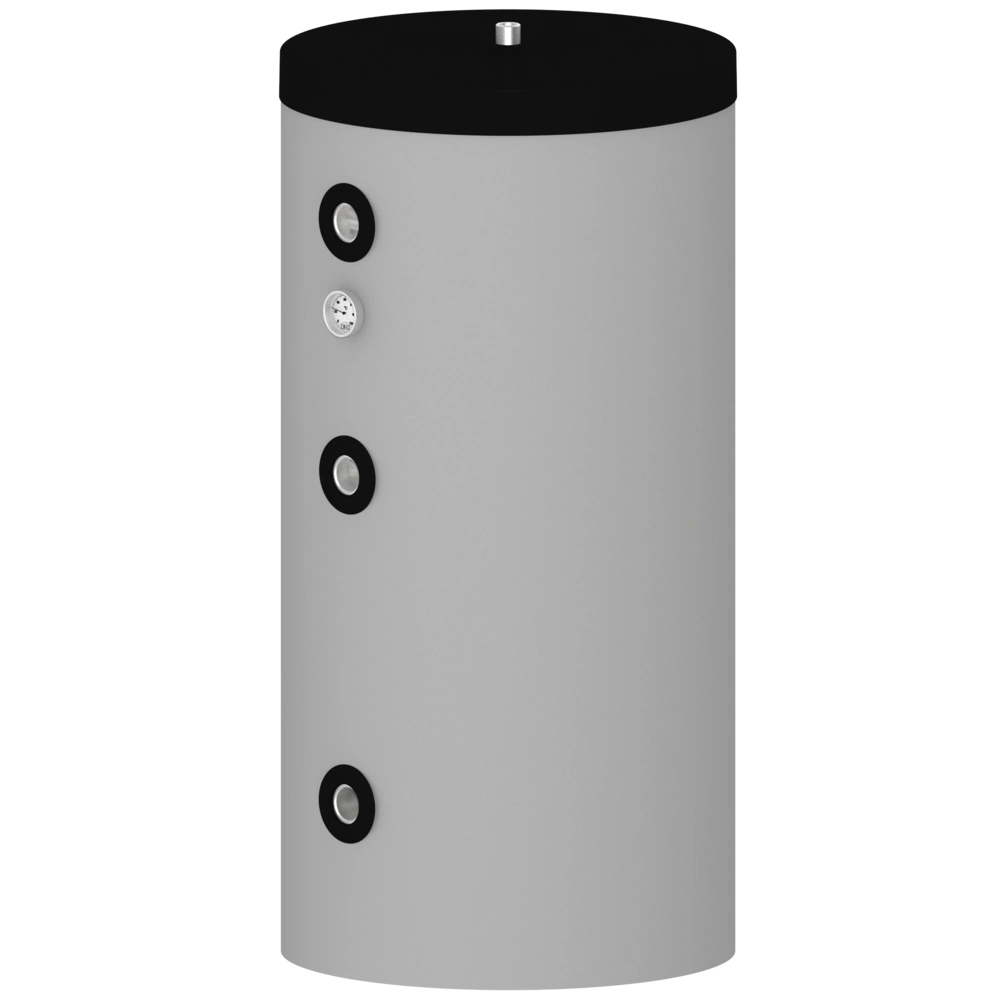

Buffer storage tank for cooling and heating 200 litres
OEG no.: 516005760
Premium buffer storage tank that can be used for cooling and heating. To protect the surface from condensation during the cooling function, the cylinder is equipped with a special, high-quality anti-corrosion coating...
All product information
Delivery by forwarding agency
Ideal for heat and cold storage
36 months warranty
High Quality

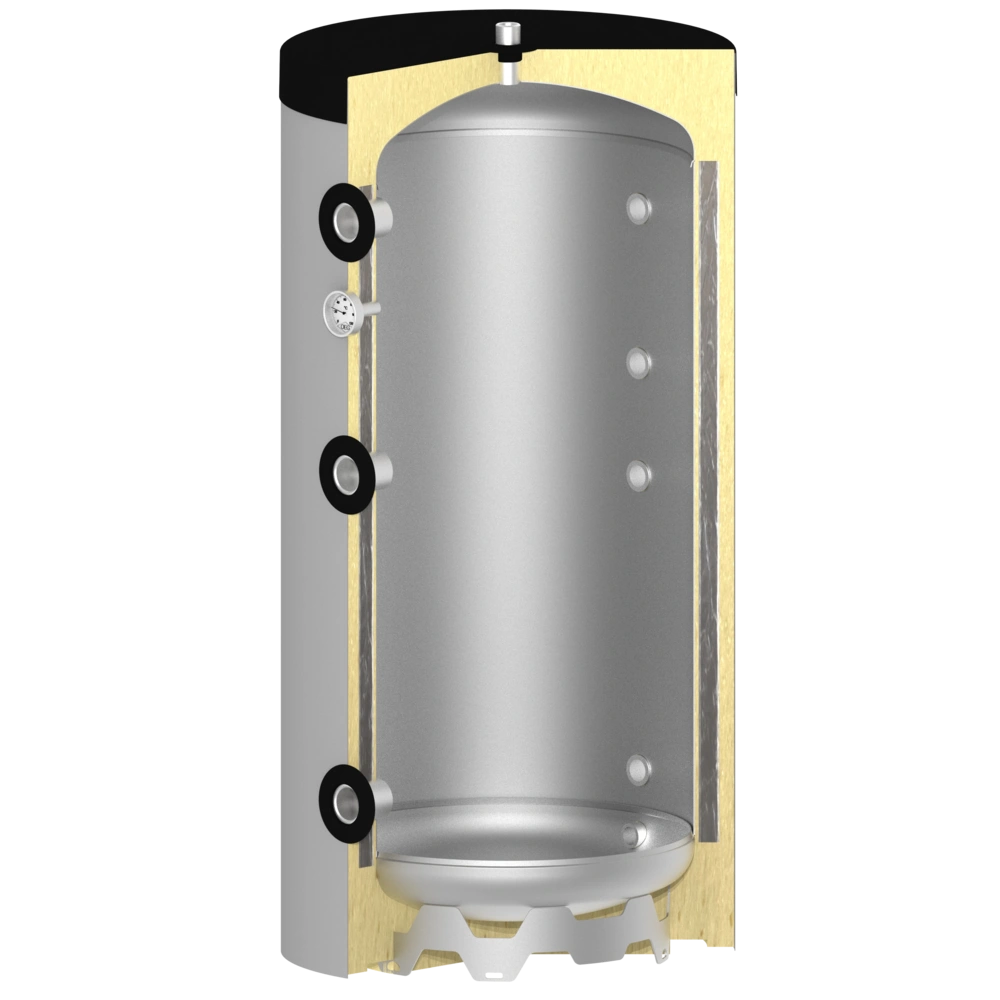

Premium buffer storage tank that can be used for cooling and heating. To protect the surface from condensation during the cooling function, the cylinder is equipped with a special, high-quality anti-corrosion coating. REVERSE+ storage tanks are ideal for the use in conjunction with a heat pump that is supposed for heating and cooling. Since condensation can form at low storage tank temperatures in conjunction with higher ambient temperatures, it is necessary to specially protect the system components involved. Accordingly, the surface of the REVERSE+ storage tanks is specially protected by the coating. OEG's high-quality A⁺ insulation ensures the lowest temperature losses also with these storage tanks.
For more information see Downloads
| OEG no. | 516005760 |
| Tank capacity [litres]: | 200 |
| Numberofsmooth-pipeheatexchangers: | 0 |
| Type: | PS 200-K |
| Operating mode: | monovalent |
| Installation type: | Vertical storage tank |
| Manufacturer | OEG |
| Brand | Reverse+ |
| Energy efficiency class | A+ |
| ErP-Label |
|
| Notes |
Delivery by forwarding agency
Ideal for heat and cold storage
36 months warranty
High Quality
|
| Customs tariff number | 84191900 |
General
| Colour: | silver |
| Insulation according to DIN 4102-1 Fire Protection Class B2: | solid foamed insulation |
| Weight [kg]: | 60 |
| Total height including insulation [mm]: | 1265 |
| Diameter with insulation [mm]: | 610 |
| Tilt height [mm]: | 1375 |
| Energy efficiency class according to EU regulation no. 812/2013: | A+ |
| Heat retaining loss according to EN 12897 [W]: | 31 |
| Heat losses in stand-by mode according to DIN 12897 [kW/h / 24 h]: | 0,744 |
| Real volume according to EN 12897 [l]: | 206 |
| pmax Tank [bar]: | 3 |
| tmax Tank [°C]: | 95 |
| tmin Tank [°C]: | 10 |
| tmax Ambient air [°C]: | 30 |
| Max. rel. air humidity [%]: | 80 |
| Connection layout: | 180° |
| Connection sensor [Ø mm / terminal]: | 6 mm |
| Connection heat generator [thread]: | R 1" |
| Connection heating element [thread]: | Rp 1 1/2" |
| Max. immersion depth of screw-in heater [mm]: | 500 |
Question
(Tank capacity [litres]: 400 | Colour: Silver)
Kan ik op dit buffervat een cascade opstelling van 40kw op aansluiten? op een buffervat van 500l?
Answer OEG:
Ja, is mogelijk
Question
(Tank capacity [litres]: 400 | Colour: Silver)
Hallo, bis zu welcher Größe können Sie Pufferspeicher liefern?
Answer OEG:
Standardmäßig haben wir den Pufferspeicher zum Kühlen und Wärmen bis zu einem Nennvolumen von 1.325 Liter.
Alle andere Volumen können dann über das Anfrageformular angefragt werden.
Question
(Tank capacity [litres]: 400 | Colour: Silver)
Bonjour Pouvez-vous me donner toutes les spécifications techniques de ce ballon, surtout le nombre de prises disponibles et leur section Merci d'avance
Answer OEG:
Merci de télécharger la fiche technique dans les Downloads. Vous trouvez le plan du ballon dans la notice d´installation à la page 26.
Question
(Tank capacity [litres]: 400 | Colour: Silver)
Graag technische fiche
Answer OEG:
Alle technische informatie van onze producten kunt u vinden op onze website.
Geef het betreffende artikelnummer in en klik op 'alle productinformatie'
Onderaan de tekst is vervolgens ook de mogelijkheid om alle beschikbare documenten te downloaden.
Question
(Tank capacity [litres]: 400 | Colour: Silver)
Hvad er diameteren på en 600 liters akkumuleringstank.? Er der et sted hvor man kan se diameter/højder på de forskellige tanke.?
Answer OEG:
Lagertanken har en diameter på 1.930 mm inklusive isolering og 790 mm uden isolering.
Du kan finde de forskellige mål på lagertankene enten i brugsanvisningen, i dette tilfælde på side 26, eller i de tekniske data for de enkelte artikler i webshoppen.
De tekniske data kan findes under "Matchende produkter" i fanen "Information".
Question
(Tank capacity [litres]: 400 | Colour: Silver)
Is de isolatie demontabel?
Answer OEG:
Ja, de warmteisolatie is demontabel. Het vat heeft zonder isolatie een diameter van 79 cm en past dus door een gewone kamerdeur.
Question
(Tank capacity [litres]: 400 | Colour: Silver)
Bonjour à vous, Pourrais-je avoir les dimensions du ballon tampon de 500L? Merci à vous.
Answer OEG:
Hauteur totale avec isolation : 2210 mm, Diamètre sans isolation : 1000 mm, Diamètre avec isolation : 1315 mm,
Cote de basculement : 2190 mm
Question
(Tank capacity [litres]: 400 | Colour: Silver)
Is er voorraad 200 liter buffervaten os 300 liter
Answer OEG:
Deze producten hebben momenteel een levertijd van ca. 6 tot 8 weken na opdracht
Question
(Tank capacity [litres]: 400 | Colour: Silver)
Sehr geehrte Damen und Herren Ich finde keine technischen Datenblätter über Speicher bzw. Pufferspeicher so wie Elektrische Warmwasser Boiler
Answer OEG:
Alle vorliegenden Dokumente finden Sie in den Downloads.
Question
(Tank capacity [litres]: 400 | Colour: Silver)
Dimenssion des ballon?
Answer OEG:
Hauteur totale avec isolation : 2210 mm
Diamètre sans isolation: 1000 mm
Diamètre avec isolation: 1315 mm
Cote de basculement : 2190 mm
Voir fiche technique sous la rubrique DOWNLOADS
Question
(Tank capacity [litres]: 400 | Colour: Silver)
Wat zijn de afmetingen van de 200 liter buffervat?
Answer OEG:
Goedemorgen,
De afmetingen vindt u bij het artikel op de website bij de technische gegevens Buffer storage tank for cooling and heating 200 litres In de Installatie- en bedieningsinstructies (deze staan bij downloads) staan op pagina 89 alle aansluitmaten en - hoogtes.
