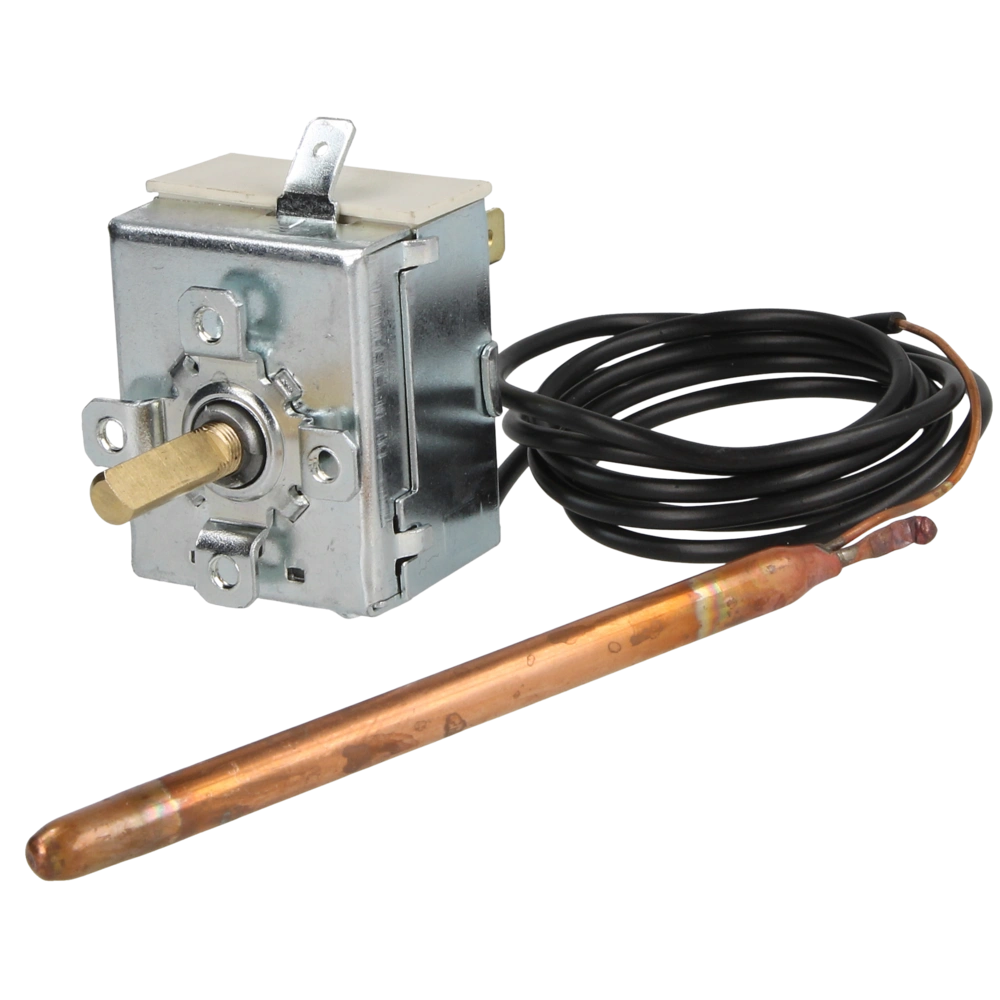

Capillary temperature controller 0 - 90 °C
OEG no.: 211208070
The universal capillary temperature controller with changeover contact provides many application options and can be used for the temperature control of older boiler systems.
The boiler thermostat...
IP00
The universal capillary temperature controller with changeover contact provides many application options and can be used for the temperature control of older boiler systems.
The boiler thermostat has a setpoint axis with a surface for the rotary knob.
For more information see Downloads
| OEG no. | 211208070 |
| Temperature range [°C]: | 0 .. 90 |
| Temperature max. [°C]: | 130 |
| Capillary length [mm]: | 1,000 |
| Sensor length [mm]: | 95 |
| Sensor diameter [mm]: | 6.5 |
| Sensor type: | Cu |
| Switch contact: | Changeover |
| Voltage [V]: | 230 |
| Switching capacity [A]: | 16 |
| Protection type [IP]: |
IP00
|
| Manufacturer | Afriso |
| Weight [kg] | 0.11 |
| Notes |
IP00
|
| Customs tariff number | 90321020 (IT) |
Question (Capillary length [mm]: 1,000)
Kan je deze met axiaal en radiaal aansluiting krijgen?
Answer OEG:
Helaas niet
Question (Capillary length [mm]: 1,000)
Est-il vendu avec un boitier?
Answer OEG:
Il est vendu comme sur la photo de la boutique en ligne.
Question (Capillary length [mm]: 1,000)
Mit wieviel Ampere kann ich den Schalter belasten bei 250 V Spannung?
Answer OEG:
Der Temperaturregler hat die folgenden Kontaktbelastungen:
NC: AC 250 V, 16 (6) A
NO: AC 250 V, 6 (4) A
You have to be logged in to ask a question
03/01/2023, 10:26:21 of: Mr Heaco BV
vervangcomponent
universeel component mag rechtstreeks 220 schakelen
26/11/2021, 13:34:33 of: Mr De bruyn
universeel vervanging
zeer goede universeel vervang toestel
17/11/2021, 22:54:28 of: Mr Heaco
draaiknop meebestellen
vergeet de draaiknop niet mee te bestellen vanwege het meetberiek
16/02/2021, 22:30:09 of: Mr Heaco
werkt perfect
goede vervanging van een thermostaat, zeer gunstige prijs
22/11/2020, 08:36:19 of: Mr Patrick
Fonctionne parfaitement
Pas besoin d'acheter une pièce origine. remplace parfaitement les autres thermostats estampillès d'une marque
24/11/2017, 08:32:02 of: Mr Schulz
sehr gut
sehr gutes Thermostat zu einem extrem günstigen Preis
