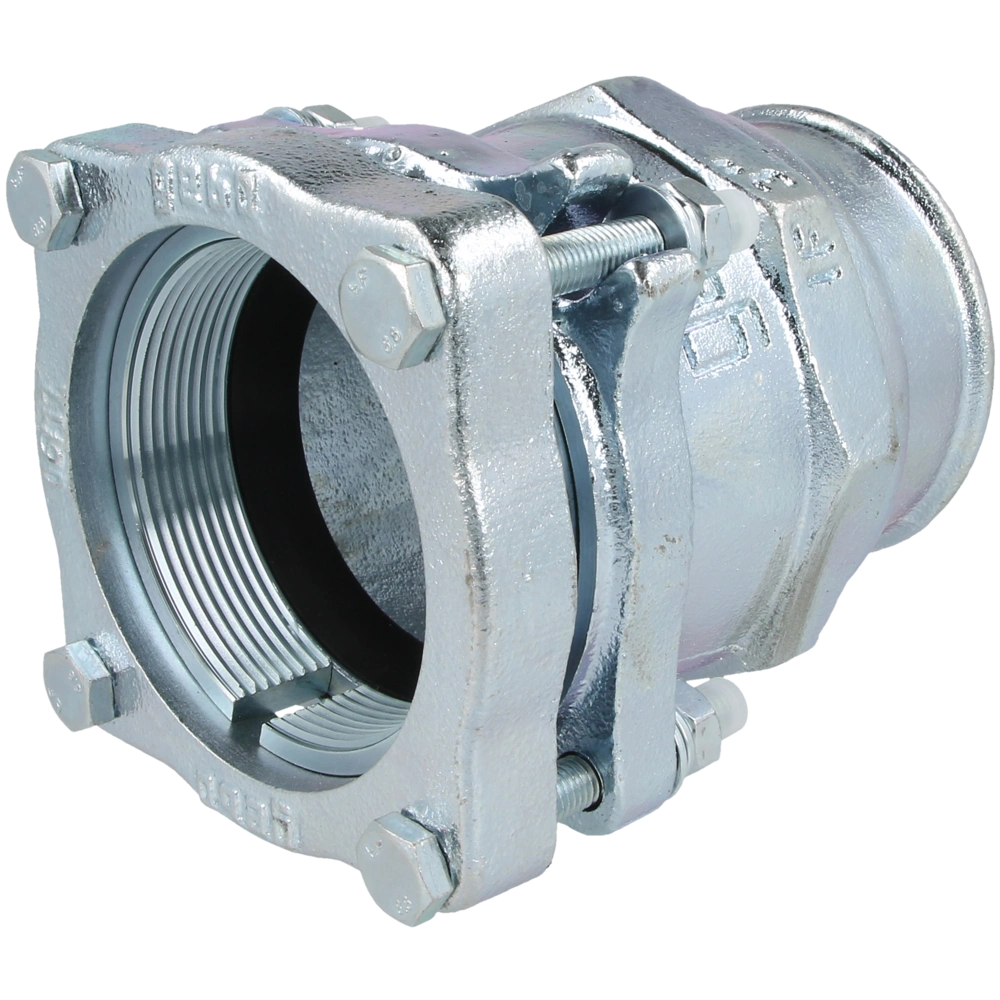

Compression fitting straight connector for steel pipe 2 1/2"
OEG no.: 802011033
Malleable cast-iron compression fitting for easy installation and repair of steel pipes. The compression fitting is force-fitting, both resistant to tensile and shearing strength and can also be used as equipotential bonding.
All product informationRelated products
certified by DVGW
Suitable for drinking water
Malleable cast-iron compression fitting for easy installation and repair of steel pipes. The compression fitting is force-fitting, both resistant to tensile and shearing strength and can also be used as equipotential bonding.
For more information see Downloads
| OEG no. | 802011033 |
| Design: | Straight connector |
| Type of connection: | Flange | Thread |
| Suitable for pipe diameter [mm]: | 76.1 |
| Suitable for pipe diameter [inch]: | 2 1/2 |
| Thread: | 2 1/2" IT |
| Series: | 220 |
| Material: | Malleable cast-iron |
| Suitable for: | Steel pipe |
| Type: | Compression fitting |
| DIN: | EN 10255 |
| Seal: | EPDM |
| Operating temperature max. [°C]: | 90 |
| DVGW certified up to temperature [°C]: | 25 |
| Manufacturer | Gebo |
| EAN | 4019576001775 |
| Weight [kg] | 3.22 |
| Notes |
certified by DVGW
Suitable for drinking water
|
| Customs tariff number | 73071910 (PL) |
Question
beste ik heb een buis zonder schroefdraad met diameter 76mm en wil deze afstoppen meOEG-nr.: 802011033 . Is het mogelijk om dit artikel over een buis te klemmen.
Answer OEG:
De knelkoppeling heeft aan één zijde een inwendig schroefdraad van 2 1/2" anderzijds een klemconnector voor 76,1 mm buis, dus is het mogelijk deze aansluiting hiervoor toe te passen.
