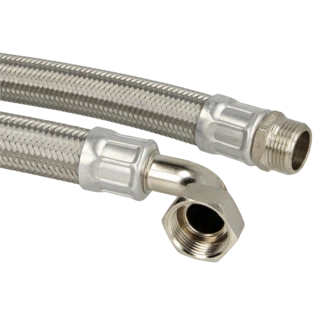

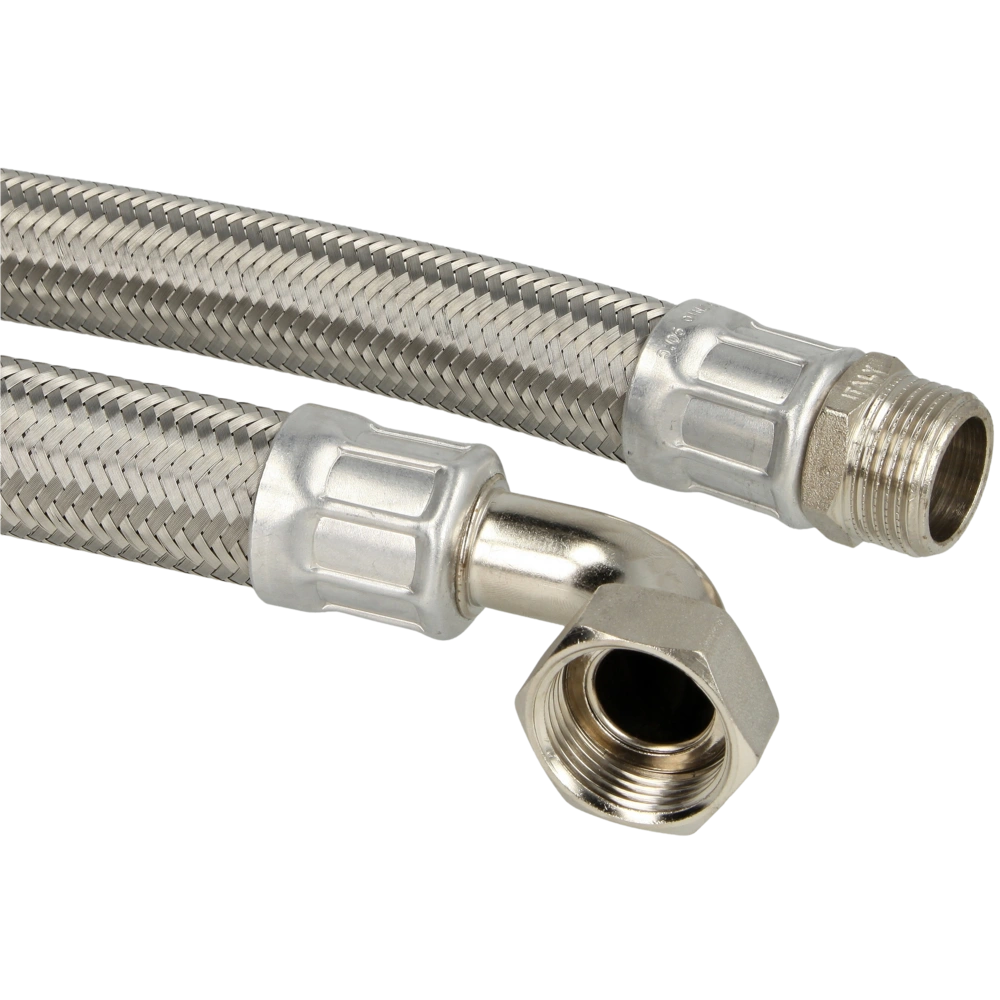

Connecting hose drinking water 1" ET x 1" union nut 90° bend
OEG no.: 805005123
Connecting hose for plumbing and drinking water applications with hygienic plastic hose and durable stainless steel jacket.
The DVGW-approved hose has a 70 °C marking which says that the hygienic...
All product information
certified by DVGW
Suitable for drinking water
Connecting hose for plumbing and drinking water applications with hygienic plastic hose and durable stainless steel jacket.
The DVGW-approved hose has a 70 °C marking which says that the hygienic tests are taken in the hot-water range up to this temperature.
For more information see Downloads
| OEG no. | 805005123 |
| PU | 500 mm |
| Type of connection: | ET|90° bend x IT |
| Connection size: | 1" |
| Length [mm]: | 500 |
| Nominal size [DN]: | 25 |
| Operating temperature [°C]: | -30 .. 70 |
| Operating pressure [bar]: | 10 |
| Bursting pressure [bar]: | 50 |
| Bending radius [mm]: | 64 |
| Weight [kg] | 0.53 |
| Notes |
certified by DVGW
Suitable for drinking water
|
| Customs tariff number | 39173900 (BE) |
Question
(PU: 500 mm)
Bonjour, je souhaiterai sovoir ci la tresse est elle aussi en Inox . Merci . D.VIAL
Answer OEG:
Ce flexible armé est composé d’un tressage en inox pour maintenir la pression et offrir une forte résistance mécanique.La base polymère du revêtement intérieur est en EPDM.
