The OEG double corrugated stainless steel pipe has been specifically developed for the use in solar systems. Together with a sensor cable, it is sheathed by an effective HT insulation...
All product informationRelated products
Made by OEG

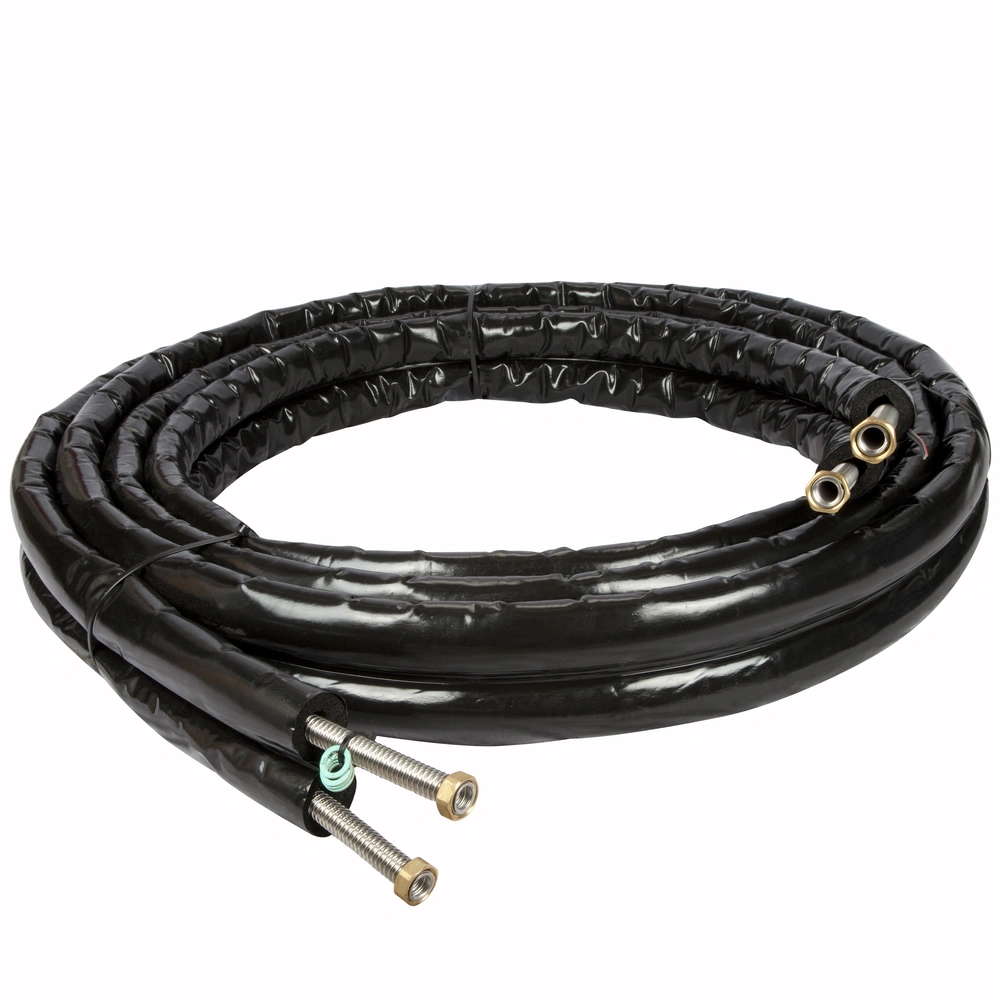

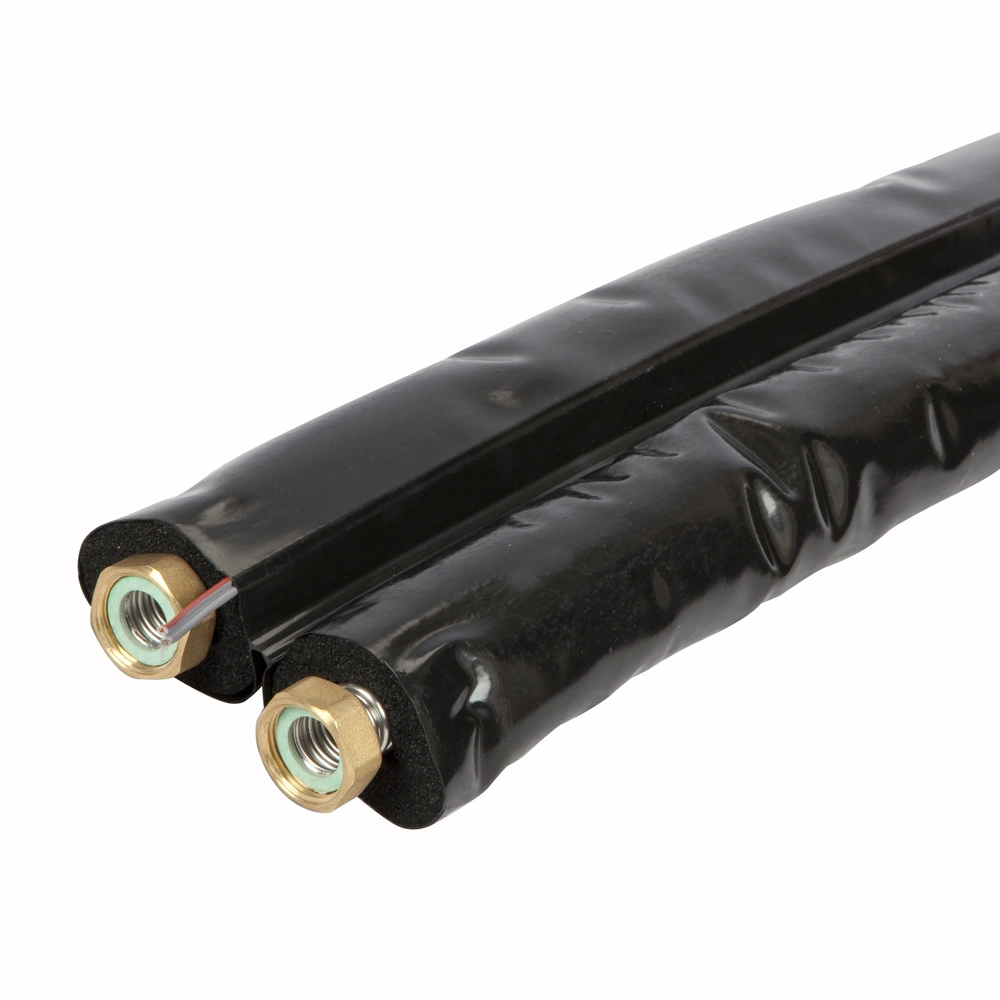

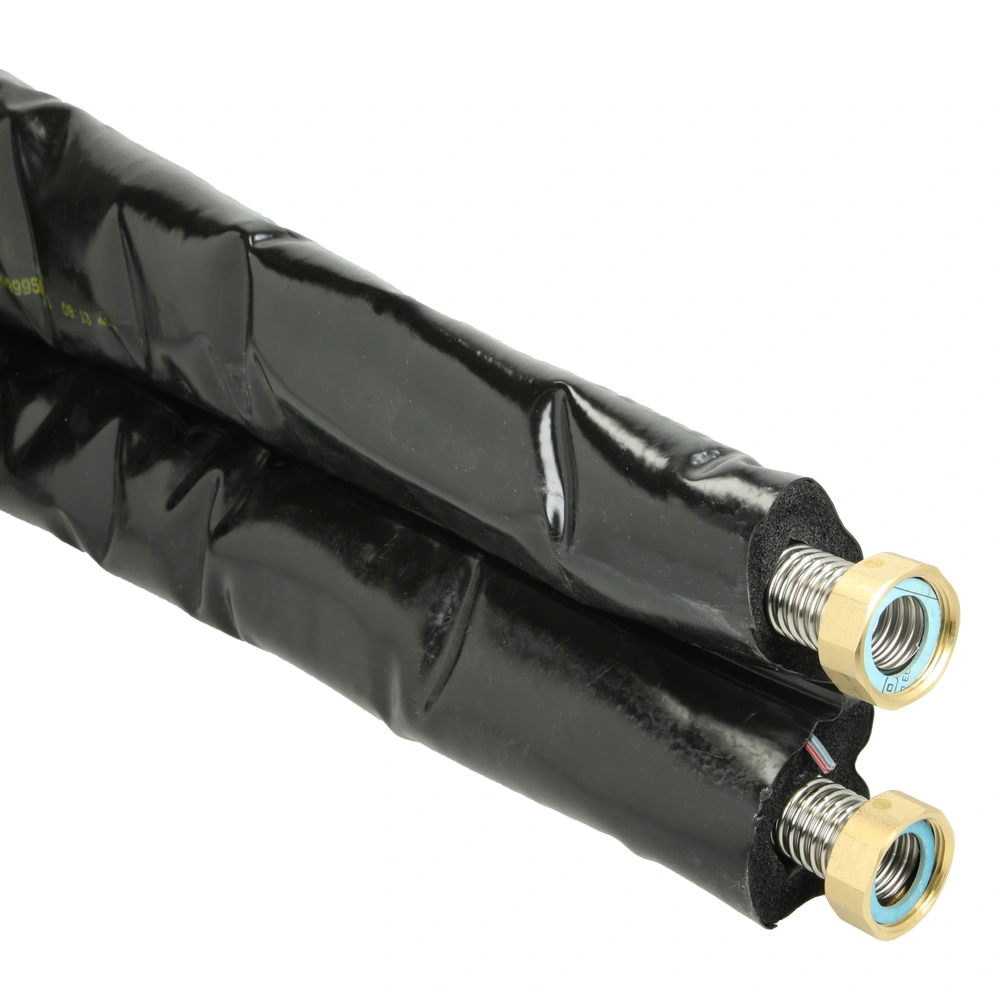

The OEG double corrugated stainless steel pipe has been specifically developed for the use in solar systems. Together with a sensor cable, it is sheathed by an effective HT insulation. Due to the use of high-grade stainless steel (V4A), the corrugated pipe can be used for versatile applications in the private, commercial and industrial sector, subject to applicable regulations.
Advantages of the new insulation:
- robust outer insulating jacket made of multi-layered, waterproof polyethylene (PE)
- high-grade, dimensionally stable and flexible insulation made of waterproof, synthetic rubber
(EPDM), the insulation thickness can also be kept largely constant with bends
- very low water absorption of 5 % of EPDM
- easy and fast processing and laying
- excellent ageing resistance
- low thermal conductivity ( I = 0.045 W/mk)
- temperature resistance permanently up to +150 C (short-term up to +170 C)
- good UV-stability as well as weather and ozone resistance
- high chemical resistance
- good sound reduction
- Fire Protection Class B2
- control cable integrated in the insulation
- twin insulations are joined by a crossbar along the full length and can be separated if required
- valuable appearance
For more information see Downloads
| OEG no. | 516002286 |
| PU | 15 metres |
| Type: | Corrugated tube |
| Type of connection: | union nut |
| Connection size: | 3/4" |
| Materials corrugated pipe: | WKN 1.4404 |
| Material corrugated pipe connection: | MS |
| pmax Corrugated pipe [bar]: | 10 |
| tmax Corrugated pipe [°C]: | 150 |
| Nominal size: | DN16 |
| Thermal conductivity of insulation (at 40°) [W/mk]: | 0,045 |
| Insulation thickness [mm]: | 19 |
| Internal diameter [mm]: | 16 |
| Outer diameter [mm]: | 60 |
| Liquid content [l/m]: | 0,30 |
| Sound insulation: | up to 30dB |
| Manufacturer | OEG |
| Also replaces | 516002282, 516001910, 516001915 |
| Weight [kg] | 13.5 |
| Notes |
Made by OEG
|
| Customs tariff number | 83071000 (EEC) |
You have to be logged in to ask a question
24/06/2017, 12:52:14 of: Mr van Arendstaete
Makkelijk te verwerken.
De buis is makkelijk te verwerken d.w.z. zonder gereedschap te buigen en zo. Inkorten kan met buizensnijder maar is beter met een slijptol omdat dan geen kartels ontstaan die de aansluiting negatief beinvloeden. Koppeling aanzetten is super eenvoudig. Groot nadeel vind ik de hoge prijs van de buis zelf en ook de hoge prijs van de koppelingen. Waar je terdege rekening mee moet houden is dat de buis moeilijk te ontluchten is doordat veel lucht in de "ribbels" achterblijft.
we kunnen ter allen tijden de prijzen controleren, gelieve ons hierover te contacteren. Over het ontluchten, de spiraalbuis altijd oplopend of aflopend installeren zodat er nooit geen lucht kan achterblijven tussen de ribbels.
