High-quality, extendable corrugated stainless steel pipes for the flexible connection of heat pumps, storage tanks, solar thermal systems, boilers and componants in the house and in industrial plants...
All product information Scope of deliveryRelated products

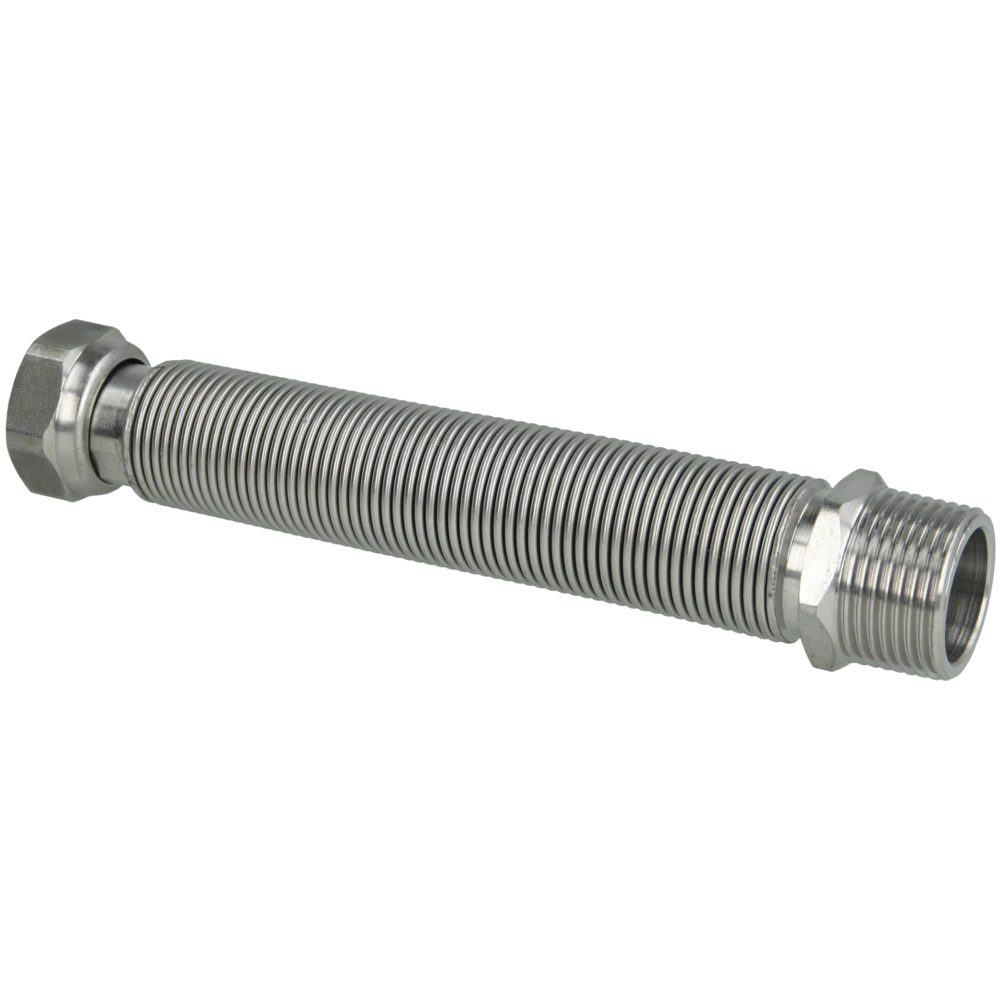

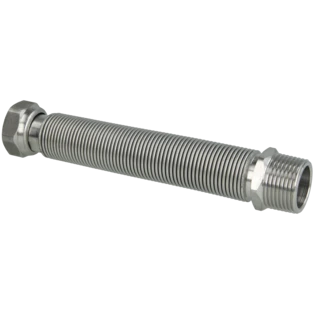

High-quality, extendable corrugated stainless steel pipes for the flexible connection of heat pumps, storage tanks, solar thermal systems, boilers and componants in the house and in industrial plants. The pipes can be extended to their double basic length and are flexible in all directions. They are supplied with a conical male thread and union nut.
| Scope of delivery: | |||
| 1 x | flat seal | ||
For more information see Downloads
| OEG no. | 805005308 |
| Material: | Stainless steel 1.4301 (AISI304) |
| Operating pressure max. [bar]: | 12 |
| Temperature max. [°C]: | 200 |
| Length [mm]: | 200 .. 410 |
| Nominal size [DN]: | 25 |
| Connection size: | 1" IT | 1" ET |
| Weight [kg] | 0.29 |
| Customs tariff number | 83071000 (CN) |
Hello, do you have a datasheet with internal diameter of the different pipes? We need min 25mm opening - is that 1" or 5/4"? Rgs Morten
We have requested the data sheet from our supplier. Once we receive that, the pdf file will be visible under this article code.
You have to be logged in to ask a question
08/03/2019, 08:24:28 of: Mr Dermaux Gino
Goed
Zeer gemakkelijk en goed materiaal.
09/11/2017, 17:34:52 of: Mr Schulz
gut
trotz der hohen Flexibilität sehr stabil
