Folded two-pipe gas meter with high measuring accuracy and safety for commercial buildings. The calibrated measuring insert consists of 2 measuring units connected in parallel...
All product informationRelated products
certified by DVGW
CE

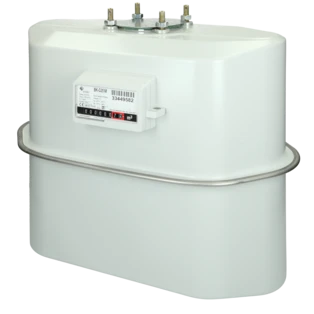

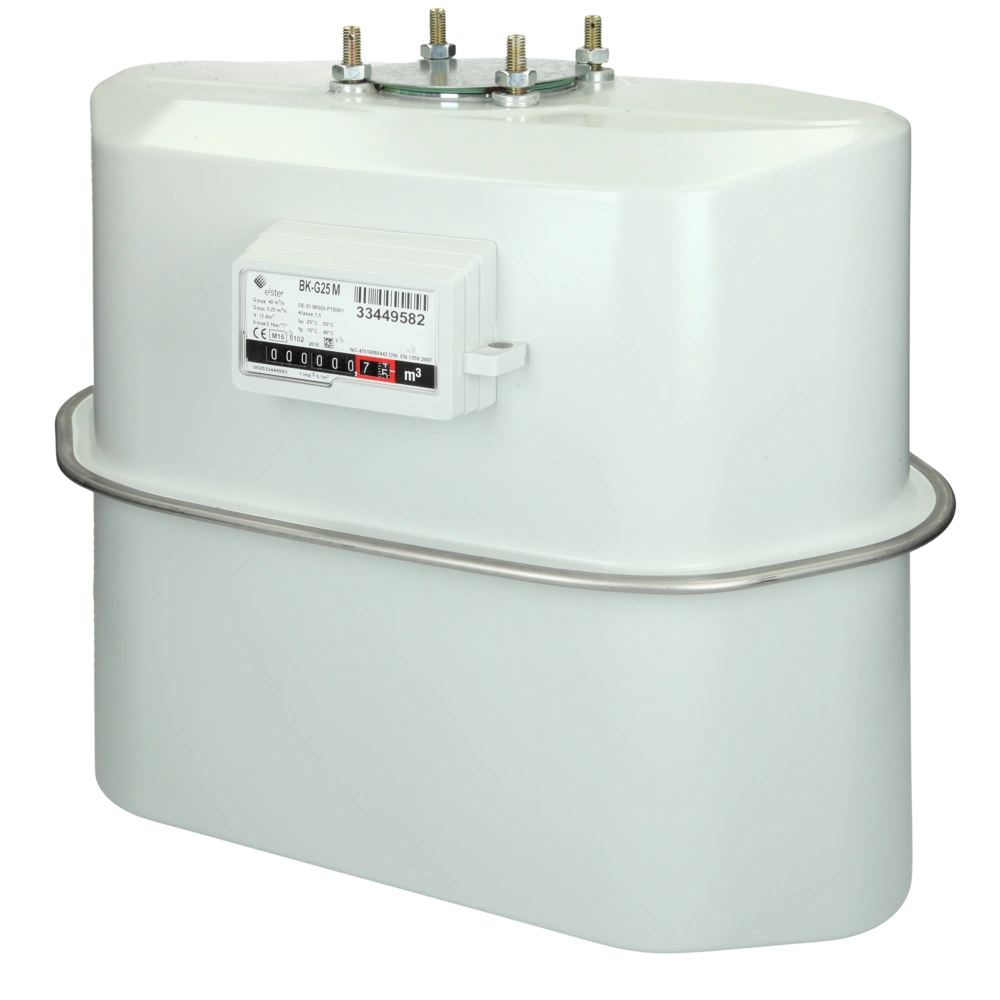

Folded two-pipe gas meter with high measuring accuracy and safety for commercial buildings. The calibrated measuring insert consists of 2 measuring units connected in parallel. They operate on the principle of pneumatic control.
For more information see Downloads
| OEG no. | 135450160 |
| Model: | Single-pipe meter |
| Type: | BK-G25 |
| Volume flow [m³/h]: | 0.25 .. 40 |
| Connection size: | 4 x M10 |
| Nominal flow diameter: | DN50 |
| Media: | Natural gas, Town gas, Propane, Butane, Air, Inert gases |
| Media temperature [°C]: | -10 .. 40 |
| Approval: | MID conformity, PTB |
| Operating pressure max. [bar]: | 0.5 |
| Weight [kg] | 10.88 |
| Notes |
certified by DVGW
CE
|
| Customs tariff number | 90281000 |
