Folded two-pipe gas meter with high measuring accuracy and safety for commercial buildings. The calibrated measuring insert consists of 2 measuring units connected in parallel...
All product informationcertified by DVGW
CE

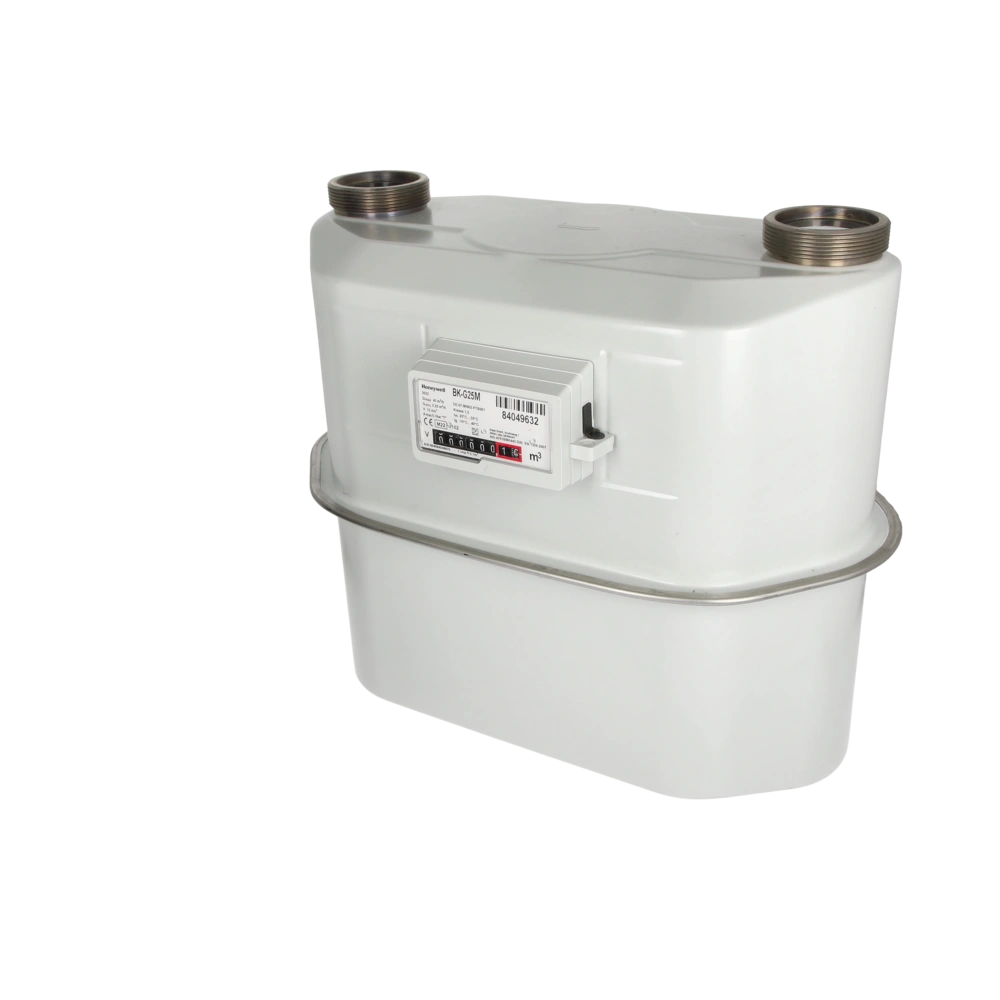

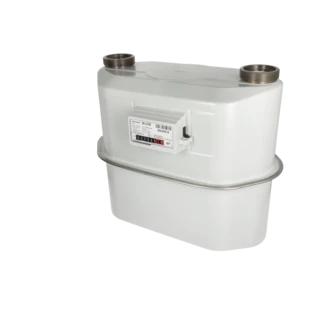

Folded two-pipe gas meter with high measuring accuracy and safety for commercial buildings. The calibrated measuring insert consists of 2 measuring units connected in parallel. They operate on the principle of pneumatic control.
For more information see Downloads
OEG no. | 135450130 |
Model: | Two-pipe meter |
Type: | BK-G25 |
Volume flow [m³/h]: | 0.25 .. 40 |
Connection size: | 2 1/2" ET |
Nominal flow diameter: | DN50 |
Media: | Natural gas, Town gas, Propane, Butane, Air, Inert gases |
Media temperature [°C]: | -10 .. 40 |
Approval: | MID conformity, PTB |
Operating pressure max. [bar]: | 0.5 |
Weight [kg] | 9.8 |
Notes |
certified by DVGW CE |
Customs tariff number | 90281000 |
